PSL396024 - DIN 3PH P/SUPPLY 960W 400-500VAC 24VDC
MPN: PSL396024
Special Price
£681.60
£568.00
Regular Price
£1,136.00
Why Choose the PSL396024?

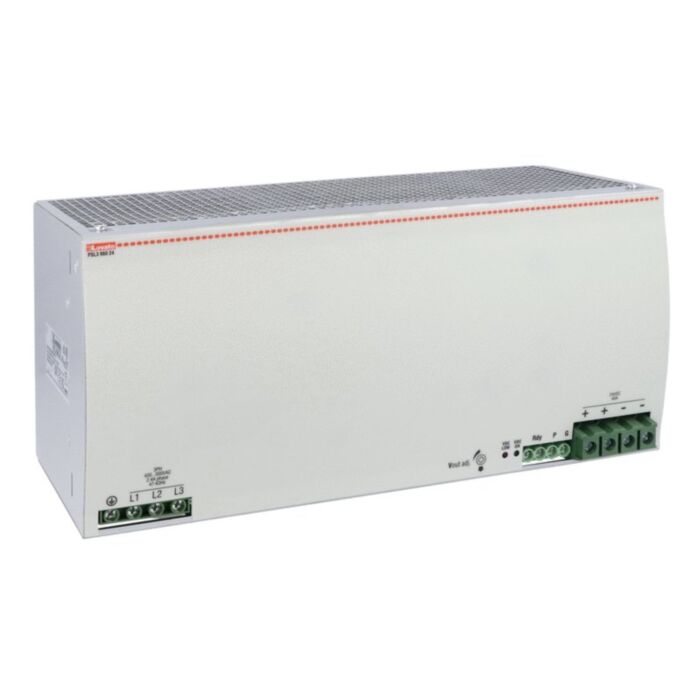

The Lovato PSL396024 three-phase DIN rail switching power supply delivers 24VDC at 40A, providing 960W for industrial loads. Part of the PSL3 range, SKU PSL396024 accepts a multivoltage 400…500 VAC input and is designed for DIN rail mounting. It conforms to IEC/EN/BS 62368-1, 61000-6-2/-6-3, UL 508 and CSA C22.2 n°14 for safety and EMC performance.
Suited to harsh conditions, it operates from -40 to +71 °C and stores from -40 to +85 °C. At 3672 g, the unit is substantial for secure DIN rail installation. The PSL396024 carries Sustainability certification alongside its standards conformity, making it a practical choice wherever a three-phase 400…500 VAC supply must be converted to a 24 VDC bus.
Key Benefits
- 24 VDC rated output delivering 40 A for 960 W loads.
- Three-phase input with multivoltage 400…500 VAC range.
- DIN rail mounting simplifies integration in control panels.
- Wide operating temperature from -40 to +71 °C.
- Robust storage temperature capability: -40 to +85 °C.
- Conforms to IEC/EN/BS and UL/CSA standards for compliance.
- PSL3 product designation for straightforward specification and ordering.
- Sustainability certification supports environmental objectives and policies.
Technical Specification
- Product type designation: PSL3
- Operating temperature: -40 to +71 °C
- Storage temperature: -40 to +85 °C
- Weight: 3672 g
What’s Included
- Lovato PSL396024 switching power supply (PSL3 series)
- DIN rail mounting-ready housing
- Compliance and certification information
Applications
- Industrial control panels requiring a 24 VDC bus from three-phase AC
- Automation and machine-building cabinets
- Process equipment and instrumentation power distribution
- Building services control systems and HVAC panels
Frequently Asked Questions
What is the output of the Lovato PSL396024?
It provides a rated 24 VDC output at 40 A, totalling 960 W.
What input supply does it accept?
A three-phase multivoltage 400…500 VAC AC supply.
Is it suitable for DIN rail mounting?
Yes, it is designed for DIN rail mounting.
What temperatures can it operate and be stored at?
Operating temperature is -40 to +71 °C; storage is -40 to +85 °C.
Which standards does it conform to?
IEC/EN/BS 62368-1, IEC/EN/BS 61000-6-2 and 61000-6-3, UL 508, and CSA C22.2 n°14.
Safety note: Install and commission only by qualified personnel. Isolate the supply before wiring, observe the specified temperature limits, and follow applicable standards and the manufacturer’s documentation.
| Manufacturer Part Number | PSL396024 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 8504318090 |
| Barcode | 8013975180471 |
