PSL100524 - DIN 1PH P/SUPPLY 5W 100-240VAC 24VDC
MPN: PSL100524
Special Price
£63.00
£52.50
Regular Price
£105.00
Why Choose the PSL100524?

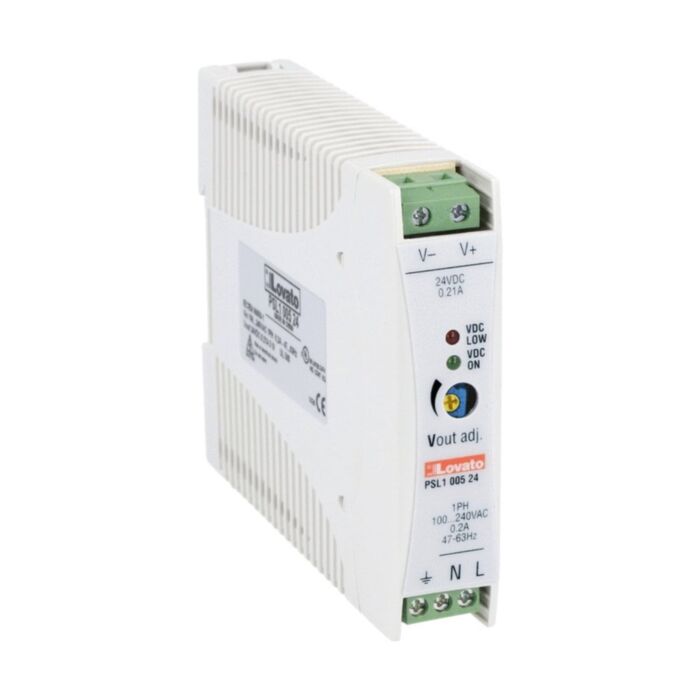

The Lovato PSL100524 is a compact DIN rail switching power supply for single-phase installations. Delivering a 24 VDC, 0.21 A output (5 W), it accepts a multivoltage 100…240 VAC input to suit worldwide panels. Part of the PSL1 range, its 190 g construction fits neatly in control cabinets, powering sensors, relays and instrumentation where dependable low-power 24 V is required.
Designed for reliability across challenging environments, it operates from -20 to +71 °C and stores from -25 to +85 °C. Compliance includes IEC/EN/BS 62368-1, IEC/EN/BS 61000-6-2 and 61000-6-3, plus UL 508 and CSA C22.2 n°14. With straightforward DIN rail mounting and a sustainability certification, integration into industrial, building and OEM equipment is simple.
Key Benefits
- 24 VDC, 0.21 A output delivers 5 W for low-power loads.
- Multivoltage 100–240 VAC single-phase input simplifies global deployment.
- DIN rail mounting speeds installation in compact control panels.
- Wide -20 to +71 °C operating range supports varied environments.
- Conforms to IEC/EN/BS, UL 508 and CSA industrial standards.
- Lightweight 190 g form factor optimises space and panel weight.
- Part of the PSL1 range for consistent specification across projects.
Technical Specification
- Product type designation: PSL1
- Operating temperature: -20 to +71 °C
- Storage temperature: -25 to +85 °C
- Weight: 190 g
What’s Included
- Lovato PSL100524 DIN rail switching power supply
- Basic product documentation
- Manufacturer datasheet (downloadable)
- Compliance and certification information
Applications
- Industrial control panels requiring a 24 VDC, low-power rail
- Building automation devices, sensors and relays
- Instrumentation and measurement equipment
- OEM machinery with single-phase AC supply
- Small automation and signalling circuits
Frequently Asked Questions
What input voltage range does the PSL100524 accept?
It accepts a multivoltage 100 to 240 VAC single-phase input.
What is the DC output rating?
24 VDC at 0.21 A, providing 5 W maximum output power.
Can it be mounted on a DIN rail?
Yes, it is designed for DIN rail mounting in control panels.
What temperatures can it operate in?
The operating range is -20 to +71 °C, with storage -25 to +85 °C.
Which standards does it conform to?
It complies with IEC/EN/BS 62368-1, IEC/EN/BS 61000-6-2/6-3, UL 508 and CSA C22.2 n°14.
Safety note: Install and commission only by qualified personnel. Isolate mains before wiring, verify ratings against the application, and follow relevant standards and local regulations.
| Manufacturer Part Number | PSL100524 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 8504318090 |
| Barcode | 8013975180334 |
