PMV80NA240 - RELE' PROT.RETE 3F/N 208/240V MULTIFUNZ.

Why Choose the PMV80NA240?

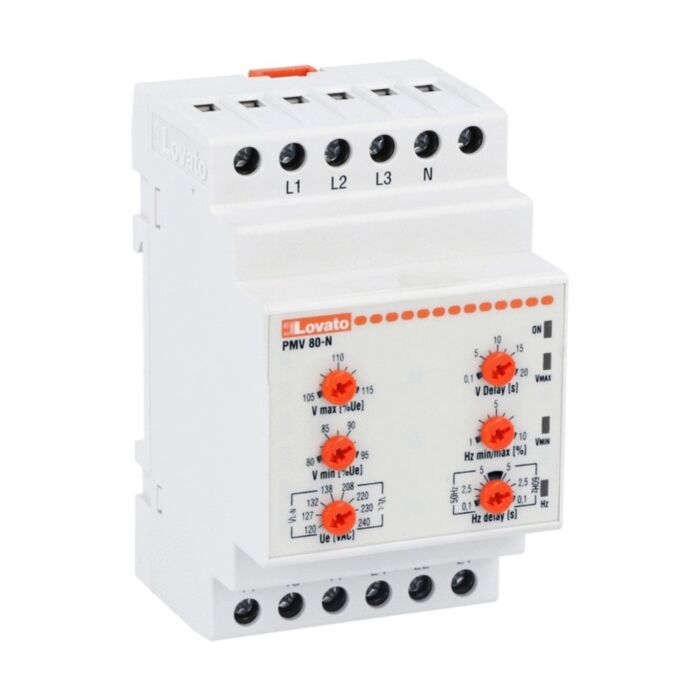

Ensure dependable grid protection with the Lovato PMV80NA240 voltage monitoring relay for three-phase systems. The PMV80NA240 supervises minimum and maximum AC voltage and frequency, and identifies phase loss, neutral loss and incorrect phase sequence to safeguard equipment and processes. Designed for networks operating at 208...240VAC 50/60Hz, it supports installations with or without neutral, providing early fault indication and control integration across industrial and commercial power distribution.

Self powered from the monitored supply, this relay simplifies wiring and commissioning. Two relay outputs offer flexible signalling or tripping, while front potentiometers make set-up quick and precise. Built for resilience with 6 kV impulse withstand, -20 to +60 °C operating range and 8 A Ith, it meets IEC/EN 60255-5, 61000-6-2 and 61000-6-3. A robust choice where reliable voltage and frequency supervision is essential.

Key Benefits

• Comprehensive monitoring of min/max AC voltage and frequency limits.
• Detects phase loss, neutral loss, and incorrect phase sequence.
• Self powered from the monitored 208...240 VAC 50/60 Hz network.
• Two relay outputs enable alarms, interlocks, or shutdown circuits.
• Quick, tool-free adjustments via front-mounted potentiometers.
• Withstands 6 kV impulses; operates from -20 to +60 °C.
• High endurance design with 8 A Ith and 30,000,000 mechanical cycles.

Technical Specification

• Product type designation: PMV80N
• Ith (IEC): 8 A
• Mechanical life: 30000000 cycles
• Terminal tightening torque (max): 0.8 Nm
• Rated impulse withstand voltage Uimp: 6 kV
• Operating temperature: -20 to +60 °C
• Storage temperature: -30 to +80 °C
• Weight: 200 g

What’s Included

• Lovato PMV80NA240 voltage monitoring relay
• Installation and safety instructions
• Product data sheet (digital access)

Applications

• Three-phase installations with or without neutral requiring voltage supervision
• Systems needing phase sequence and phase/neutral loss detection
• Supplies where minimum and maximum frequency and voltage must be controlled
• Control panels using dual relay outputs for alarms or trips

Safety note: Install and commission by qualified personnel only. Isolate the supply before wiring or adjustment, and follow applicable IEC/EN standards and local regulations.
