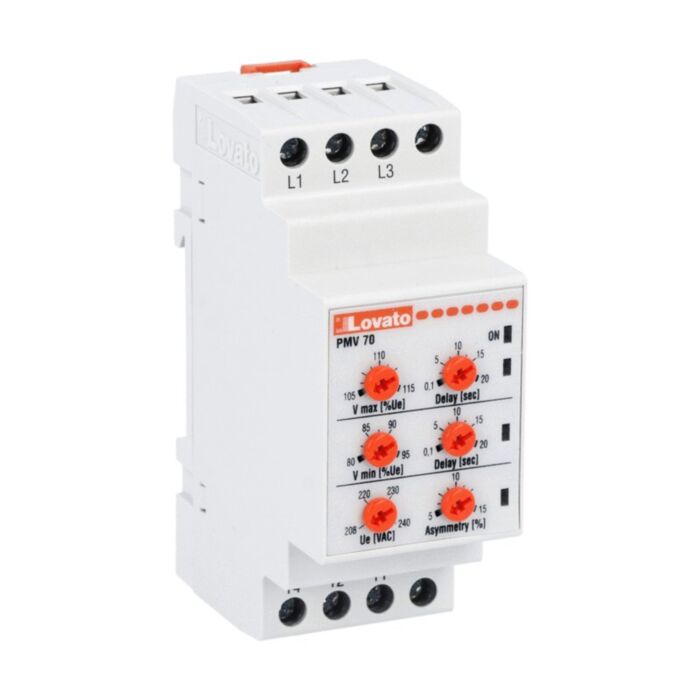

PMV70A600 - 3 PHASE LINE VOLTAGE CONTROL RELAY 600V

Why Choose the PMV70A600?

Lovato PMV70A600 voltage monitoring relays provide reliable protection for three-phase systems without neutral at 600VAC, 50/60Hz. The SKU PMV70A600 monitors minimum and maximum AC voltage and phase asymmetry, and detects phase loss and incorrect phase sequence to help prevent equipment damage. With a self-powered design and a single relay output, this PMV70 series unit offers straightforward control integration for critical plant, panels and machinery.

Engineered for industrial resilience, the PMV70 features potentiometer programming for quick setup, 6 kV impulse withstand, and -20 to +60 °C operating range. A robust 30,000,000-cycle mechanical life, 8 A Ith per IEC, and secure 0.8 Nm terminal tightening add durability and reliability. Conformity with IEC/EN 60255-5, 61000-6-2, 61000-6-3, plus UL 508 and CSA C22.2 n° 14 supports broad compliance requirements.

Key Benefits

• Self-powered design, no separate supply needed for operation.
• Monitors min/max voltage and asymmetry on three-phase systems without neutral.
• Detects phase loss and incorrect phase sequence for motor protection.
• Simple setup via potentiometers for quick on-site commissioning.
• Robust 6 kV impulse withstand for noisy industrial environments.
• Wide -20 to +60 °C operating range ensures reliable performance.
• Long 30,000,000-cycle mechanical life for enduring service.

Technical Specification

• Product type designation: PMV70
• Ith (IEC): 8 A
• Mechanical life: 30000000 cycles
• Terminal tightening torque (max): 0.8 Nm
• Rated impulse withstand voltage Uimp: 6 kV
• Operating temperature: -20 to +60 °C
• Storage temperature: -30 to +80 °C
• Weight: 130 g

What’s Included

• PMV70A600 voltage monitoring relay unit
• Installation and safety instructions
• Product datasheet (downloadable)

Applications

• Three-phase industrial machinery and control panels without neutral
• Motor circuits requiring phase loss and sequence monitoring
• Power distribution boards needing over/under voltage protection
• HVAC plant and pumping systems on three-phase supplies
• General industrial equipment requiring voltage and asymmetry monitoring

Safety note: Install and commission only by qualified personnel. Always isolate the supply before wiring or adjustment and observe the specified 0.8 Nm terminal torque and relevant standards.
