PMV70A575 - 3 PHASE LINE VOLTAGE CONTROL RELAY PMV70

Why Choose the PMV70A575?

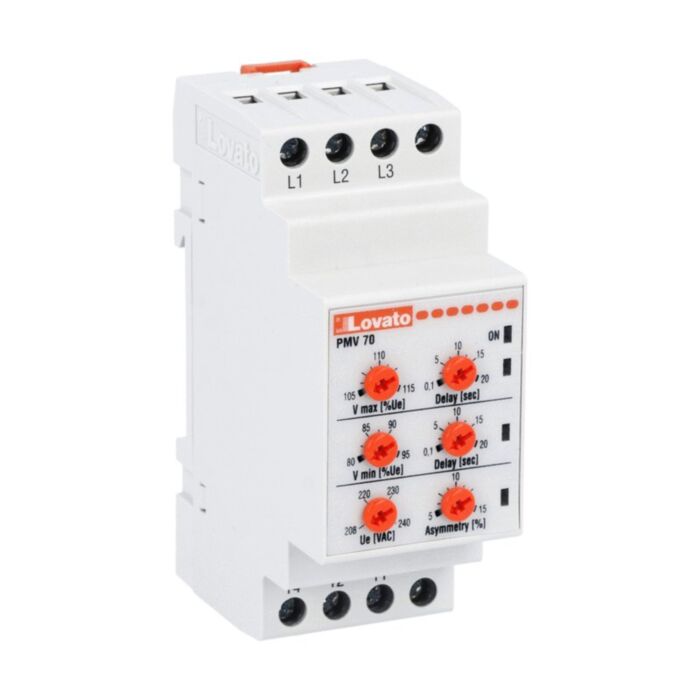

Ensure safe, reliable mains control in demanding three‑phase installations with the Lovato PMV70A575 voltage monitoring relay. The PMV70A575 monitors 380…575VAC (50/60Hz) systems without neutral, detecting minimum and maximum voltage, asymmetry, phase loss and incorrect phase sequence. With self‑powered operation and a single relay output, it provides straightforward protection signalling for panels and machinery requiring dependable supply condition supervision.

Setpoints and behaviour are configured via potentiometers for quick commissioning and repeatable results. Built for industrial environments, it features 8 A Ith, 6 kV impulse withstand and a -20 to +60 °C operating range, with 30,000,000 mechanical cycles. Compliance with IEC/EN 60255-5, IEC/EN 61000-6-2/-6-3, UL 508 and CSA C22.2 n° 14 supports use across regulated applications.

Key Benefits

• Monitors three‑phase systems without neutral, 380…575VAC 50/60Hz.
• Detects minimum/maximum voltage, asymmetry, phase loss and incorrect sequence.
• Self‑powered design simplifies wiring and panel integration.
• Potentiometer programming enables quick, repeatable commissioning.
• Robust insulation with 6 kV impulse withstand voltage.
• High endurance with 30,000,000 mechanical life cycles.
• Reliable operation with 8 A thermal current (Ith).
• Conforms to IEC/EN, UL and CSA standards for industry use.

Technical Specification

• Product type designation: PMV70
• Ith (IEC): 8 A
• Mechanical life: 30000000 cycles
• Terminal tightening torque (max): 0.8 Nm
• Rated impulse withstand voltage Uimp: 6 kV
• Operating temperature: -20 to +60 °C
• Storage temperature: -30 to +80 °C
• Weight: 130 g

What’s Included

• Lovato PMV70A575 voltage monitoring relay
• Potentiometer and wiring instructions
• Manufacturer datasheet

Applications

• Three‑phase distribution systems without neutral requiring voltage supervision
• Control panels needing phase loss and incorrect sequence protection
• Equipment needing min/max voltage and asymmetry monitoring on 380–575VAC
• OEM machinery operating on 50/60Hz within the specified range

Safety note: Installation and adjustments must be performed by a qualified person with power isolated; observe the 380…575VAC range, correct phase sequence, and all applicable standards before energising.
