PMV70A240 - 3 PHASE LINE VOLTAGE CONTROL RELAY PMV70

Why Choose the PMV70A240?

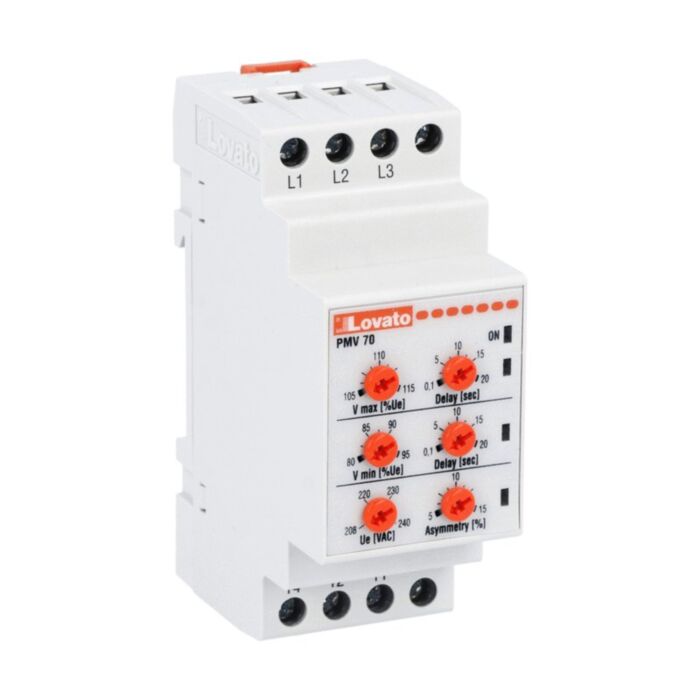

Lovato PMV70A240 is a voltage monitoring relay for three‑phase systems without neutral, safeguarding equipment on 208…240VAC 50/60Hz supplies. It supervises minimum and maximum AC voltage and asymmetry, and detects phase loss and incorrect phase sequence. With self powered operation and one relay output, it delivers dependable protection across industrial panels. Setup is straightforward via potentiometers for on-site adjustment.

Engineered to perform in demanding environments, the PMV70 series device offers Ith (IEC) 8 A, rated impulse withstand Uimp 6 kV and a wide operating temperature from −20 to +60 °C. It complies with IEC/EN 60255-5, 61000-6-2, 61000-6-3 and carries UL 508 and CSA C22.2 n° 14 references, with sustainability certification. Product type designation: PMV70; weight 130 g; maximum terminal tightening torque 0.8 Nm.

Key Benefits

• Monitors minimum/maximum AC voltage and asymmetry for reliable supply supervision.
• Detects phase loss and incorrect phase sequence to protect three‑phase loads.
• Self powered design for 208…240VAC 50/60Hz networks without neutral.
• Simple on‑site setup using potentiometers; integrates with one relay output.
• High endurance with 30,000,000 mechanical life cycles.
• Strong surge immunity with 6 kV rated impulse withstand voltage.
• Wide −20 to +60 °C operating range for varied installations.

Technical Specification

• Product type designation: PMV70
• Ith (IEC): 8 A
• Mechanical life: 30000000 cycles
• Terminal tightening torque (max): 0.8 Nm
• Rated impulse withstand voltage Uimp: 6 kV
• Operating temperature: -20 to +60 °C
• Storage temperature: -30 to +80 °C
• Weight: 130 g

What’s Included

• Lovato PMV70A240 voltage monitoring relay
• Product instruction leaflet
• Compliance and safety information
• Protective packaging for transport

Applications

• Protecting three‑phase motors, pumps and compressors from voltage faults.
• Monitoring supply quality in OEM control panels and machinery.
• Safeguarding conveyors, fans and HVAC plant against phase loss/sequence errors.
• Supervising generator or mains feeds at 208–240VAC.
• Industrial process equipment requiring voltage and phase supervision.

Safety note: Install and commission by a qualified electrician. Isolate power before wiring, observe specified torque and environmental limits, and follow applicable standards and instructions.
