PMV50NA600 - PROTECTION RELAY 3P+N 480/600V MULTIFUNCTION

Why Choose the PMV50NA600?

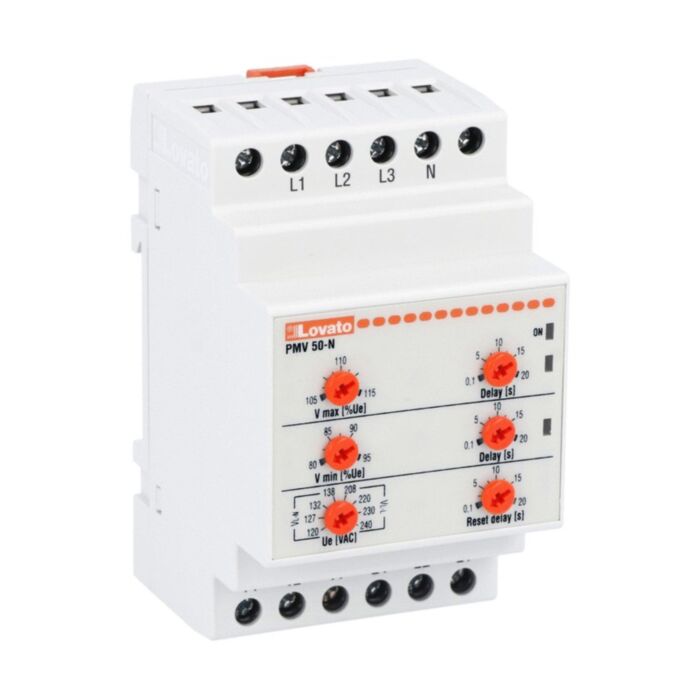

Lovato PMV50NA600 voltage monitoring relay safeguards three‑phase systems with or without neutral, ensuring dependable supervision across 480 to 600 VAC at 50/60 Hz. It monitors minimum and maximum AC voltage and detects phase loss, neutral loss and incorrect phase sequence to help protect downstream equipment. Self powered with two relay outputs, the PMV50NA600 delivers reliable signalling and control for panels that need accurate voltage and phase condition monitoring.

Setpoints are easily adjusted via potentiometers, streamlining commissioning and maintenance. Built on the PMV50N designation, it offers Ith 8 A, 6 kV impulse withstand, and a −20 to +60 °C operating range, with a mechanical life of 30,000,000 cycles. Conformity with IEC/EN 60255-5, 61000-6-2 and 61000-6-3 underpins performance in industrial environments while the compact 200 g design supports straightforward panel integration.

Key Benefits

• Monitors minimum and maximum AC voltage on three‑phase systems.
• Detects phase loss, neutral loss and incorrect phase sequence.
• Operates across 480–600 VAC at 50/60 Hz.
• Self powered design; no external auxiliary supply required.
• Two relay outputs for flexible alarm or control signalling.
• Simple set-up and adjustment using potentiometers.
• High 6 kV impulse withstand for robust insulation.
• Wide −20 to +60 °C operating temperature range.

Technical Specification

• Product type designation: PMV50N
• Ith (IEC): 8 A
• Mechanical life: 30000000 cycles
• Terminal tightening torque (max): 0.8 Nm
• Rated impulse withstand voltage Uimp: 6 kV
• Operating temperature: -20 to +60 °C
• Storage temperature: -30 to +80 °C
• Weight: 200 g

What’s Included

• Lovato PMV50NA600 voltage monitoring relay
• User instructions

Applications

• Three-phase electrical systems requiring voltage supervision
• Control panels monitoring phase sequence and loss conditions
• Equipment protection against under/overvoltage in 480–600 VAC networks
• Installations with or without neutral in three-phase supplies

Safety note: Install and commission by qualified personnel only. Isolate power before wiring, tighten terminals to 0.8 Nm, and observe applicable IEC/EN standards.
