PMV50NA240 - PROTECTION RELAY 3P+N 208/240V MULTIFUNCTION

Why Choose the PMV50NA240?

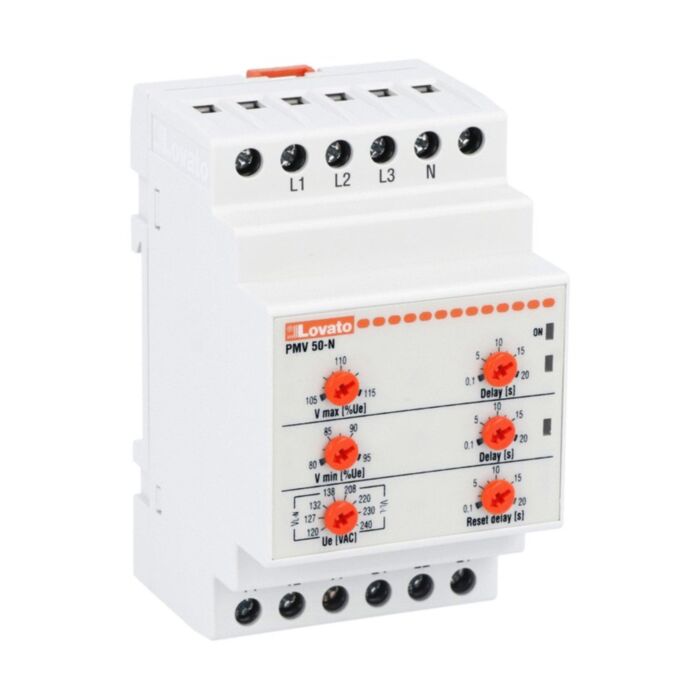

Ensure reliable mains supervision with the Lovato PMV50NA240 voltage monitoring relay. Designed for three-phase systems with or without neutral, it safeguards equipment against minimum and maximum AC voltage issues, phase loss, neutral loss and incorrect phase sequence. The PMV50NA240 is self powered and offers two relay outputs for flexible signalling or control, making it a dependable choice for industrial panels and building services where uptime and protection matter.

Installation and configuration are straightforward using on-unit potentiometers, while a mechanical life of 30,000,000 cycles and a 6 kV impulse withstand support harsh environments. Operating from -20 to +60 °C and conforming to IEC/EN 60255-5, 61000-6-2 and 61000-6-3, this relay integrates smoothly into control panels. Rated at 8 A Ith and 208...240VAC 50/60Hz, it delivers consistent protection across varied applications.

Key Benefits

• Monitors min/max AC voltage on three-phase systems with/without neutral.
• Detects phase loss, neutral loss and incorrect phase sequence.
• Self powered design simplifies installation and panel integration.
• Two relay outputs provide flexible signalling and control options.
• Potentiometer set-up enables quick, intuitive configuration.
• Withstands 6 kV impulse; robust operation from -20 to +60 °C.
• Long mechanical life rated at 30,000,000 cycles for reliability.

Technical Specification

• Product type designation: PMV50N
• Ith (IEC): 8 A
• Mechanical life: 30000000 cycles
• Terminal tightening torque (max): 0.8 Nm
• Rated impulse withstand voltage Uimp: 6 kV
• Operating temperature: -20 to +60 °C
• Storage temperature: -30 to +80 °C
• Weight: 200 g

What’s Included

• Lovato PMV50NA240 voltage monitoring relay
• Installation and operation instructions
• User documentation (specifications and safety information)

Applications

• Industrial motor protection and control panels
• Pumps, compressors and HVAC plant monitoring
• Generator sets and backup power distribution
• Building services and facilities electrical distribution

Safety note: Install and commission only by qualified personnel. Isolate all power before wiring and follow applicable standards and the manufacturer’s instructions.
