PMV50A600 - 3PH SYSTEM MULTI PROTECTION RELAY 600V

Why Choose the PMV50A600?

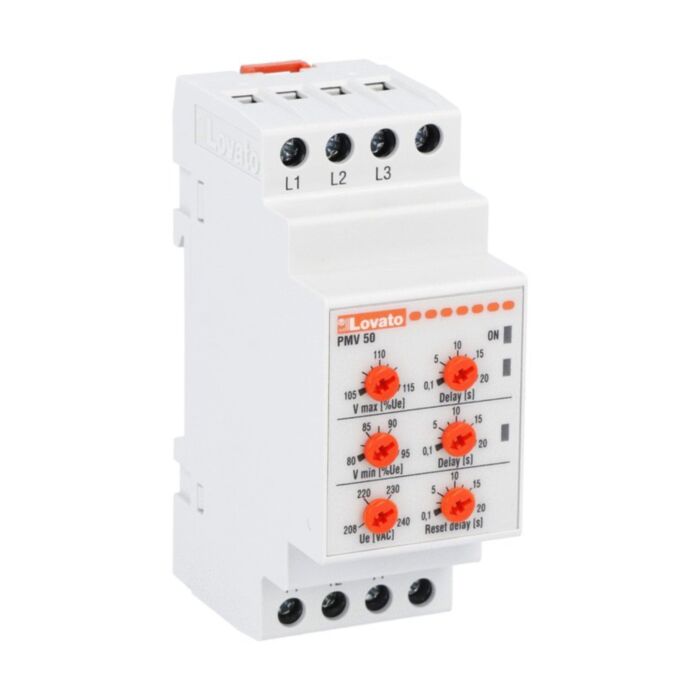

The Lovato PMV50A600 voltage monitoring relay safeguards three-phase systems without neutral by supervising minimum and maximum AC voltage, phase loss and incorrect phase sequence. Self powered and rated for 600VAC at 50/60Hz, this unit provides a single relay output and simple setup via potentiometers. SKU PMV50A600 delivers reliable protection across demanding industrial and commercial installations.

Engineered for longevity, the PMV50 features 8 A Ith (IEC) contacts and a mechanical life of 30,000,000 cycles, with 6 kV impulse withstand for harsh environments. Operating from -20 to +60 °C and weighing 130 g, it installs securely with 0.8 Nm terminal torque. Conforms to IEC/EN 60255-5, 61000-6-2, 61000-6-3, UL 508 and CSA C22.2 n° 14, supporting rigorous UK and global panel standards.

Key Benefits

• Monitors under- and overvoltage on three-phase systems without neutral.
• Detects phase loss and incorrect phase sequence reliably.
• Self powered operation simplifies wiring and panel integration.
• 600VAC, 50/60Hz suitability for diverse installations.
• Single relay output for straightforward control signalling.
• Potentiometer-based adjustment for fast, precise setup.
• 6 kV impulse withstand; -20 to +60 °C operating range.

Technical Specification

• Product type designation: PMV50
• Ith (IEC): 8 A
• Mechanical life: 30000000 cycles
• Terminal tightening torque (max): 0.8 Nm
• Rated impulse withstand voltage Uimp: 6 kV
• Operating temperature: -20 to +60 °C
• Storage temperature: -30 to +80 °C
• Weight: 130 g

What’s Included

• Lovato PMV50A600 voltage monitoring relay
• User/installation instructions
• Manufacturer’s datasheet (downloadable)
• Protective packaging

Applications

• Protecting three-phase motors from phase loss and wrong sequence
• Supervising mains voltage in industrial control panels
• Monitoring feeders in switchboards without neutral
• Safeguarding pumps, fans and compressors against over/undervoltage
• General OEM machinery requiring 600VAC voltage supervision

Safety note: Installation and adjustment must be performed by a qualified person. Isolate the supply before wiring and follow the manufacturer’s instructions and applicable IEC/EN, UL and CSA standards.
