PMV40A600 - 3PH SYSTEM PROT. RELAY 600VMULTIFUNCTION

Why Choose the PMV40A600?

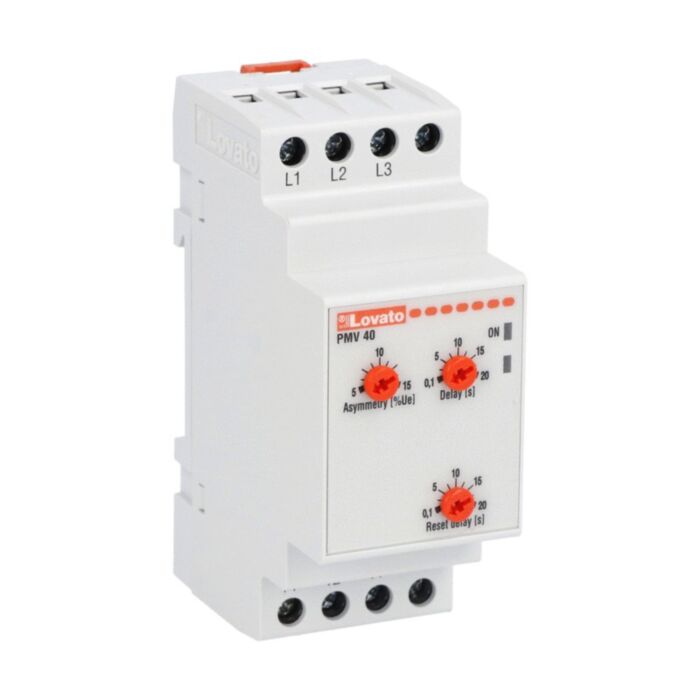

The Lovato PMV40A600 is a voltage monitoring relay designed for three-phase systems without neutral. It monitors asymmetry, phase loss and incorrect phase sequence on 600 VAC, 50/60 Hz networks. With a self powered supply and a single relay output, this PMV40 designation device delivers dependable protection and signalling. Programming is via front potentiometers for straightforward on-device adjustment.

Built for reliability, the PMV40 designation offers Ith (IEC) 8 A and a rated impulse withstand voltage of 6 kV. It operates from -20 to +60 °C and has a mechanical life of 30,000,000 cycles. Conformance to IEC/EN 60255-5, IEC/EN 61000-6-2, IEC/EN 61000-6-3, UL 508 and CSA C22.2 n° 14 supports use in compliance-led installations.

Key Benefits

• Detects asymmetry, phase loss and incorrect phase sequence.
• Suitable for three-phase systems without neutral at 600 VAC, 50/60 Hz.
• Self powered rated supply voltage; no separate supply specified.
• Single relay output (1) for control interfacing.
• On-device adjustment via potentiometers for straightforward setup.
• High impulse withstand voltage Uimp 6 kV enhances electrical robustness.
• Wide operating temperature range from -20 to +60 °C.
• Long mechanical life of 30,000,000 cycles.

Technical Specification

• Product type designation: PMV40
• Ith (IEC): 8 A
• Mechanical life: 30000000 cycles
• Terminal tightening torque (max): 0.8 Nm
• Rated impulse withstand voltage Uimp: 6 kV
• Operating temperature: -20 to +60 °C
• Storage temperature: -30 to +80 °C
• Weight: 130 g

What’s Included

• Lovato PMV40A600 voltage monitoring relay
• Printed installation instructions
• Safety and compliance information

Applications

• Three-phase installations without neutral requiring voltage condition monitoring
• Plant equipment needing phase loss and sequence monitoring at 600 VAC
• Panels and systems where self powered monitoring relays are preferred
• Compliance-led projects referencing IEC/EN, UL and CSA standards
• Processes needing adjustment via potentiometers for onsite setup

Safety note: Install and commission by qualified personnel. Isolate power before wiring. Observe the 600 VAC system rating and the specified tightening torque. Operate within -20 to +60 °C and follow applicable standards.
