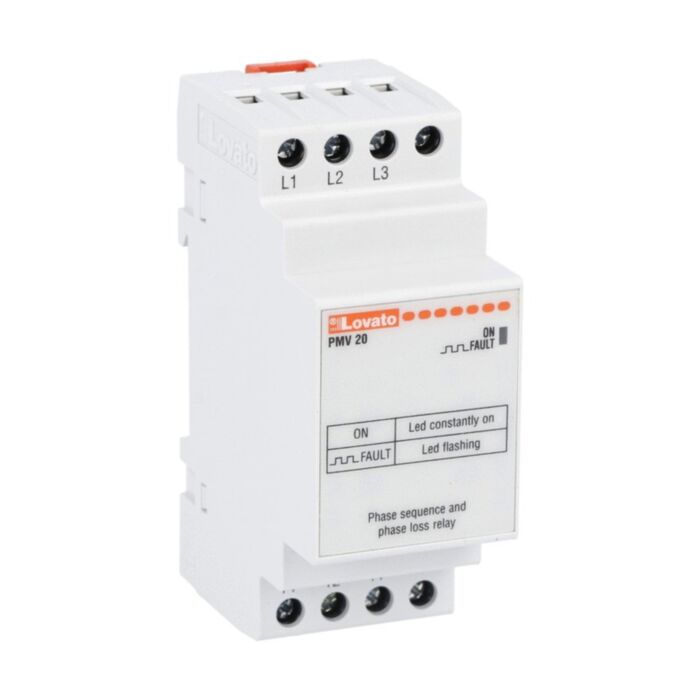

PMV20A600 - PHASE SEQUENCE/PHASE LOSS MODULAR RELAY

Why Choose the PMV20A600?

Lovato’s PMV20A600 voltage monitoring relay safeguards three-phase systems without neutral, detecting phase loss and incorrect phase sequence to prevent equipment damage. Self powered from the monitored supply, it supervises 380–600 VAC at 50/60 Hz with a single relay output for straightforward integration. As part of the PMV20 range, it delivers reliable protection for panels and OEM builds.

Engineered for demanding environments, the PMV20A600 offers 6 kV impulse withstand (Uimp), 8 A Ith, and a mechanical life of 3,000,000 cycles. It operates from -20 to +60 °C and meets IEC/EN 60255-5, IEC/EN 61000-6-2/-6-3, UL 508 and CSA C22.2 n° 14. A compact, lightweight 120 g design and secure 0.8 Nm terminals support dependable installation.

Key Benefits

• Self powered from monitored supply; no external supply needed.
• Detects phase loss and incorrect phase sequence for equipment protection.
• Suited to three-phase systems without neutral at 380–600 VAC.
• High impulse withstand 6 kV for robust performance.
• Long mechanical life of 3,000,000 cycles reduces maintenance.
• Wide operating temperature -20 to +60 °C for varied environments.
• Complies with IEC/EN, UL 508 and CSA for global acceptance.
• Single relay output simplifies integration into control circuits.

Technical Specification

• Product type designation: PMV20
• Ith (IEC): 8 A
• Mechanical life: 3000000 cycles
• Terminal tightening torque (max): 0.8 Nm
• Rated impulse withstand voltage Uimp: 6 kV
• Operating temperature: -20 to +60 °C
• Storage temperature: -30 to +80 °C
• Weight: 120 g

What’s Included

• Lovato PMV20A600 voltage monitoring relay
• Quick start installation leaflet
• Compliance and safety information

Applications

• Three-phase machinery without neutral requiring phase sequence monitoring
• Motor protection against phase loss in industrial control panels
• OEM equipment operating at 380–600 VAC, 50/60 Hz
• Installations needing self powered voltage supervision and standards compliance

Safety note: Install and commission by qualified personnel. Isolate power before wiring, tighten terminals to a maximum of 0.8 Nm, and operate within 380–600 VAC and -20 to +60 °C limits.
