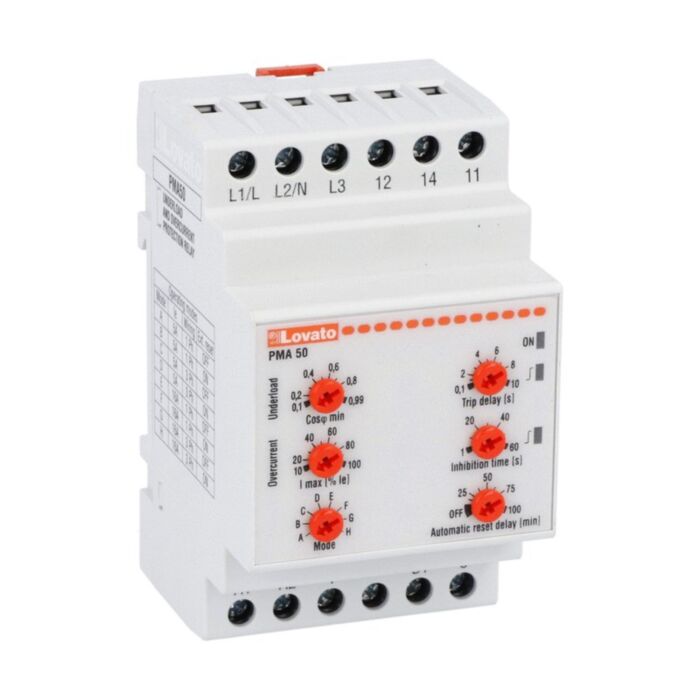

PMA50A240 - PUMP PROTECTION RELAY 220-240VAC
MPN: PMA50A240
Special Price
£204.24
£170.20
Regular Price
£340.40
Why Choose the PMA50A240?
The Lovato PMA50A240 pump protection relay safeguards single-phase and three-phase installations by supervising maximum AC current and minimum COSΦ, and by detecting phase loss or incorrect phase sequence. Operating from 220…240VAC with one relay output, it offers rated current Ie options of 5 A or 16 A. Simple configuration via potentiometers makes setup straightforward for panel builders and maintenance teams.
Designed to the PMA50 platform, this relay combines durability and electrical robustness, with 6 kV impulse withstand and a mechanical life of 30,000,000 cycles. It operates reliably from -20 to +60 °C and accepts secure terminations up to 0.8 Nm. Conformity includes IEC/EN 60255-5, 61000-6-2, 61000-6-3, UL 508 and CSA C22.2 n° 14, supporting wide-ranging control panel requirements.
Key Benefits
- Protects single and three-phase pumps against phase loss and incorrect sequence.
- Monitors maximum AC current and minimum COSΦ thresholds for reliable operation.
- Simple configuration via potentiometers for quick commissioning.
- Operates on 220...240VAC supply for straightforward integration.
- Rated current Ie options: 5 A or 16 A for flexibility.
- High impulse withstand voltage 6 kV enhances electrical robustness.
- Wide operating temperature range -20 to +60 °C for dependable service.
Technical Specification
- Product type designation: PMA50
- Ith (IEC): 8 A
- Mechanical life: 30000000 cycles
- Terminal tightening torque (max): 0.8 Nm
- Rated impulse withstand voltage Uimp: 6 kV
- Operating temperature: -20 to +60 °C
- Storage temperature: -30 to +80 °C
- Weight: 251 g
What’s Included
- Lovato PMA50A240 pump protection relay unit
- Installation and safety instructions
Applications
- Single-phase pump installations requiring protection monitoring
- Three-phase pump systems with phase loss and sequence supervision
- Control panels needing maximum current and minimum COSΦ monitoring
- General pump protection in 220...240VAC environments
Frequently Asked Questions
What systems is the PMA50A240 suitable for?
It is designed for both single-phase and three-phase systems.
What is the rated supply voltage?
The rated supply voltage is 220...240VAC.
How are settings adjusted on this relay?
Settings are configured using potentiometers.
What current ratings does it support?
Rated current Ie options are 5 A or 16 A.
Which protections does it provide?
It monitors maximum AC current and minimum COSΦ, and detects phase loss and incorrect sequence.
Safety note: Install and commission only when de-energised and by qualified personnel, following the provided instructions and applicable standards.
| Manufacturer Part Number | PMA50A240 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85364900 |
| Barcode | 8013975172841 |
