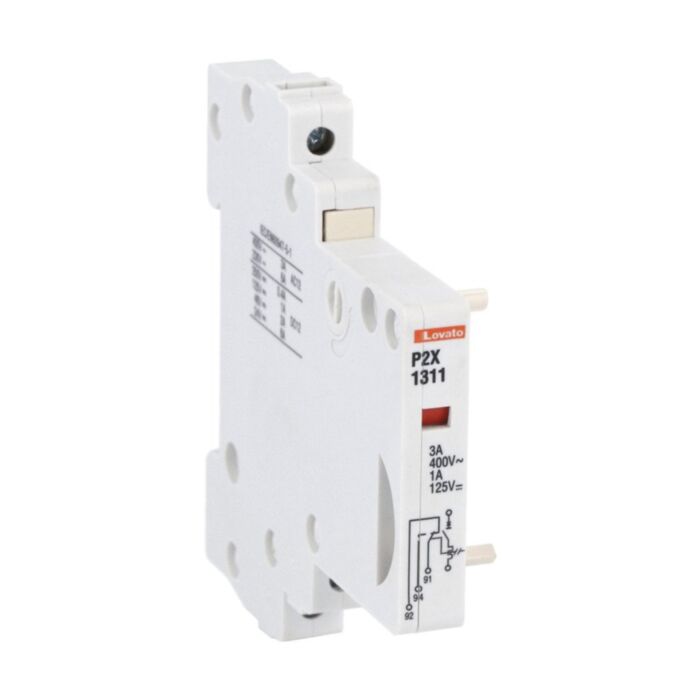

P2X1311 - AUXILIARY CONTACT 1NO + 1NC
MPN: P2X1311
Special Price
£28.48
£23.73
Regular Price
£47.46
Why Choose the P2X1311?
The Lovato P2X1311 indicator contact is a side-mount accessory designed for clear status signalling on compatible devices. With 1 changeover (1 C/O) contact and a compact 0.5 DIN-module footprint, it fits neatly in crowded panels. Rated at 6 A and engineered to IEC/EN/BS 60947-5-1, the P2X1311 delivers reliable performance as part of the Lovato Accessories range.
Built for demanding environments, it operates from -40 to +70 °C and withstands 4 kV impulse voltage. The unit is suitable as an indicator contact for P2MB… equipment, with straightforward installation and specified terminal tightening torque of 1 to 1 Nm. At just 40 g, it offers robust signalling without adding bulk, and ships with full standards conformity to IEC/EN 60947-5-1.
Key Benefits
- Side-mount design saves panel space and simplifies integration.
- 1 C/O changeover contact provides clear, reliable status indication.
- Compact 0.5 DIN-module width optimises rail space.
- Rated current 6 A for robust auxiliary signalling.
- Wide operating temperature range from -40 to +70 °C.
- 4 kV impulse withstand for enhanced insulation coordination.
- Conforms to IEC/EN/BS 60947-5-1 for assured compliance.
Technical Specification
- Product type designation: P1X1311
- Rated impulse withstand voltage Uimp: 4 kV
- Operating temperature: -40 to +70 °C
- Storage temperature: -40 to +80 °C
- Terminal tightening torque: 1 to 1 Nm
- Weight: 40 g
What’s Included
- Lovato P2X1311 indicator contact, side mount, 1 C/O
- Basic installation leaflet
- Manufacturer datasheet (downloadable)
Applications
- Status indication and signalling on P2MB… equipment
- Auxiliary contact for control and automation panels
- Space-constrained DIN-rail assemblies requiring side-mount accessories
- Maintenance spares and retrofit upgrades in industrial enclosures
Frequently Asked Questions
What is the contact configuration of the P2X1311?
It has 1 changeover (1 C/O) contact for status indication.
Which devices is this accessory designed for?
It is an indicator contact for P2MB… equipment.
What are its key ratings and standards?
Rated current is 6 A with Uimp 4 kV, and it complies with IEC/EN/BS 60947-5-1.
Can it operate in harsh temperatures?
Yes, the operating range is -40 to +70 °C and storage is -40 to +80 °C.
How much space does it take and how is it mounted?
It has a 0.5 DIN-module width and mounts on the side.
Safety note: Installation should be performed by qualified personnel. Isolate power before work, follow the manufacturer’s instructions, and observe the specified terminal tightening torque of 1 to 1 Nm.
| Manufacturer Part Number | P2X1311 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85362010 |
| Barcode | 8013975204955 |
