OTR100BA3B Enclosed Switch Disconnector
MPN: 1SCA022569R7320
Alt. SKU: OTR100BA3B
Special Price
£767.44
£639.53
Regular Price
£1,180.67
Why Choose the OTR100BA3B [1SCA022569R7320]

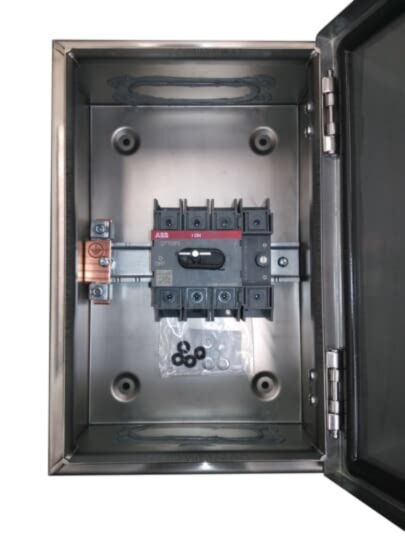

This 3-pole, 80A switch disconnector is rated for 415V AC23 applications up to 37kW and housed in a robust AISI 304 stainless steel enclosure. The IP65-rated enclosure features a hinged door with lock and an interlocked cover that prevents opening while the switch is on, ensuring operational safety. The interlock can be temporarily overridden for thermographic inspection. Designed for both indoor and outdoor environments, the unit includes knock-out cable entries and incorporates neutral (N) and protective earth (PE) terminals. The red-yellow pistol grip handle provides clear operational status and ease of use.
Technical Specification
- Function: 3-pole switch disconnector with interlocked cover and defeatable interlock.
- Rated Operational Voltage: 750 V AC main circuit.
- Rated Operational Current AC-23A: 80 A at 380–415 V.
- Rated Operational Power AC-23A: 37 kW at 380–415 V.
- Insulation Voltage: 750 V (IEC/EN 60664-1).
- Degree of Protection: IP65, suitable for indoor and outdoor use.
- Terminal Type and Capacity: Screw clamp, 10–70 mm² cable cross-section; PE and neutral terminals included.
- Enclosure Material and Impact Resistance: Stainless steel AISI304, IK09 rated.
- Auxiliary Contacts: Maximum 1 NO and 2 NC (none fitted).
- Mechanical Features: Red/yellow pistol handle, hinged door with lock, knock-out cable entries.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated operational current of the switch disconnector?
The rated operational current is 80 A at 380–415 V AC.
What is the degree of protection for this enclosure?
The enclosure has a degree of protection of IP65, making it suitable for both indoor and outdoor use.
What type of cable terminals does this product support?
The product features screw clamp terminals with a cable cross-section capacity of 10–70 mm², including PE and neutral terminals.
Can the interlock function be defeated?
Yes, the interlock function can be defeated for thermographing purposes.
What material is the enclosure made from?
The enclosure is constructed from rigid stainless steel, class AISI304.
What is the maximum rated operational power of the switch disconnector?
The maximum rated operational power is 37 kW at 380–415 V AC.
What safety features does this product include?
The product includes an interlocked cover, a hinged door with a lock, and a red/yellow pistol handle for operation.
| Manufacturer Part Number | 1SCA022569R7320 |
|---|---|
| Packed Quantity | 1 |
| Height | 300mm |
| Width | 200mm |
| Depth | 135mm |
| Amperage | 80A |
| Degree of protection (IP) | IP65 |
| KW Rating | 37kW |
| Number of Poles | 3 Pole |
| Manufacturer | ABB |
| Alternative Product SKU | OTR100BA3B |
| Barcode | 6417019183916 |
