OTL16B3M Enclosed Switch Disconnector
MPN: 1SCA022562R1260
Alt. SKU: OTL16B3M
Special Price
£131.60
£109.67
Regular Price
£202.48
Why Choose the OTL16B3M [1SCA022562R1260]

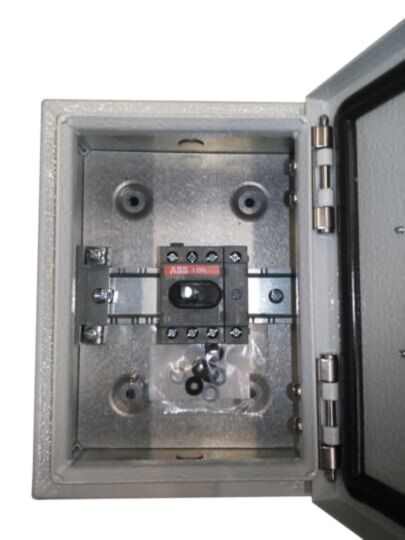

This 3-pole, 16A switch disconnector is rated for 415V AC23 and 7.5kW applications, housed in a robust steel sheet enclosure with an IP65 rating for dust and water resistance. The OTL series enclosure is constructed from rigid alu-zinc coated steel with a durable polyester powder finish, ensuring long-term corrosion protection. It features a hinged door with a lockable mechanism and a black selector handle. The cover is interlocked to prevent opening while the switch is engaged, with a defeatable interlock function to facilitate thermographic testing. Designed for outdoor use, the enclosure complies with UL746C standards for UV exposure, water ingress, and immersion. Cable entries are knock-out style, and the unit includes neutral and PE terminals for straightforward wiring.
Technical Specification
- Function: 3-pole enclosed switch disconnector with interlocked cover and defeatable interlocking.
- Rated Operational Current: 16 A (AC-23A, 380...415 V).
- Rated Operational Power: 7.5 kW (AC-23A, 380...415 V).
- Rated Insulation Voltage: 750 V.
- Degree of Protection: IP65, suitable for outdoor use.
- Terminal Type and Capacity: Screw clamp 0.75 to 10 mm²; PE terminal 2 pcs, 1.5 to 25 mm².
- Enclosure Material and Durability: Steel sheet, IK09 impact resistance, RAL7035 colour.
- Terminal Position: Line, neutral and PE terminals top in / bottom out.
- Standards: IEC 60947-1, -3.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated operational current of the switch disconnector?
The rated operational current is 16 A (AC-23A, 380...415 V).
What is the degree of protection for this product?
The degree of protection is IP65, making it suitable for outdoor use.
What type of enclosure does the switch disconnector have?
The enclosure is made of rigid alu-zinc coated steel with polyester powder coating.
What is the cable terminal capacity?
The terminal type is screw clamp with a capacity of 0.75 to 10 mm²; PE terminal capacity is 1.5 to 25 mm².
Can the interlock function be defeated?
Yes, the interlock function can be defeated for thermographing purposes.
What standards does this product conform to?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 1SCA022562R1260 |
|---|---|
| Packed Quantity | 1 |
| Height | 200mm |
| Width | 150mm |
| Depth | 100mm |
| HS Code | 85365080 |
| Amperage | 45A |
| Degree of protection (IP) | IP65 |
| KW Rating | 7.5kW |
| Number of Poles | 3 Pole |
| Country of Manufacture | Bulgaria |
| Manufacturer | ABB |
| Alternative Product SKU | OTL16B3M |
| Barcode | 6417019179933 |
