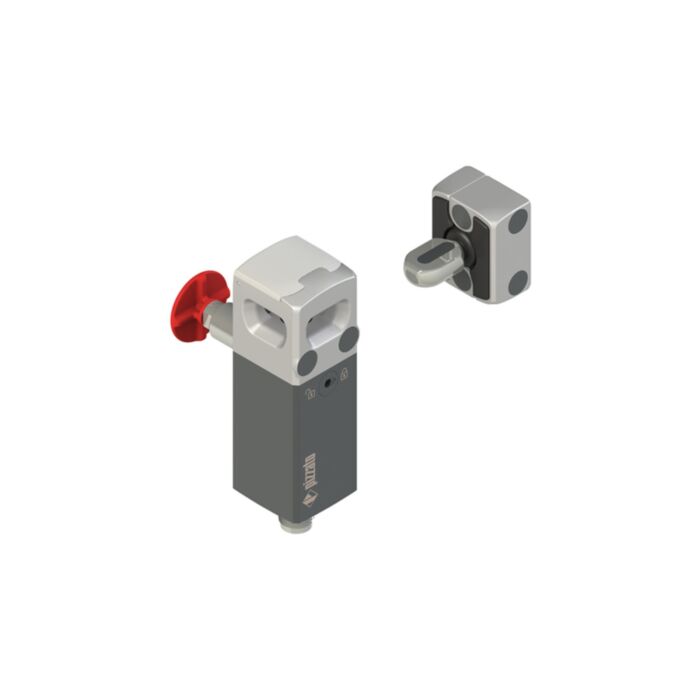

NX P42AE1SMK-F61 Pizzato NX Series RFID safety switch
MPN: NX P42AE1SMK-F61
Alt. SKU: NXP42AE1SMKF61
£405.72
£338.10
Why Choose the NXP42AE1SMK-F61
The Pizzato Elettrica NXP42AE1SMK-F61 is an RFID safety switch with lock from the NX series, incorporating bistable solenoid technology for reliable machine guard safety. It supports activation of OS1 and OS2 contacts when the actuator is inserted, ensuring high-level protection for safety-critical applications.
Equipped with multiple safety inputs and outputs, and a robust housing rated IP67 and IP69K, this switch enables advanced interlocking and diagnostic capabilities. A 12-pole M12 connector streamlines installation and wiring in demanding automated environments.
Key Benefits
- Bistable solenoid (Mode 2): Secure locking and unlocking operation tailored for machine safety requirements
- Multiple safety channels: 2 safety inputs, 2 safety outputs, and dedicated solenoid controls enable integration with safety relays or PLCs
- Comprehensive protection: Enclosure rated IP67 and IP69K for industrial and washdown applications
- Certified safety: cULus, EAC, ECOLAB, EU Type Examination, TÜV SÜD and UKCA approvals ensure wide compliance
- M12, 12-pole connection: Rapid, reliable connectivity for simplified field installation
Technical Specification
- Manufacturer: Pizzato Elettrica
- Series: NX
- Product type: RFID safety switch with lock
- Device configuration: Mode 2 of bistable solenoid. Activation of OS1 and OS2 with inserted actuator.
- Inputs:
- 2 safety inputs IS1, IS2
- 2 inputs for solenoid activation IE1, IE2
- 1 programming / reset input I3
- Outputs:
- 2 safety outputs OS1, OS2
- 1 signalling output O3: actuator inserted
- 1 signalling output O4: actuator locked
- Protection degree:
- IP67 according to EN 60529
- IP69K according to ISO 20653
- Connection: M12 connector, 12-pole
- Approvals:
- cULus Certificate
- EAC Certificate
- ECOLAB Certificate
- EU Type examination certificate
- TÜV SÜD Certificate
- UKCA Declaration of Conformity
What’s Included
- Pizzato Elettrica NXP42AE1SMK-F61 RFID safety switch with lock
- Access to certifications and compliance documents via manufacturer resources
Applications
- Guard interlocking and position detection on safeguarding doors and gates
- Automated production lines requiring safe access control
- Packaging, robotics, and material handling systems where secure guard monitoring is essential
- Environments demanding high protection against dust and water (up to IP69K)
Typical Wiring Use
The multiple inputs and outputs allow integration with most safety relay or safety PLC architectures. The M12, 12-pole connector supports direct, robust wiring within machinery electrical cabinets and enclosures.
Maintenance and Inspection
Periodic inspection of installation integrity, electrical connections, and actuator function is recommended according to the site’s safety procedures. Replacement is advised if damage or wear is apparent.
Trusted By Customers Worldwide
"Exceptional reliability for demanding guard door safety-certified and suitable for harsh industrial use." Automation Engineer, United Kingdom
Frequently Asked Questions
What is the primary function of this RFID safety switch?
It interlocks machine guards using RFID-coded actuation and a bistable solenoid, ensuring safety outputs activate only when the actuator is inserted and locked.
What do the OS1 and OS2 outputs represent?
OS1 and OS2 are the main safety outputs that indicate the guard is safely closed and locked, suitable for connection to a safety relay or PLC.
What protection does IP67/IP69K provide?
IP67 means protection against dust and temporary immersion in water. IP69K ensures resistance to high-pressure, high-temperature washdown, making it ideal for harsh and hygienic environments.
What type of connector is required for installation?
The unit uses a 12-pole M12 connector, compatible with industrial wiring harnesses for straightforward and secure electrical connections.
Is the switch compliant with international safety standards?
Yes. It carries cULus, EAC, ECOLAB, EU Type Examination, TÜV SÜD, and UKCA certifications to meet diverse application requirements.
How often should the unit be inspected?
Inspection intervals depend on site risk assessment, but regular visual, functional, and electrical checks are advised to ensure continued compliance and safety.
Safety note: RFID safety switches must be selected, installed, and maintained according to risk assessment and relevant safety standards. Adhere to the manufacturer’s instructions for mounting, wiring, and operation to maintain the integrity of the machine safety system.
| Alternative Product SKU | NXP42AE1SMKF61 |
|---|---|
| Manufacturer Part Number | NX P42AE1SMK-F61 |
| Manufacturer | Pizzato |
| Barcode | 8018851670275 |
| Range | NX |
| Packed Quantity | 1 |
| HS Code | 85369095 |
