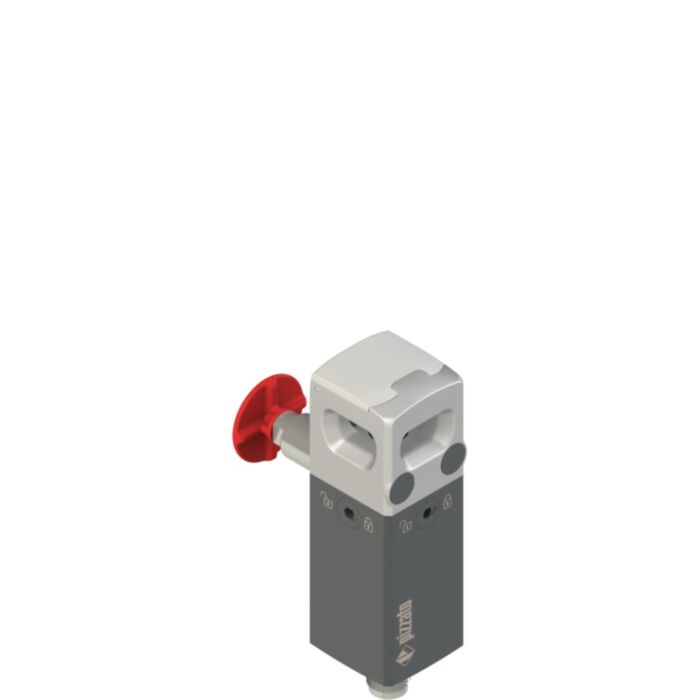

NX B42CE1SMK Pizzato NX Series RFID safety switch
MPN: NX B42CE1SMK
Alt. SKU: NXB42CE1SMK
£359.63
£299.69
Why Choose the NXB42CE1SMK
The Pizzato Elettrica NXB42CE1SMK is an advanced RFID safety switch with lock from the NX series. This device features bistable solenoid mode 1 operation, ensuring outputs OS1 and OS2 are activated only when the actuator is inserted and locked, providing a high level of safety for hazardous machinery guarding.
Designed for modern safety applications, the NXB42CE1SMK offers versatile connectivity via a 12-pole M12 connector and robust ingress protection to both IP67 (EN 60529) and IP69K (ISO 20653) standards. Certified by leading international approvals, it delivers reliable performance and operator protection in demanding industrial environments.
Key Benefits
- High-level RFID security for actuator recognition and protection against tampering
- Bistable solenoid lock mechanism for flexible machine safety architectures
- Advanced diagnostic connectivity via 12-pole M12 connector
- IP67/IP69K ingress protection for use in harsh industrial conditions
- Comprehensive safety I/O including 2 safety inputs, 2 safety outputs and 2 signalling outputs
- Recognised global certifications (cULus, EAC, ECOLAB, EU Type Examination, TÜV SÜD, UKCA)
Technical Specification
- Manufacturer: Pizzato Elettrica
- Series: NX
- Product type: RFID safety switch with lock
- Device configuration: Mode 1, bistable solenoid - outputs OS1 and OS2 active with inserted and locked actuator
- Safety inputs: 2
- Safety outputs: 2
- Signalling outputs: 2
- Solenoid activation inputs: 2
- Programming/reset input: 1
- Protection degree: IP67 (EN 60529); IP69K (ISO 20653)
- Connection: M12 connector, 12-pole
- Approvals: cULus, EAC, ECOLAB, EU Type Examination, TÜV SÜD, UKCA
- Conformity standards: EN 60529, ISO 20653
What’s Included
- Pizzato Elettrica NXB42CE1SMK NX series RFID safety switch with lock
- Access to manufacturer certificates and documentation
Applications
- Machine safety interlocking for hazardous guard doors
- Packaging, assembly and process automation requiring secure safety circuits
- Environments with strict hygiene or washdown requirements
- Installations needing tamper-resistant actuator identification
System Integration
The NXB42CE1SMK’s multiple safety inputs and outputs, together with signalling channels and dedicated solenoid activation and reset inputs, allow integration into sophisticated safety PLC or relay architectures. The M12 12-pole connector supports straightforward connection to control panels and modular wiring systems.
Maintenance and Inspection
Functional verification, including inspection of the locking operation and electrical performance of all safety and signalling circuits, is recommended before commissioning and at scheduled intervals according to the site’s machine safety procedures.
Frequently Asked Questions
What is bistable solenoid mode 1 operation?
In this mode, the device activates outputs OS1 and OS2 only when the actuator is both fully inserted and mechanically locked by the solenoid. This enhances safety by ensuring a secure guard closure before machine operation.
What standards does the NXB42CE1SMK comply with?
The switch meets IP67 (EN 60529) and IP69K (ISO 20653) ratings and holds approvals including cULus, EAC, ECOLAB, EU Type Examination Certificate, TÜV SÜD, and UKCA.
How is the device connected electrically?
The NXB42CE1SMK is equipped with a 12-pole M12 connector for flexible, secure wiring in modern industrial panels.
What are the advantages of RFID technology in safety switches?
RFID ensures that only uniquely coded actuators can operate the switch, dramatically improving protection against bypassing or manipulation.
What I/O does the NXB42CE1SMK provide?
It features 2 safety inputs, 2 safety outputs, 2 signalling outputs, 2 solenoid activation inputs, and a programming/reset input for comprehensive integration with safety controllers.
Where can I find certification or conformity documentation?
The product is supported by official certificates for cULus, EAC, ECOLAB, EU examination, TÜV SÜD, and UKCA, available from the manufacturer or supplier upon request.
Safety note: This RFID safety switch must be integrated following a thorough machine risk assessment and in compliance with all relevant standards. Correct installation, wiring and commissioning are essential to ensure personnel protection and compliance with safety regulations.
| Alternative Product SKU | NXB42CE1SMK |
|---|---|
| Manufacturer Part Number | NX B42CE1SMK |
| Manufacturer | Pizzato |
| Barcode | 8018851670381 |
| Range | NX |
| Packed Quantity | 1 |
| HS Code | 85369095 |
