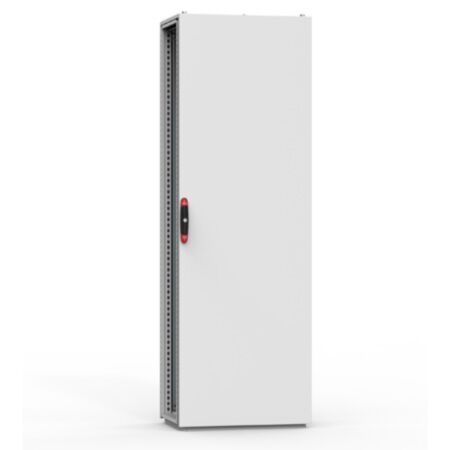

NVENT HOFFMAN DN1610R5 Plain door, 1600x1000
MPN: DN1610R5
Special Price
£255.36
£212.80
Regular Price
£364.80
Why Choose the nVent HOFFMAN DN1610R5?
The nVent HOFFMAN DN1610R5 is a heavy duty plain door for DN series floor standing enclosure systems, designed to replace the rear panel. It enables convenient rear access to equipment installed at the front of the enclosure, and also supports configurations such as back to back mounting plates to increase available mounting space in enclosure builds.
Manufactured in mild steel with a durable powder coated finish in light grey (RAL 7035), the DN1610R5 is built for long service in industrial panel environments. It is supplied as a standard door with a double-bit 3 mm lock system and door frame, while the DNMK accessory kit (hinges and rod catches) is ordered separately where required.
Key Benefits
- Rear access upgrade to improve servicing and maintenance of floor standing enclosure installations
- Supports expanded mounting layouts, including back to back mounting plate configurations
- Industrial mild steel construction with strong door integrity and long term durability
- Powder coated RAL 7035 finish for robust surface protection in control cabinet environments
- Secure closure via double-bit 3 mm lock system supplied with the door
- Flexible locking programme compatibility and support for 180 degree hinges when used with the appropriate kit
Technical Specification
- Manufacturer: nVent HOFFMAN
- Product type: Plain door (rear panel replacement)
- Series: DN (Free-standing)
- Model / SKU: DN1610R5
- Door type: Plain
- Material: Mild steel
- Thickness: 14 ga (door panel)
- Finish: Powder coated
- Colour: Light grey
- Colour code: RAL 7035
- Dimensions (H x W x D): 1582 x 993 x 17 mm
- Depth (imperial listing): 0.66 in
- Maximum load: 800 N
- Locking: Double-bit 3 mm lock system (supplied)
- Accessory kit: DNMK (hinges, rod catches) ordered separately where required
- Pack quantity: 1
- UPC: 783510466619
- EAN: 8713574217928
What’s Included
- DN1610R5 plain door with door frame
- Double-bit 3 mm lock system (fitted)
- Manufacturer documentation for installation and accessory selection
Applications
- Floor standing enclosure builds requiring rear access for maintenance and wiring
- Panel shop configurations using back to back mounting plates to increase usable mounting area
- Industrial automation, power distribution, and control panel enclosures using DN series systems
- Retrofits where a rear panel is upgraded to a lockable door for access control and convenience
Frequently Asked Questions
What is the DN1610R5 used for?
It is a DN series plain door designed to replace the rear panel on a floor standing enclosure, providing rear access to equipment and supporting expanded internal mounting layouts.
What material and finish does the door have?
The DN1610R5 is manufactured from mild steel and supplied with a powder coated finish in light grey (RAL 7035).
Does the DN1610R5 include a lock?
Yes. The door is supplied with a double-bit 3 mm lock system and door frame.
Do I need additional parts to mount the door?
If hinges and rod catches are not already in place for your enclosure configuration, the DNMK accessory kit (hinges and rod catches) is ordered separately to complete installation.
What are the door dimensions?
The door is listed at 1582 mm (H) x 993 mm (W) x 17 mm (D), corresponding to DN enclosure sizes around 1600 x 1000 mm class.
What is the maximum load rating?
The maximum load is specified as 800 N when installed using the appropriate mounting hardware.
Safety note: Always install enclosure accessories in accordance with the manufacturer instructions and ensure the enclosure is correctly bonded, sealed, and configured to meet the required protection and safety requirements for the application.
| Manufacturer Part Number | DN1610R5 |
|---|---|
| Height | 1600mm |
| Width | 1000mm |
| Depth | 1000mm |
| Manufacturer | Nvent-Hoffman |
| Packed Quantity | 1 |
| Barcode | 8713574217928 |
