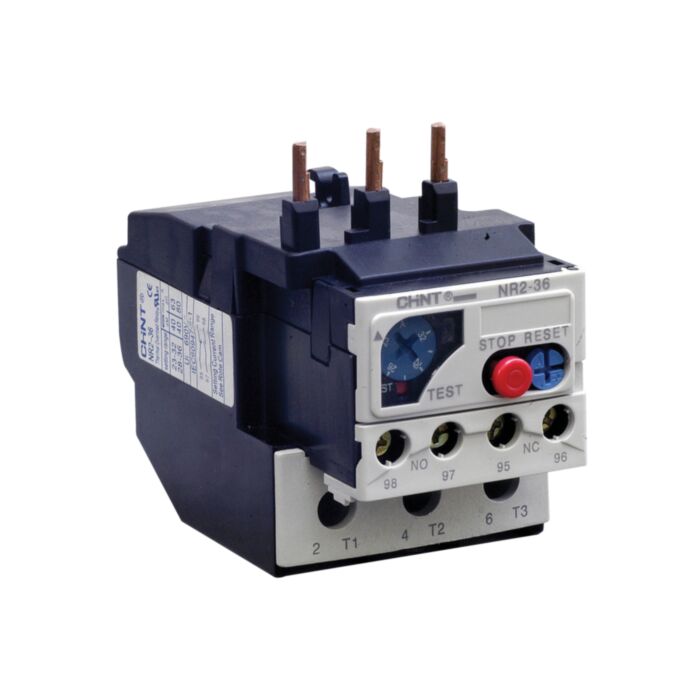

nr2-36-32 chint thermal overload relay, 25a to 32a rated current

Why Choose the CHINT NR2-36-32 Thermal Overload Relay?

The CHINT NR2-36-32 is a high-performance thermal overload relay designed to protect three-phase AC motors against overload, phase failure and excessive current conditions in industrial motor control systems. As part of the robust CHINT NR2 thermal overload relay series, this relay delivers dependable motor protection for automation systems, machinery and OEM electrical panels.

Built with a precision three-phase bimetal tripping mechanism, the NR2-36-32 continuously monitors motor current and disconnects the circuit when abnormal operating conditions occur. Integrated temperature compensation and phase loss sensitivity improve protection accuracy while helping reduce motor damage and costly downtime.

With an adjustable current range of 25 A to 32 A, the NR2-36-32 is suitable for larger industrial motors used in conveyors, compressors, pumps, fans and processing equipment. The relay is engineered for direct mounting onto compatible CHINT NC1, NC2 and NC7 contactors, enabling compact and efficient motor starter assemblies.

Key Advantages

• Reliable thermal overload and phase failure protection.
• Adjustable current range from 25 A to 32 A.
• Compatible with CHINT NC1, NC2 and NC7 contactor series.
• Integrated manual and automatic reset operation.
• Compact construction for industrial control panels.
• Temperature compensated tripping improves protection stability.

Key Features

• CHINT NR2 thermal overload relay series.
• 25 A to 32 A adjustable overload current setting.
• Three-phase thermal bimetal protection.
• Integrated phase loss sensitivity.
• STOP and TEST push buttons.
• Manual and automatic reset selector.
• 1 NO + 1 NC auxiliary contacts.
• Direct mounting onto compatible CHINT contactors.

Technical Specifications

• Manufacturer: CHINT
• Series: NR2 Thermal Overload Relay
• Model: NR2-36-32
• Product type: Thermal overload relay
• Current adjustment range: 25 A to 32 A
• Rated operational voltage: Up to 690 V AC
• Frequency: 50 / 60 Hz
• Tripping class: Class 10A
• Protection functions: Overload and phase failure protection
• Auxiliary contacts: 1 NO + 1 NC electrically isolated
• Reset mode: Manual / Automatic selectable
• Mounting type: Plug-in contactor mounting
• Protection rating: IP20 when enclosed
• Compliance standards: IEC/EN 60947-4-1
• Mechanical life: ≥ 1,000,000 operations
• Electrical life: ≥ 100,000 operations

Reliable Protection for Industrial Motor Applications

Thermal overload relays are essential for protecting electric motors against overheating caused by excessive current draw, mechanical overload or phase imbalance. The CHINT NR2-36-32 continuously monitors motor current and trips the associated contactor when unsafe operating conditions are detected.

The NR2 series is widely used in industrial automation systems, OEM machinery and motor control centres where dependable motor protection and compact installation are essential. Its direct mounting configuration simplifies panel assembly and maintenance operations.

Typical Applications

• Industrial motor starter assemblies.
• Conveyor and material handling systems.
• Pumps, compressors and ventilation equipment.
• Manufacturing and processing machinery.
• HVAC motor protection systems.
• OEM automation and industrial control applications.

Trusted by Industrial Engineers Worldwide

CHINT NR2 thermal overload relays are widely used in industrial automation and machinery applications to provide dependable overload protection and reliable long-term motor performance.
