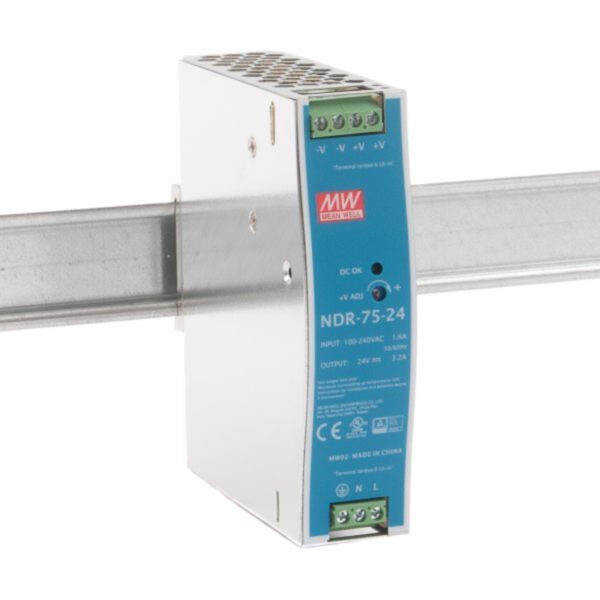

NDR-75-24 Power Supply 90-264VAC 1 phase input, output 24 volts DC 3.2 Amps
MPN: NDR-75-24
Alt. SKU: NDR7524
Special Price
£27.64
£23.03
Regular Price
£39.48
Why Choose the Mean Well NDR-75-24 DIN Rail Power Supply?
The Mean Well NDR-75-24 is a slim, high-efficiency 75W DIN rail power supply designed for industrial automation, process control, and panel-building environments. Delivering a reliable 24V DC output at 3.2A, it offers robust performance, a wide input voltage range, and a full suite of protection features—making it a perfect fit for modern, space-conscious installations.
Key Takeaways
- Output: 24V DC at 3.2A (76.8W)
- Input Voltage: 90–264V AC / 127–370V DC
- High efficiency up to 90%
- Protections: Short circuit, overload, over voltage, over temperature
- Cooling by free air convection
- DIN rail mountable (TS35/7.5 or TS35/15)
- Slim metal case: 32mm width
- Operating temperature: -20°C to +70°C
- Compliance: UL508, TUV EN62368-1, EAC, CE
Frequently Asked Questions About the Mean Well NDR-75-24
- What is the output voltage and current of the NDR-75-24?
- What are the input voltage ranges supported?
- What protection features are included?
- How is the unit cooled?
- What are the mounting options?
Mean Well NDR-75-24 Overview
The NDR-75-24 is part of Mean Well’s slim NDR series, known for high reliability and efficient power delivery. This model offers a consistent 24V DC output at 3.2A, and its compact metal housing is ideal for modern automation and control panels where space is at a premium. Its wide input range and full suite of protections guarantee long life and safe operation in challenging industrial settings.
Speed & Safety Benefits
- Quick installation: Slim DIN rail mounting saves valuable panel space and simplifies wiring
- Enhanced safety: Comprehensive built-in protections for both equipment and personnel
- Efficient operation: High efficiency reduces energy use and heat output
Key Features of the Mean Well NDR-75-24
- Output: 24V DC at 3.2A (76.8W)
- Input Voltage: 90–264V AC / 127–370V DC
- High efficiency up to 90%
- Protections: Short circuit, overload, over voltage, over temperature
- Cooling by free air convection
- DIN rail mountable (TS35/7.5 or TS35/15)
- Slim metal case: 32mm width
- Operating temperature: -20°C to +70°C
- Compliance: UL508, TUV EN62368-1, EAC, CE
The NDR-75-24 provides a 24V DC output at 3.2A, delivering a total power of 76.8W.
This model supports a wide input voltage range of 90–264V AC and 127–370V DC, making it suitable for global applications and flexible system integration.
It features short circuit, overload, over voltage, and over temperature protection for safe and reliable operation.
The NDR-75-24 is cooled by free air convection, requiring no additional fans.
This unit is designed for DIN rail mounting (TS35/7.5 or TS35/15), ensuring fast and secure installation in electrical panels and enclosures.
Choose the Mean Well NDR-75-24 DIN Rail Power Supply for reliable, efficient, and compact power delivery in your industrial and automation projects.
| The Mean Well DIN rail single phase range of MDR and DR power supplies are ideal for use inside control panels and powering a variety of other industrial applications within the control and automation market. The switched-mode PSUs within this range boast a miniature profile; perfect for when space is of a premium. The units range from 10 Watts to 100 Watts with output voltages between 5V and 48V DC. |
