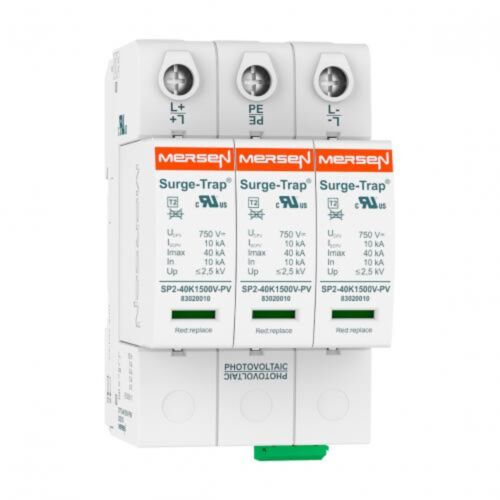

Mersen Surge Protector Type 2 SPD 3 Pole 600 Volt D/C 20KA Y-P Volt Remote Indication
MPN: 83020139
Alt. SKU: STPT2-40K600V-YPVM
Special Price
£130.06
£108.38
Regular Price
£175.98
Why Choose the Surge Protection Device Type 2, 40kA Imax (8/20), Y PV, 600Vdc, Photovoltaic, 3 Poles, Pluggable, 3 Modules, Remote indication STPT2-40K600V-YPVM?
This type 2 surge protection device delivers robust transient overvoltage protection up to 40kA (8/20 μs) for 600Vdc photovoltaic installations, with a Y PV configuration optimised for safe and efficient performance in demanding solar applications. The 3-pole, pluggable module design ensures straightforward installation and maintenance, minimising downtime.
Integrated remote indication enhances monitoring and fault response for critical PV systems, supporting preventive maintenance and system longevity. Engineered for reliability, the STPT2-40K600V-YPVM meets stringent industrial standards, making it ideal for modern photovoltaic protection requirements.
Product Code: 83020139
Key Benefits
- High surge current capacity of 40kA (8/20 μs) ensures superior protection against transient overvoltages.
- Y PV system configuration optimised for photovoltaic installations.
- Pluggable 3-module design allows for easy installation and maintenance.
- Integrated remote indication system for real-time monitoring and fault detection.
- Complies with IEC Class II and UL Type 2 standards for reliable industrial performance.
- Compact dimensions (54 mm width, 70 mm length, 90 mm height) suitable for space-constrained installations.
Compatibility
The STPT2-40K600V-YPVM is compatible with 600Vdc photovoltaic systems configured in Y PV arrangements. It integrates seamlessly with standard photovoltaic arrays requiring Type 2 surge protection and supports connection with remote monitoring systems via its indication microswitch. Suitable for use in systems with short circuit withstand capacity up to 10 kA.
Applications
- Photovoltaic solar power installations.
- Renewable energy systems requiring DC surge protection.
- Industrial and commercial solar PV arrays.
- Energy storage systems with photovoltaic integration.
- Electrical panels and distribution boards in solar power plants.
Technical Specifications
- Item number: 83020139
- Catalogue No: STPT2-40K600V-YPVM
- Description: Surge Protection Device Type 2, 40kA Imax (8/20), Y PV, 600Vdc, Photovoltaic, 3 Poles, Pluggable, 3 Modules, Remote indication
- EAN/UPC Code: 8435297849223
- RoHS Compliant: Yes
- IEC SPD Type: Class II
- UL SPD Type: Type 2 Component Assembly
- Format: Pluggable
- AC or DC: DC
- Nominal Discharge Current (In) (8/20): 20 kA
- Max Discharge Current : Imax (8/20): 40 kA
- Protection Modes: L+/PE, L-/PE, L+/L-
- System Configuration: YPV
- Short Circuit Withstand (ISCPV): 10 kA
- Indication System: Yes
- Indication System Type: Green (OK) / Not green (replace) Microswitch
- Torque Rating: 3 Nm
- Housing Material: PA66 CT1
- MOV Response Time: ≤25
- Up at In (L-PE): ≤2,6 kV
- VPR DC+ DC-: 1800 V
- VPR DC+ G: 1800 V
- VPR DC- G: 1800 V
- Replacement Plug L1: 83020005
- Product Width: 54 mm
- Product Length: 70 mm
- Product Height: 90 mm
- Sell Pack Quantity: 1 EA
- Sell Pack Weight: 0.334 kg
- Sell Pack Width: 63 mm
- Sell Pack Length: 117 mm
- Sell Pack Height: 90 mm
- Product group: Photovoltaic & Energy Storage SPDs
- Product Weight: 0.293 kg
Frequently Asked Questions
What is the maximum surge current this device can handle?
The STPT2-40K600V-YPVM can handle a maximum surge current (Imax) of 40 kA (8/20 μs waveform).
Is this surge protection device suitable for AC systems?
No, this device is designed specifically for DC photovoltaic systems up to 600Vdc.
Does the device provide remote fault indication?
Yes, it includes an integrated remote indication system using a microswitch for monitoring status.
What type of installation format does this product use?
It uses a pluggable format with 3 modules for easy installation and replacement.
Can this device be used in systems with short circuit currents above 10 kA?
No, it is rated for short circuit withstand up to 10 kA only.
Common Search Terms
Surge protection device, SPD Type 2, photovoltaic surge protector, 600V DC SPD, pluggable surge protector, solar panel surge protection, remote indication SPD, Y PV surge protection, 40kA surge protector, DC surge arrester.
| Manufacturer Part Number | 83020139 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 8435297849223 |
| Height | 70mm |
| Width | 54mm |
| Depth | 90mm |
| HS Code | 85363090 |
| Country of Manufacture | Spain |
| Manufacturer | Mersen |
| Number of Poles | 3 Pole |
| Voltage | 600VDC |
| Maximum Continuous Voltage | 660V |
| Nominal Discharge Current | 20Ka |
| Remote Indication | Yes |
| System Type | Y-PV |
| Alternative Product SKU | STPT2-40K600V-YPVM |
