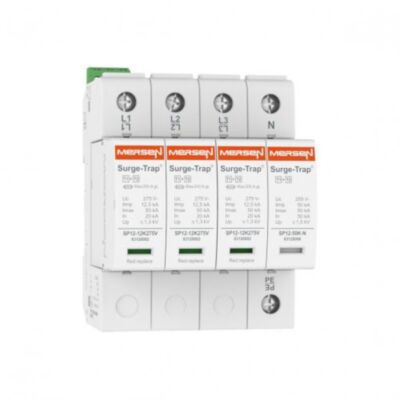

Mersen Surge Protector Type 2 SPD 3 Pole 480 Volt 20KA TNC Remote Indication
MPN: 83020137
Alt. SKU: STPT2-40K320V-3PM
This product is discontinued. Please view this replacement item.
Why Choose the Surge Protection Device Type 2, 40kA Imax (8/20), 3Ph, -/480V, 3+0 TNC, 3 Poles, Pluggable, 3 Modules, Remote Indication STPT2-40K320V-3PM?
This Type 2 surge protection device is engineered for reliable safeguarding of three-phase systems up to 480V, offering a robust 40kA maximum discharge current (8/20µs). The 3+0 TNC configuration and three-pole pluggable design ensure straightforward integration and maintenance in commercial and industrial installations.
Featuring remote indication for fast system status monitoring, the unit is compact with a three-module footprint, delivering high performance and ease of replacement. Choose this SPD for enhanced protection and operational assurance in demanding electrical environments.
Technical Specifications
- Item number: 83020137
- Catalogue No: STPT2-40K320V-3PM
- Description: Surge Protection Device Type 2, 40kA Imax (8/20), 3Ph, -/480V, 3+0 TNC, 3 Poles, Pluggable, 3 Modules, Remote indication
- EAN/UPC Code: 8435297850984
- RoHS Compliant: Yes
- IEC SPD Type: Class II
- UL SPD Type: Type 2 Component Assembly
- Format: Pluggable
- Nominal Operating Volt Rating (Un): 277/480
- AC or DC: AC
- Nominal Discharge Current (In) (8/20): 20 kA
- Max Discharge Current : Imax (8/20): 40 kA
- Protection Modes: L-PE(N)
- System Configuration: TNC
- Short Circuit Withstand (ISCCR): 25 kA
- Indication System: Yes
- Indication System Type: Green (OK) / Not green (replace) Microswitch
- Number of Poles: 3-Pole
- Torque Rating: 3 Nm
- Housing Material: PA66 CT1
- MOV Response Time: ≤25
- Installation Mounting: DIN rail
- VPR L-G: 1000 V
- VPR L-L: 2000 V
- Replacement Plug N-PE: 77707664
- Replacement Plug L-N: 77707671
- Product Width: 54 mm
- Product Length: 70 mm
- Product Height: 90 mm
- Sell Pack Quantity: 1 EA
- Sell Pack Weight: 0.355 kg
- Sell Pack Width: 63 mm
- Sell Pack Length: 117 mm
- Sell Pack Height: 90 mm
- Product group: Power Line SPDs
- Product Weight: 0.317 kg
Product Code: 83020137
Key Benefits
- High surge current capacity of 40kA (Imax) ensures robust protection against transient overvoltages.
- Pluggable design with three modules allows easy installation and quick replacement.
- Remote indication feature enables real-time monitoring of device status, reducing downtime.
- Compact size with DIN rail mounting suits space-constrained electrical panels.
- Complies with IEC Class II and UL Type 2 standards for assured quality and safety.
Compatibility
This surge protection device is compatible with three-phase TNC electrical systems up to 480V nominal operating voltage. It integrates seamlessly with standard DIN rail-mounted switchgear and distribution boards requiring Type 2 surge protection.
Applications
- Commercial and industrial electrical distribution systems.
- Protection of sensitive electronic equipment in manufacturing plants.
- Power line surge protection in office buildings and data centres.
- Renewable energy installations requiring reliable surge suppression.
- Infrastructure projects with stringent electrical safety requirements.
Frequently Asked Questions
What does the 40kA Imax rating mean?
The 40kA Imax rating indicates the maximum surge current the device can safely divert during a transient event, providing high-level protection against power surges.
Is this device suitable for single-phase systems?
No, this particular model is designed for three-phase TNC systems and is not suitable for single-phase installations.
How does the remote indication feature work?
The remote indication uses a microswitch that changes state when the device needs replacement, allowing status monitoring from a remote location.
Can the replacement plugs be purchased separately?
Yes, replacement plugs for N-PE and L-N are available under part numbers 77707664 and 77707671 respectively.
Common Search Terms
Type 2 SPD, 40kA surge protector, 3-phase surge protection, pluggable SPD, DIN rail surge device, remote indication SPD, TNC system surge protector, 480V surge protection, industrial surge device.
| Manufacturer Part Number | 83020137 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 8435297850984 |
| Height | 70mm |
| Width | 54mm |
| Depth | 90mm |
| HS Code | 85363090 |
| Country of Manufacture | Spain |
| Manufacturer | Mersen |
| Number of Poles | 3 Pole |
| Voltage | 480V |
| Maximum Continuous Voltage | 320V |
| Nominal Discharge Current | 20Ka |
| Remote Indication | Yes |
| System Type | TNC |
| Alternative Product SKU | STPT2-40K320V-3PM |
Write Your Own Review
Protection system of coordinated stages: Type 1, 2 and 3 SPDs
The SPDs of a surge protection system must be able to withstand the discharged current and provide a Ures level (residua l voltage) lower than the Ue peak voltage that the equipment can withstand. Most of the times it is not possible to achieve this with just one SPD, especially because the intensity of the surge is not known, and because of the induction of overvoltages when conductors exceed 10m.
The optimal system of protection is the 3-STEP approach, in which successive stages are combined in the performance of high discharge capacity devices and devices with an optimal voltage protection level (low). This is addressed by the definition of "Types" or "Classes" of SPDs according to the type of transient pulses to which each protected zone in the installation is subject to.
