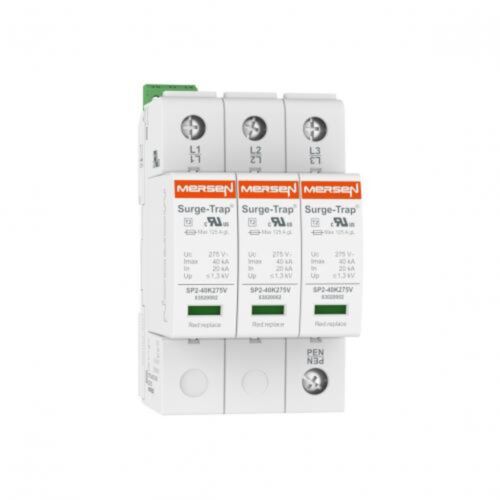

Mersen Surge Protector Type 2 SPD 3 Pole 400 Volt 20KA TNC Remote Indication
MPN: 83020135
Alt. SKU: STPT2-40K275V-3PM
This product is discontinued. Please view this replacement item.
Why Choose the Surge Protection Device Type 2, 40kA Imax (8/20), 3Ph, -/400V, 3+0 TNC, 3 Poles, Pluggable, 3 Modules, Remote indication STPT2-40K275V-3PM?
This robust Type 2 surge protection device offers reliable defence for three-phase systems, handling surges up to 40kA (8/20μs) with a 275V nominal voltage. Its 3+0 TNC configuration ensures comprehensive protection for both industrial and commercial installations, minimising downtime and equipment failure.
The pluggable, three-module design allows swift replacement without re-wiring, while integrated remote indication enables easy monitoring of status and performance. Engineered for seamless integration, it provides cost-effective, high-performance surge protection in demanding environments.
Product Code: 83020135
Key Benefits
- High surge current capacity of 40kA ensures robust protection against transient overvoltages.
- Pluggable design with three modules allows quick and easy replacement without rewiring.
- Integrated remote indication for real-time monitoring of device status.
- Compact dimensions (54 mm width, 70 mm length, 90 mm height) optimise panel space.
- Suitable for 3-phase TNC systems, providing comprehensive line-to-earth and line-to-neutral protection.
- Compliance with IEC Class II and UL Type 2 standards guarantees quality and safety.
Compatibility
This surge protection device is compatible with three-phase electrical systems configured as 3+0 TNC, operating at nominal voltages of 230/400V AC. It is designed for DIN rail mounting and can be integrated into industrial and commercial electrical panels requiring Class II surge protection. Replacement plugs for N-PE and L-N connections are available (part numbers 77707664 and 77707654 respectively) to maintain device longevity.
Applications
- Industrial electrical distribution boards
- Commercial building power systems
- Protection of sensitive electronic equipment in manufacturing plants
- Renewable energy installations requiring surge protection
- Data centres and IT infrastructure environments
Frequently Asked Questions
What is the maximum surge current this device can handle?
The device can handle a maximum surge current (Imax) of 40kA (8/20µs waveform).
Can this SPD be used in a TN-C-S system?
Yes, the device is designed for 3+0 TNC system configurations, which is compatible with TN-C-S installations.
Does the device provide remote indication?
Yes, it features an integrated indication system with a green (OK) / not green (replace) microswitch for remote status monitoring.
Is the device RoHS compliant?
Yes, this surge protection device is RoHS compliant.
How is the device mounted?
The SPD is designed for DIN rail mounting, facilitating easy installation in standard electrical panels.
Common Search Terms
Type 2 surge protector, 40kA surge protection device, 3-phase SPD, pluggable surge protector, DIN rail SPD, remote indication surge protector, 230/400V surge protection, TNC system SPD, industrial surge protection, commercial surge protector
Technical Specifications
- Item number: 83020135
- Catalogue No: STPT2-40K275V-3PM
- Description: Surge Protection Device Type 2, 40kA Imax (8/20), 3Ph, -/400V, 3+0 TNC, 3 Poles, Pluggable, 3 Modules, Remote indication
- EAN/UPC Code: 8435297849216
- RoHS Compliant: Yes
- IEC SPD Type: Class II
- UL SPD Type: Type 2 Component Assembly
- Format: Pluggable
- Nominal Operating Volt Rating (Un): 230/400
- AC or DC: AC
- Nominal Discharge Current (In) (8/20): 20 kA
- Max Discharge Current : Imax (8/20): 40 kA
- Protection Modes: L-PE(N)
- System Configuration: TNC
- Short Circuit Withstand (ISCCR): 25 kA
- Indication System: Yes
- Indication System Type: Green (OK) / Not green (replace) Microswitch
- Number of Poles: 3-Pole
- Torque Rating: 3 Nm
- Max. Back-Up Fuse: 125 A [gG]
- Housing Material: PA66 CT1
- MOV Response Time: ≤25
- Installation Mounting: DIN rail
- VPR L-G: 900 V
- VPR L-L: 1800 V
- Replacement Plug N-PE: 77707664
- Replacement Plug L-N: 77707654
- Product Width: 54 mm
- Product Length: 70 mm
- Product Height: 90 mm
- Sell Pack Quantity: 1 EA
- Sell Pack Weight: 0.346 kg
- Sell Pack Width: 63 mm
- Sell Pack Length: 117 mm
- Sell Pack Height: 90 mm
- Product group: Power Line SPDs
- Product Weight: 0.308 kg
| Manufacturer Part Number | 83020135 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 8435297849216 |
| Height | 70mm |
| Width | 54mm |
| Depth | 90mm |
| HS Code | 85363090 |
| Country of Manufacture | Spain |
| Manufacturer | Mersen |
| Number of Poles | 3 Pole |
| Voltage | 400V |
| Maximum Continuous Voltage | 275V |
| Nominal Discharge Current | 20Ka |
| Remote Indication | Yes |
| System Type | TNC |
| Alternative Product SKU | STPT2-40K275V-3PM |
Write Your Own Review
Protection system of coordinated stages: Type 1, 2 and 3 SPDs
The SPDs of a surge protection system must be able to withstand the discharged current and provide a Ures level (residua l voltage) lower than the Ue peak voltage that the equipment can withstand. Most of the times it is not possible to achieve this with just one SPD, especially because the intensity of the surge is not known, and because of the induction of overvoltages when conductors exceed 10m.
The optimal system of protection is the 3-STEP approach, in which successive stages are combined in the performance of high discharge capacity devices and devices with an optimal voltage protection level (low). This is addressed by the definition of "Types" or "Classes" of SPDs according to the type of transient pulses to which each protected zone in the installation is subject to.
