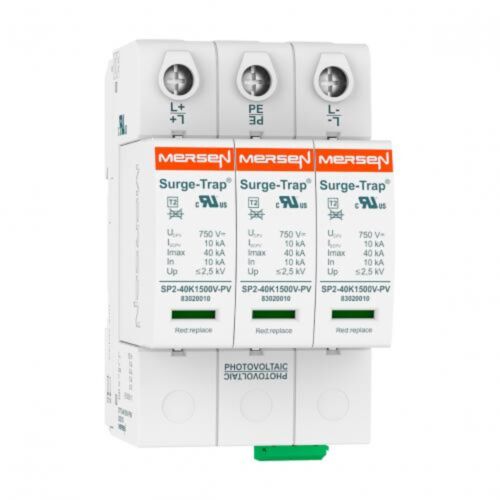

Mersen Surge Protector Type 2 SPD 3 Pole 1500 Volt D/C 10KA Y-PV
MPN: 83020158
Alt. SKU: STPT2-40K1500V-YPV
Special Price
£158.39
£131.99
Regular Price
£211.18
Why Choose the STPT2-40K1500V-YPV Surge Protection Device?
Engineered for photovoltaic applications, the STPT2-40K1500V-YPV provides robust Type 2 surge protection with a maximum discharge current of 40kA (8/20µs) and supports up to 1500V DC. Its three-pole, pluggable design ensures straightforward installation, maintenance and system adaptation in modern PV arrays.
This device safeguards critical PV equipment from transient overvoltages, significantly improving reliability and operational safety. Utilising a compact three-module form factor, it is ideal for integration into new and existing solar power installations requiring high-performance surge protection and superior serviceability.
Technical Specifications
- Item number: 83020158
- Catalogue No: STPT2-40K1500V-YPV
- Description: Surge Protection Device Type 2, 40kA Imax (8/20), Y PV, 1500Vdc, Photovoltaic, 3 Poles, Pluggable, 3 Modules
- EAN/UPC Code: 8435297855026
- RoHS Compliant: Yes
- IEC SPD Type: Class II
- UL SPD Type: Type 2 Component Assembly
- Format: Pluggable
- AC or DC: DC
- Nominal Discharge Current (In) (8/20): 10 kA
- Max Discharge Current : Imax (8/20): 40 kA
- Protection Modes: L+/PE, L-/PE, L+/L-
- System Configuration: YPV
- Short Circuit Withstand (ISCPV): 10 kA
- Indication System: Yes
- Indication System Type: Green (OK) / Not green (replace)
- Torque Rating: 3 Nm
- Housing Material: PA66 CT1
- MOV Response Time: ≤25
- Up at In (L-PE): ≤5 kV
- MCOV DC+ DC-: 1500 V
- MCOV DC+ G: 1500 V
- MCOV DC- G: 1500 V
- VPR DC+ DC-: 4000 V
- VPR DC+ G: 4000 V
- VPR DC- G: 4000 V
- Replacement Plug L1: 83020010
- Product Width: 54 mm
- Product Length: 70 mm
- Product Height: 90 mm
- Sell Pack Quantity: 1 EA
- Sell Pack Weight: 0.37 kg
- Sell Pack Width: 63 mm
- Sell Pack Length: 117 mm
- Sell Pack Height: 90 mm
- Product group: Photovoltaic & Energy Storage SPDs
- Product Weight: 0.33 kg
Product Code: 83020158
Key Benefits
- High surge current capacity of 40kA (8/20µs) ensures excellent protection against transient overvoltages.
- Supports up to 1500V DC, suitable for modern high-voltage photovoltaic systems.
- Three-pole pluggable design allows easy installation and replacement without system downtime.
- Compact three-module form factor saves space in distribution boards and enclosures.
- Visual indication system provides clear status monitoring for maintenance purposes.
- Robust PA66 CT1 housing material offers durability and resistance to harsh environmental conditions.
Compatibility
The STPT2-40K1500V-YPV is compatible with a wide range of photovoltaic systems configured in YPV system topology. It integrates seamlessly with solar inverters, combiner boxes, and energy storage devices operating up to 1500V DC. Its pluggable format fits standard mounting rails and supports easy upgrades or replacements in existing installations.
Applications
- Photovoltaic solar power plants and rooftop solar installations.
- Energy storage systems requiring DC surge protection.
- Industrial and commercial solar power arrays.
- Protection of inverters, combiner boxes, and DC distribution panels.
- Renewable energy systems exposed to transient overvoltages.
Frequently Asked Questions
What is the maximum voltage rating of this surge protection device?
The STPT2-40K1500V-YPV supports a maximum continuous operating voltage (MCOV) of 1500 V DC.
How does the indication system work?
The device features a green indicator when operational (OK). If the indicator is not green, it signals that the unit needs replacement.
Can this device be used in AC systems?
No, this SPD is specifically designed for DC photovoltaic systems and is not suitable for AC applications.
Is the device RoHS compliant?
Yes, the STPT2-40K1500V-YPV is RoHS compliant, ensuring it meets environmental safety standards.
Common Search Terms
PV surge protector, 1500V DC SPD, Type 2 surge protection, photovoltaic surge device, pluggable surge arrester, solar panel surge protection, 40kA surge current SPD, YPV system SPD, DC surge protection device.
| Manufacturer Part Number | 83020158 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 8435297855026 |
| Height | 70mm |
| Width | 54mm |
| Depth | 90mm |
| HS Code | 85363090 |
| Country of Manufacture | Spain |
| Manufacturer | Mersen |
| Number of Poles | 3 Pole |
| Voltage | 1500VDC |
| Maximum Continuous Voltage | 1500V |
| Nominal Discharge Current | 10Ka |
| System Type | Y-PV |
| Alternative Product SKU | STPT2-40K1500V-YPV |
Write Your Own Review
Protection system of coordinated stages: Type 1, 2 and 3 SPDs
The SPDs of a surge protection system must be able to withstand the discharged current and provide a Ures level (residua l voltage) lower than the Ue peak voltage that the equipment can withstand. Most of the times it is not possible to achieve this with just one SPD, especially because the intensity of the surge is not known, and because of the induction of overvoltages when conductors exceed 10m.
The optimal system of protection is the 3-STEP approach, in which successive stages are combined in the performance of high discharge capacity devices and devices with an optimal voltage protection level (low). This is addressed by the definition of "Types" or "Classes" of SPDs according to the type of transient pulses to which each protected zone in the installation is subject to.
