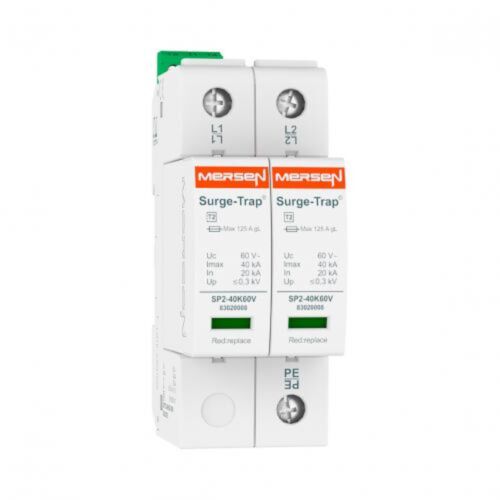

Mersen Surge Protector Type 2 SPD 2 Pole 48 Volt 20KA TNS Remote Indication
MPN: 83020129
Alt. SKU: STPT2-40K60V-2PM
Special Price
£92.22
£76.85
Regular Price
£122.96
Why Choose the STPT2-40K60V-2PM Surge Protection Device?
Engineered for robust protection, the STPT2-40K60V-2PM is a Type 2 surge protection device offering a high Imax of 40kA (8/20 µs), suitable for single-phase+neutral (1Ph+N) applications with a 48V system and 2+0 TNS configuration. Its pluggable, 2-pole design ensures straightforward installation and maintenance, while the two-module width allows for compact integration in control panels.
Remote indication enhances operational reliability by providing instant surge status notification, enabling proactive system management. Rely on SKU 83020129 to protect critical infrastructure and sensitive equipment from transient overvoltages, minimising downtime and maintenance costs.
Technical Specifications
- Item number: 83020129
- Catalogue No: STPT2-40K60V-2PM
- Description: Surge Protection Device Type 2, 40kA Imax (8/20), 1Ph+N, 48/-V, 2+0 TNS, 2 Poles, Pluggable, 2 Modules, Remote indication
- EAN/UPC Code: 8435297851103
- RoHS Compliant: Yes
- IEC SPD Type: Class II
- UL SPD Type: Type 2 Component Assembly
- Format: Pluggable
- Nominal Operating Volt Rating (Un): 48
- AC or DC: AC
- Max Discharge Current : Imax (8/20): 40 kA
- Protection Modes: L-PE
- System Configuration: TNS
- Short Circuit Withstand (ISCCR): 25 kA
- Indication System: Yes
- Indication System Type: Green (OK) / Not green (replace) Microswitch
- Number of Poles: 2-Pole
- Torque Rating: 3 Nm
- Max. Back-Up Fuse: 125 A [gG]
- Housing Material: PA66 CT1
- MOV Response Time: ≤25
- Installation Mounting: DIN rail
- Replacement Plug N-PE: 77707680
- Replacement Plug L-N: 77707680
- Product Width: 36 mm
- Product Length: 70 mm
- Product Height: 90 mm
- Sell Pack Quantity: 1 EA
- Sell Pack Weight: 0.223 kg
- Sell Pack Width: 42 mm
- Sell Pack Length: 117 mm
- Sell Pack Height: 90 mm
- Product group: Power Line SPDs
- Product Weight: 0.193 kg
Product Code: 83020129
Key Benefits
- High surge current capacity with 40kA Imax (8/20 µs) for effective transient overvoltage protection.
- Pluggable 2-pole design allows for easy installation and replacement, reducing maintenance time.
- Compact two-module width saves valuable panel space.
- Remote indication feature provides real-time status monitoring to ensure system reliability.
- Suitable for 1Ph+N, 48V systems with 2+0 TNS configuration, ensuring compatibility with common electrical setups.
- Robust housing material (PA66 CT1) ensures durability in demanding industrial environments.
Compatibility
The STPT2-40K60V-2PM is compatible with single-phase plus neutral (1Ph+N) systems operating at 48V nominal voltage and designed for 2+0 TNS system configurations. It fits standard DIN rail mounting systems and supports backup fuses up to 125 A [gG], making it suitable for a wide range of industrial and commercial electrical installations requiring Type 2 surge protection.
Applications
- Protection of control panels and distribution boards in industrial facilities.
- Surge protection for sensitive electronic equipment in commercial buildings.
- Use in renewable energy systems requiring reliable transient overvoltage protection.
- Installation in infrastructure projects with 48V DC or AC power systems.
- Ideal for use in telecommunications and data centres to safeguard critical equipment.
Frequently Asked Questions
What is the maximum surge current this device can handle?
The STPT2-40K60V-2PM can handle a maximum discharge current (Imax) of 40 kA (8/20 µs waveform).
Does this surge protection device support remote status indication?
Yes, it features a remote indication system with a green (OK) / not green (replace) microswitch for real-time monitoring.
Can this device be installed on a DIN rail?
Yes, it is designed for easy installation on standard DIN rails.
What system configurations is this SPD compatible with?
This device is compatible with TNS system configurations, specifically 2+0 TNS.
Is the housing material durable for industrial environments?
Yes, the housing is made from PA66 CT1, a robust and durable material suitable for industrial use.
Common Search Terms
Type 2 surge protection device, 40kA SPD, 48V surge protector, pluggable SPD, DIN rail surge protector, remote indication SPD, 2-pole surge protector, TNS system SPD, industrial surge protection, power line SPD.
| Manufacturer Part Number | 83020129 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 8435297851103 |
| Height | 70mm |
| Width | 36mm |
| Depth | 90mm |
| HS Code | 85363090 |
| Country of Manufacture | Spain |
| Manufacturer | Mersen |
| Number of Poles | 2 Pole |
| Voltage | 48V |
| Maximum Continuous Voltage | 60V |
| Nominal Discharge Current | 20Ka |
| Remote Indication | Yes |
| System Type | TNS |
| Alternative Product SKU | STPT2-40K60V-2PM |
Write Your Own Review
Protection system of coordinated stages: Type 1, 2 and 3 SPDs
The SPDs of a surge protection system must be able to withstand the discharged current and provide a Ures level (residua l voltage) lower than the Ue peak voltage that the equipment can withstand. Most of the times it is not possible to achieve this with just one SPD, especially because the intensity of the surge is not known, and because of the induction of overvoltages when conductors exceed 10m.
The optimal system of protection is the 3-STEP approach, in which successive stages are combined in the performance of high discharge capacity devices and devices with an optimal voltage protection level (low). This is addressed by the definition of "Types" or "Classes" of SPDs according to the type of transient pulses to which each protected zone in the installation is subject to.
