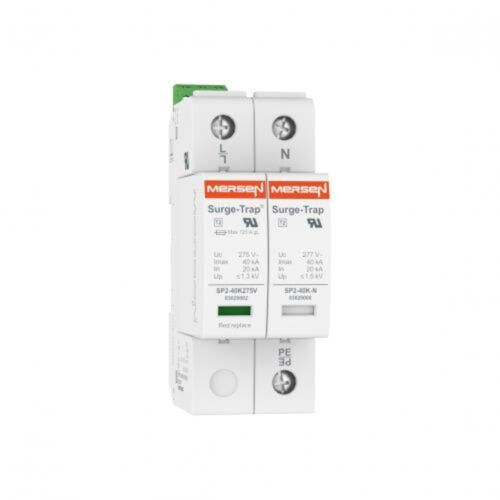

Mersen Surge Protector Type 2 SPD 2 Pole 230 Volt 20KA TT Remote Indication
MPN: 83020117
Alt. SKU: STPT2-40K275V-2PGM
This product is discontinued. Please view this replacement item.
Why Choose the Surge Protection Device Type 2 STPT2-40K275V-2PGM?
Engineered for robust protection, this Type 2 surge protection device offers a maximum discharge current of 40kA (8/20μs) for single-phase TT systems at 230V, effectively safeguarding critical equipment from transient overvoltages. With a 1Ph+N, 2-pole, 1+1 configuration, it supports optimal performance in demanding industrial and commercial installations.
The pluggable, two-module design ensures quick, safe maintenance and easy integration into existing panels. Remote indication provides fast status monitoring, reducing downtime and simplifying system management for reliable, compliant surge protection in essential applications.
Technical Specifications
- Item number: 83020117
- Catalogue No: STPT2-40K275V-2PGM
- Description: Surge Protection Device Type 2, 40kA Imax (8/20), 1Ph+N, 230/-V, 1+1 TT, 2 Poles, Pluggable, 2 Modules, Remote indication
- EAN/UPC Code: 8435297849193
- RoHS Compliant: Yes
- IEC SPD Type: Class II
- UL SPD Type: Type 2 Component Assembly
- Format: Pluggable
- Nominal Operating Volt Rating (Un): 230
- AC or DC: AC
- Max Discharge Current : Imax (8/20): 40 kA
- Protection Modes: L-N / N-PE
- System Configuration: TT, TNS
- Following Current (Ifi): 100 A
- Short Circuit Withstand (ISCCR): 25 kA
- Indication System: Yes
- Indication System Type: Green (OK) / Not green (replace) Microswitch
- Number of Poles: 2-Pole
- Torque Rating: 3 Nm
- Max. Back-Up Fuse: 125 A [gG]
- Housing Material: PA66 CT1
- Installation Mounting: DIN rail
- Uc (L-N): 275 V
- Uc (N-PE): 277 V
- Up at In (N-PE): ≤1,5 kV
- Up at In (L-N): ≤1,3 kV
- VPR L-G: 1500 V
- VPR N-G: 900 V
- VPR L-N: 900 V
- Replacement Plug N-PE: 83020000
- Replacement Plug L-N: 83020002
- Product Width: 36 mm
- Product Length: 70 mm
- Product Height: 90 mm
- Sell Pack Quantity: 1 EA
- Sell Pack Weight: 0.226 kg
- Sell Pack Width: 42 mm
- Sell Pack Length: 117 mm
- Sell Pack Height: 90 mm
- Product group: Power Line SPDs
- Product Weight: 0.195 kg
Product Code: 83020117
Key Benefits
- High surge current capacity of 40kA ensures superior protection against transient overvoltages.
- Pluggable two-module design allows for quick and safe maintenance without system downtime.
- Remote indication system provides clear status monitoring, facilitating proactive maintenance.
- Compact size with DIN rail mounting for easy integration into existing electrical panels.
- Complies with IEC Class II and UL Type 2 standards for reliable surge protection.
Compatibility
This surge protection device is compatible with single-phase TT and TNS electrical systems operating at 230V AC. It supports 1Ph+N configurations and is suitable for installations requiring 2-pole protection. The device is designed to be used with backup fuses up to 125 A [gG]. Replacement plugs with codes 83020000 (N-PE) and 83020002 (L-N) ensure continued compatibility and ease of maintenance.
Applications
- Industrial and commercial electrical distribution boards.
- Protection of sensitive electronic and electrical equipment against surges.
- Renewable energy installations requiring reliable surge protection.
- Building automation and control systems.
- Telecommunications and data centres.
Frequently Asked Questions
What is the maximum surge current this device can handle?
The device can handle a maximum discharge current of 40kA (8/20μs), providing robust protection against high-energy surges.
Can this SPD be used in TN systems?
Yes, this device is compatible with both TT and TNS (TN-S) system configurations.
How does the remote indication system work?
The remote indication uses a microswitch that changes from green (OK) to not green (replace) to signal the device status, allowing for remote monitoring of protection status.
Is the device easy to install and maintain?
Yes, the pluggable two-module design and DIN rail mounting enable quick installation and safe, straightforward maintenance.
Common Search Terms
Type 2 surge protector, 40kA SPD, 230V surge protection device, pluggable SPD, DIN rail surge protector, remote indication SPD, TT system surge protector, electrical panel surge protection.
| Manufacturer Part Number | 83020117 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 8435297849193 |
| Height | 70mm |
| Width | 36mm |
| Depth | 90mm |
| HS Code | 85363090 |
| Country of Manufacture | Spain |
| Manufacturer | Mersen |
| Number of Poles | 2 Pole |
| Voltage | 230V |
| Maximum Continuous Voltage | 275V |
| Nominal Discharge Current | 20Ka |
| Remote Indication | Yes |
| System Type | TT |
| Alternative Product SKU | STPT2-40K275V-2PGM |
Write Your Own Review
Protection system of coordinated stages: Type 1, 2 and 3 SPDs
The SPDs of a surge protection system must be able to withstand the discharged current and provide a Ures level (residua l voltage) lower than the Ue peak voltage that the equipment can withstand. Most of the times it is not possible to achieve this with just one SPD, especially because the intensity of the surge is not known, and because of the induction of overvoltages when conductors exceed 10m.
The optimal system of protection is the 3-STEP approach, in which successive stages are combined in the performance of high discharge capacity devices and devices with an optimal voltage protection level (low). This is addressed by the definition of "Types" or "Classes" of SPDs according to the type of transient pulses to which each protected zone in the installation is subject to.
