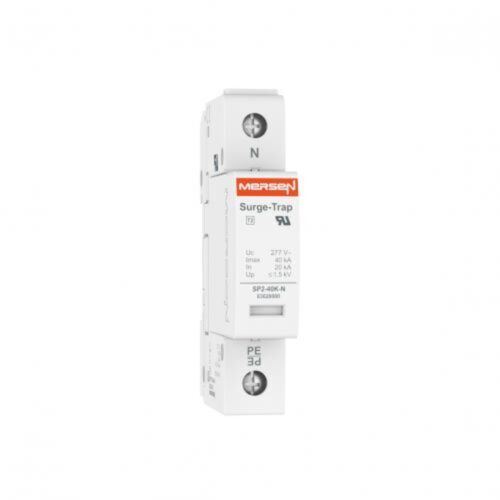

Mersen Surge Protector Type 2 SPD 1 Pole Neutral 20KA N-PE
MPN: 83020112
Alt. SKU: STPT2-40K-N
This product is discontinued. Please view this replacement item.
Why Choose the STPT2-40K-N Surge Protection Device?
The STPT2-40K-N is a robust Type 2 surge protection device, engineered to safeguard neutral conductors against transient overvoltages. Rated for 40kA Imax (8/20 μs), this pluggable, single-pole SPD ensures reliable performance in industrial and commercial LV distribution systems.
Its compact 1-module design simplifies installation while enabling rapid replacement. The STPT2-40K-N is an optimal choice for efficient, long-term protection of sensitive equipment against damaging surge events.
Product Code: 83020112
Key Benefits
- High surge current capacity of 40kA ensures robust protection against transient overvoltages.
- Compact 1-module design allows for easy installation and space-saving in distribution panels.
- Pluggable format enables quick and safe replacement without rewiring.
- Visual indication system with green (OK) and non-green (replace) microswitch for easy status monitoring.
- Complies with IEC Class II and UL Type 2 standards for reliable performance.
Compatibility
The STPT2-40K-N is compatible with standard DIN rail mounting systems and designed for use in low voltage (AC) distribution boards. It is suitable for integration into industrial and commercial power line surge protection schemes where neutral to protective earth (N-PE) protection is required.
Applications
- Protection of sensitive electronic equipment in industrial control panels.
- Surge protection in commercial building electrical installations.
- Use in low voltage power distribution systems requiring neutral conductor protection.
- Installation in switchgear and distribution boards to prevent damage from transient surges.
Technical Specifications
- Item number: 83020112
- Catalogue No: STPT2-40K-N
- Description: Surge Protection Device Type 2, 40kA Imax (8/20), N, Neutral, N, 1 Pole, Pluggable, 1 Module
- EAN/UPC Code: 8435297849186
- RoHS Compliant: Yes
- IEC SPD Type: Class II
- UL SPD Type: Type 2 Component Assembly
- Format: Pluggable
- AC or DC: AC
- Protection Modes: N-PE
- Following Current (Ifi): 100 A
- Short Circuit Withstand (ISCCR): 25 kA
- Indication System: Yes
- Indication System Type: Green (OK) / Not green (replace) Microswitch
- Number of Poles: 1-pole
- Housing Material: PA66 CT1
- Installation Mounting: DIN rail
- Product Width: 18 mm
- Product Length: 70 mm
- Product Height: 90 mm
- Sell Pack Quantity: 1 EA
- Sell Pack Weight: 0.159 kg
- Sell Pack Width: 24 mm
- Sell Pack Length: 117 mm
- Sell Pack Height: 90 mm
- Product group: Power Line SPDs
- Product Weight: 0.143 kg
Frequently Asked Questions
What is the maximum surge current the STPT2-40K-N can handle?
The device is rated for a maximum surge current (Imax) of 40kA with an 8/20 µs waveform.
Can the STPT2-40K-N be installed on a DIN rail?
Yes, it is designed for easy DIN rail mounting in distribution panels.
Does this SPD provide indication when it needs replacement?
Yes, it features a green (OK) / not green (replace) microswitch indication system.
Is the STPT2-40K-N suitable for DC applications?
No, this SPD is designed specifically for AC applications.
Common Search Terms
Surge protection device, SPD Type 2, neutral conductor protector, pluggable surge protector, 40kA surge arrester, DIN rail SPD, industrial surge protection, power line SPD, transient voltage protector.
| Manufacturer Part Number | 83020112 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 8435297849186 |
| Height | 70mm |
| Width | 18mm |
| Depth | 90mm |
| HS Code | 85363090 |
| Country of Manufacture | Spain |
| Manufacturer | Mersen |
| Number of Poles | 1 pole |
| Voltage | Neutral to Earth |
| Maximum Continuous Voltage | 265V |
| Nominal Discharge Current | 20Ka |
| System Type | N-PE |
| Alternative Product SKU | STPT2-40K-N |
Write Your Own Review
Protection system of coordinated stages: Type 1, 2 and 3 SPDs
The SPDs of a surge protection system must be able to withstand the discharged current and provide a Ures level (residua l voltage) lower than the Ue peak voltage that the equipment can withstand. Most of the times it is not possible to achieve this with just one SPD, especially because the intensity of the surge is not known, and because of the induction of overvoltages when conductors exceed 10m.
The optimal system of protection is the 3-STEP approach, in which successive stages are combined in the performance of high discharge capacity devices and devices with an optimal voltage protection level (low). This is addressed by the definition of "Types" or "Classes" of SPDs according to the type of transient pulses to which each protected zone in the installation is subject to.
