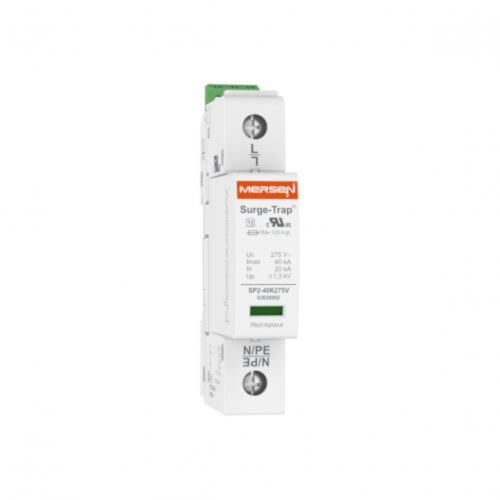

Mersen Surge Protector Type 2 SPD 1 Pole 230 Volt 20KA L-N Remote Indication
MPN: 83020107
Alt. SKU: STPT2-40K275V-1PM
This product is discontinued. Please view this replacement item.
Why Choose the STPT2-40K275V-1PM Surge Protection Device?
Engineered for reliable protection, the STPT2-40K275V-1PM is a Type 2 surge protection device rated at 40kA (Imax, 8/20µs) for single-phase 230V applications. Its compact, one-pole, one-module design ensures easy integration into existing distribution boards without compromising valuable panel space.
This pluggable SPD offers rapid replacement and maintenance, while built-in remote indication enables efficient status monitoring for critical systems. Trusted for safeguarding sensitive equipment against transient overvoltages, it delivers dependable performance in industrial and commercial environments.
Technical Specifications
- Item number: 83020107
- Catalogue No: STPT2-40K275V-1PM
- Description: Surge Protection Device Type 2, 40kA Imax (8/20), 1Ph, 230V, L-N, 1 Pole, Pluggable, 1 Module, Remote indication
- EAN/UPC Code: 8435297849155
- RoHS Compliant: Yes
- IEC SPD Type: Class II
- UL SPD Type: Type 2 Component Assembly
- Format: Pluggable
- Nominal Operating Volt Rating (Un): 230
- AC or DC: AC
- Nominal Discharge Current (In) (8/20): 20 kA
- Max Discharge Current : Imax (8/20): 40 kA
- Protection Modes: L - N / L-PE / N-PE
- System Configuration: TNS, TNC, TT (only L-N)
- Short Circuit Withstand (ISCCR): 25 kA
- Indication System: Yes
- Indication System Type: Green (OK) / Not green (replace) Microswitch
- Number of Poles: 1-pole
- Torque Rating: 3 Nm
- Max. Back-Up Fuse: 125 A [gG]
- Housing Material: PA66 CT1
- MOV Response Time: ≤25
- Installation Mounting: DIN rail
- VPR L-N: 900 V
- Replacement Plug L1: 83020002
- Product Width: 18 mm
- Product Length: 70 mm
- Product Height: 90 mm
- Sell Pack Quantity: 1 EA
- Sell Pack Weight: 0.142 kg
- Sell Pack Width: 24 mm
- Sell Pack Length: 117 mm
- Sell Pack Height: 90 mm
- Product group: Power Line SPDs
- Product Weight: 0.119 kg
Product Code: STPT2-40K275V-1PM
Key Benefits
- High surge current capacity of 40kA ensures robust protection against transient overvoltages.
- Compact one-pole, one-module design saves panel space and simplifies installation.
- Pluggable format allows for quick and easy replacement, reducing maintenance downtime.
- Built-in remote indication with microswitch enables efficient monitoring of device status.
- Compatible with multiple system configurations including TNS, TNC, and TT (L-N only).
- DIN rail mounting facilitates straightforward integration into standard distribution boards.
Compatibility
The STPT2-40K275V-1PM is compatible with single-phase 230V AC electrical systems and supports protection modes L-N, L-PE, and N-PE. It is suitable for use in TNS, TNC, and TT system configurations (L-N only). The device is designed for installation on standard DIN rails and can be integrated seamlessly into existing distribution boards.
Applications
- Industrial electrical distribution panels requiring surge protection.
- Commercial buildings with sensitive electronic equipment.
- Renewable energy systems needing transient overvoltage protection.
- Data centres and IT infrastructure for safeguarding critical loads.
- Manufacturing plants and automation systems.
Frequently Asked Questions
What is the maximum surge current this device can handle?
The STPT2-40K275V-1PM can handle a maximum discharge current (Imax) of 40kA (8/20µs waveform).
Can this SPD be used in three-phase systems?
This device is designed for single-phase 230V applications and is not suitable for three-phase systems.
How does the remote indication system work?
The SPD features a microswitch that changes state when the device needs replacement, allowing remote monitoring of its operational status.
Is the device RoHS compliant?
Yes, the STPT2-40K275V-1PM is RoHS compliant.
What type of mounting does this SPD require?
The device is designed for DIN rail mounting, enabling easy installation within standard distribution boards.
Common Search Terms
surge protection device, SPD 230V, Type 2 surge protector, pluggable SPD, 40kA surge arrester, single-phase surge protector, DIN rail SPD, remote indication surge protector, power line SPD
| Manufacturer Part Number | 83020107 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 8435297849155 |
| Height | 70mm |
| Width | 18mm |
| Depth | 90mm |
| HS Code | 85363090 |
| Country of Manufacture | Spain |
| Manufacturer | Mersen |
| Number of Poles | 1 pole |
| Voltage | 230V |
| Maximum Continuous Voltage | 275V |
| Nominal Discharge Current | 20Ka |
| Remote Indication | Yes |
| System Type | L-N |
| Alternative Product SKU | STPT2-40K275V-1PM |
