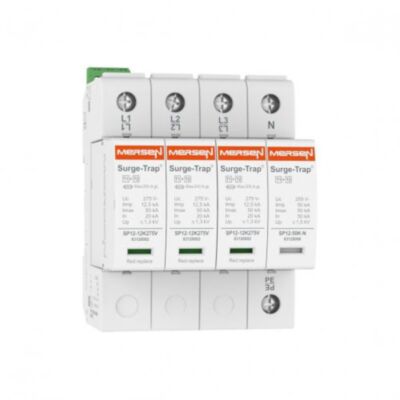

Mersen Surge Protector Type 2+3 SPD 4 Pole 120/208 Volt 10KA TNS Remote Indication
MPN: 83230131
Alt. SKU: STPT23-20K150V-4PM
Special Price
£124.86
£104.05
Regular Price
£166.48
Why Choose the STPT23-20K150V-4PM Surge Protection Device?
The STPT23-20K150V-4PM is a Type 2+3 surge protection device engineered for robust performance in 3-phase+N, 120/208V TNS systems. With a maximum discharge current of 20kA (8/20 μs) across four poles, it offers reliable protection against transient overvoltages caused by switching and indirect lightning strikes.
This pluggable, 4-module unit ensures fast installation, tool-free maintenance, and minimal downtime. Its remote indication function enables real-time status monitoring, supporting proactive maintenance and optimising site reliability for critical industrial and commercial environments.
Technical Specifications
- Item number: 83230131
- Catalogue No: STPT23-20K150V-4PM
- Description: Surge Protection Device Type 2+3, 20kA Imax (8/20), 3Ph+N, 120/208V, 4+0 TNS, 4 Poles, Pluggable, 4 Modules, Remote indication
- EAN/UPC Code: 8435297851134
- RoHS Compliant: Yes
- IEC SPD Type: Class II + III
- Format: Pluggable
- Nominal Operating Volt Rating (Un): 120/208
- AC or DC: AC
- Max Discharge Current : Imax (8/20): 20 kA
- Protection Modes: L-PE / N-PE
- System Configuration: TNS
- Combined Discharge Voltage (1,2/50) (Uoc): 10 kV
- Short Circuit Withstand (ISCCR): 25 kA
- Indication System: Yes
- Indication System Type: Green (OK) / Not green (replace) Microswitch
- Number of Poles: 4-Pole
- Torque Rating: 3 Nm
- Max. Back-Up Fuse: 63 A [gG]
- Housing Material: PA66 CT1
- MOV Response Time: ≤25
- Installation Mounting: DIN rail
- Replacement Plug L1: 83230001
- Product Width: 72 mm
- Product Length: 70 mm
- Product Height: 90 mm
- Sell Pack Quantity: 1 EA
- Sell Pack Weight: 0.39 kg
- Sell Pack Width: 78 mm
- Sell Pack Length: 117 mm
- Sell Pack Height: 90 mm
- Product group: Power Line SPDs
- Product Weight: 0.37 kg
Product Code: 83230131
Key Benefits
- High surge current capacity of 20kA ensures robust protection against transient voltage spikes.
- Pluggable 4-module design allows for quick installation and easy maintenance without tools.
- Remote indication system provides real-time status monitoring to prevent unexpected failures.
- Suitable for 3-phase+N, 120/208V TNS systems, offering versatile application in industrial and commercial settings.
- Compact DIN rail mounting saves space and simplifies integration into existing electrical panels.
Compatibility
The STPT23-20K150V-4PM is compatible with TNS system configurations operating at 120/208V AC. It is designed to integrate seamlessly with power distribution boards equipped with DIN rail mounting and supports backup fuses up to 63 A [gG]. Replacement plugs such as the 83230001 ensure ongoing maintainability.
Applications
- Industrial power distribution systems requiring surge protection.
- Commercial buildings with 3-phase+N electrical installations.
- Critical infrastructure needing reliable transient overvoltage suppression.
- Electrical panels where fast maintenance and remote monitoring are essential.
- Facilities exposed to indirect lightning strikes and switching surges.
Frequently Asked Questions
What type of systems is the STPT23-20K150V-4PM designed for?
It is designed for 3-phase+N TNS systems operating at 120/208V AC.
Can the device be installed without special tools?
Yes, the pluggable 4-module design allows for tool-free installation and maintenance.
Does this SPD provide status indication?
Yes, it features a green (OK) / not green (replace) microswitch for remote indication.
What is the maximum discharge current of this device?
The maximum discharge current is 20 kA (8/20 μs waveform).
Is the device RoHS compliant?
Yes, the STPT23-20K150V-4PM is RoHS compliant.
Common Search Terms
Surge protection device, SPD 20kA, Type 2+3 surge protector, 3-phase surge protection, 120/208V SPD, pluggable surge protector, DIN rail SPD, remote indication SPD, industrial surge protection, TNS system SPD.
| Manufacturer Part Number | 83230131 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 8435297851134 |
| Height | 70mm |
| Width | 72mm |
| Depth | 90mm |
| HS Code | 85363090 |
| Country of Manufacture | Spain |
| Manufacturer | Mersen |
| Number of Poles | 4 Pole |
| Voltage | 120/208V |
| Maximum Continuous Voltage | 150V |
| Nominal Discharge Current | 10Ka |
| Remote Indication | Yes |
| System Type | TNS |
| Alternative Product SKU | STPT23-20K150V-4PM |
Write Your Own Review
Protection system of coordinated stages: Type 1, 2 and 3 SPDs
The SPDs of a surge protection system must be able to withstand the discharged current and provide a Ures level (residua l voltage) lower than the Ue peak voltage that the equipment can withstand. Most of the times it is not possible to achieve this with just one SPD, especially because the intensity of the surge is not known, and because of the induction of overvoltages when conductors exceed 10m.
The optimal system of protection is the 3-STEP approach, in which successive stages are combined in the performance of high discharge capacity devices and devices with an optimal voltage protection level (low). This is addressed by the definition of "Types" or "Classes" of SPDs according to the type of transient pulses to which each protected zone in the installation is subject to.
