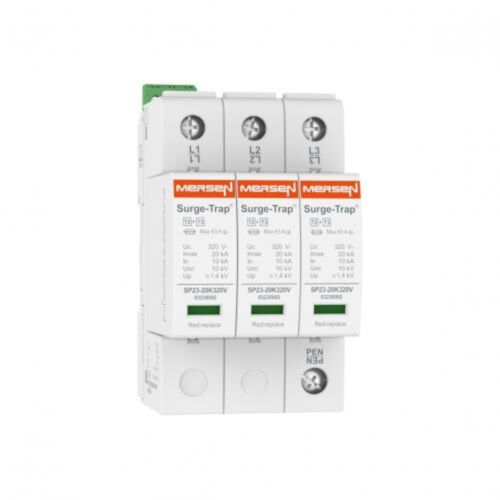

Mersen Surge Protector Type 2+3 SPD 3 Pole 400/480 Volt 10KA TNC Remote Indication
MPN: 83230123
Alt. SKU: STPT23-20K320V-3PM
Special Price
£92.36
£76.97
Regular Price
£124.98
Why Choose the STPT23-20K320V-3PM Surge Protection Device?
The STPT23-20K320V-3PM Type 2+3 Surge Protection Device offers robust overvoltage protection for three-phase systems at 400/480V, rated up to 20kA Imax (8/20μs). Featuring a 3+0 TNC configuration with three poles and pluggable modules, it ensures reliable defence against transient surges in industrial and commercial environments.
Designed for ease of maintenance and system integration, it provides remote indication for efficient status monitoring. Its compact three-module design allows straightforward installation, delivering enhanced protection for sensitive equipment and maximising system uptime.
Technical Specifications
- Item number: 83230123
- Catalogue No: STPT23-20K320V-3PM
- Description: Surge Protection Device Type 2+3, 20kA Imax (8/20), 3Ph, -/400; -/480V, 3+0 TNC, 3 Poles, Pluggable, 3 Modules, Remote indication
- EAN/UPC Code: 8435297849308
- RoHS Compliant: Yes
- IEC SPD Type: Class II + III
- Format: Pluggable
- Nominal Operating Volt Rating (Un): 277/480
- AC or DC: AC
- Max Discharge Current : Imax (8/20): 20 kA
- Protection Modes: L-PE(N)
- System Configuration: TNC
- Combined Discharge Voltage (1,2/50) (Uoc): 10 kV
- Short Circuit Withstand (ISCCR): 25 kA
- Indication System: Yes
- Indication System Type: Green (OK) / Not green (replace) Microswitch
- Number of Poles: 3-Pole
- Torque Rating: 3 Nm
- Max. Back-Up Fuse: 63 A [gG]
- Housing Material: PA66 CT1
- MOV Response Time: ≤25
- Installation Mounting: DIN rail
- Replacement Plug L1: 83230002
- Product Width: 54 mm
- Product Length: 70 mm
- Product Height: 90 mm
- Sell Pack Quantity: 1 EA
- Sell Pack Weight: 0.314 kg
- Sell Pack Width: 63 mm
- Sell Pack Length: 117 mm
- Sell Pack Height: 90 mm
- Product group: Power Line SPDs
- Product Weight: 0.274 kg
Product Code: 83230123
Key Benefits
- High surge current capacity of 20kA Imax (8/20µs) ensures robust protection against transient overvoltages.
- 3+0 TNC system configuration with three poles provides comprehensive three-phase protection.
- Pluggable module design allows easy replacement and maintenance without system downtime.
- Remote indication via green/not green microswitch enables efficient monitoring of device status.
- Compact and DIN rail mountable housing facilitates straightforward installation in control panels.
- Compliance with IEC SPD Class II + III standards guarantees reliable surge protection performance.
Compatibility
The STPT23-20K320V-3PM is compatible with three-phase TN-C electrical systems operating at nominal voltages of 277/480V AC. It is suitable for integration with systems requiring a maximum back-up fuse rating of 63 A [gG] and is designed for DIN rail mounting in industrial and commercial electrical distribution boards.
Applications
- Industrial electrical distribution systems requiring surge protection.
- Commercial buildings with three-phase power supply.
- Protection of sensitive electronic equipment from transient overvoltages.
- Power line surge protection in manufacturing plants and data centres.
- Renewable energy installations with three-phase configurations.
Frequently Asked Questions
What type of electrical system is this SPD designed for?
The STPT23-20K320V-3PM is designed for three-phase TN-C systems with nominal voltages of 277/480V AC.
How does the remote indication system work?
The device features a green (OK) / not green (replace) microswitch that provides remote signalling of the SPD’s operational status for easy monitoring.
Can the modules be replaced individually?
Yes, the pluggable module design allows individual modules to be replaced without removing the entire device.
What is the maximum surge current this device can handle?
The maximum discharge current (Imax) is 20 kA (8/20µs waveform).
Common Search Terms
surge protection device, SPD 3 phase, 20kA surge protector, DIN rail SPD, pluggable surge protector, remote indication SPD, industrial surge protection, power line SPD, IEC Class II+III SPD
| Manufacturer Part Number | 83230123 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 8435297849308 |
| Height | 70mm |
| Width | 54mm |
| Depth | 90mm |
| HS Code | 85363090 |
| Country of Manufacture | Spain |
| Manufacturer | Mersen |
| Number of Poles | 3 Pole |
| Voltage | 400/480V |
| Maximum Continuous Voltage | 320V |
| Nominal Discharge Current | 10Ka |
| Remote Indication | Yes |
| System Type | TNC |
| Alternative Product SKU | STPT23-20K320V-3PM |
Write Your Own Review
Protection system of coordinated stages: Type 1, 2 and 3 SPDs
The SPDs of a surge protection system must be able to withstand the discharged current and provide a Ures level (residua l voltage) lower than the Ue peak voltage that the equipment can withstand. Most of the times it is not possible to achieve this with just one SPD, especially because the intensity of the surge is not known, and because of the induction of overvoltages when conductors exceed 10m.
The optimal system of protection is the 3-STEP approach, in which successive stages are combined in the performance of high discharge capacity devices and devices with an optimal voltage protection level (low). This is addressed by the definition of "Types" or "Classes" of SPDs according to the type of transient pulses to which each protected zone in the installation is subject to.
