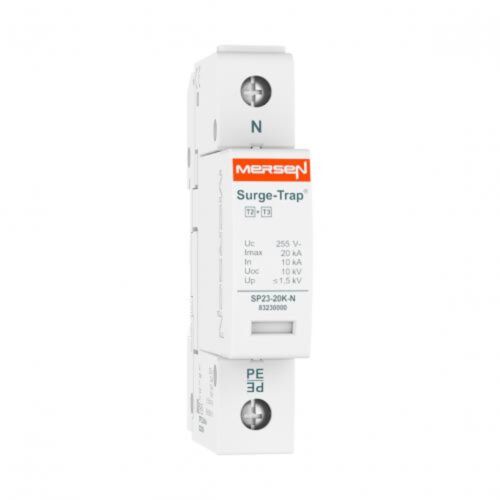

Mersen Surge Protector Type 2+3 SPD 1 Pole Neutral 10KA N-PE
MPN: 83230106
Alt. SKU: STPT23-20K-N
Special Price
£31.13
£25.94
Regular Price
£41.50
Why Choose the Surge Protection Device Type 2+3, 20kA Imax, Neutral, 1 Pole, Pluggable, 1 Module STPT23-20K-N?
This surge protection device offers robust Type 2+3 protection with a maximum discharge current of 20kA (8/20 μs), specifically engineered for neutral line safeguarding in single-pole applications. Its compact, pluggable 1-module design allows for easy installation and rapid maintenance in space-constrained distribution boards.
Ideal for critical infrastructure and industrial environments, the STPT23-20K-N delivers reliable performance to prevent downtime and equipment damage from transient overvoltages, ensuring long-term operational safety and compliance with latest standards.
Technical Specifications
- Item number: 83230106
- Catalogue No: STPT23-20K-N
- Description: Surge Protection Device Type 2+3, 20kA Imax (8/20), N, Neutral, 1 Pole, Pluggable, 1 Module
- EAN/UPC Code: 8435297849261
- RoHS Compliant: Yes
- IEC SPD Type: Class II + III
- Format: Pluggable
- AC or DC: AC
- Max Discharge Current : Imax (8/20): 20 kA
- Protection Modes: N-PE
- System Configuration: TT, TNS
- Combined Discharge Voltage (1,2/50) (Uoc): 10 kV
- Following Current (Ifi): 100 A
- Short Circuit Withstand (ISCCR): 25 kA
- Indication System: Yes
- Indication System Type: Green (OK) / Not green (replace)
- Number of Poles: 1-pole
- Torque Rating: 3 Nm
- Max. Back-Up Fuse: 63 A [gG]
- Housing Material: PA66 CT1
- MOV Response Time: ≤100 ns
- Installation Mounting: DIN rail
- Replacement Plug N-PE: 83230000
- Product Width: 18 mm
- Product Length: 70 mm
- Product Height: 90 mm
- Sell Pack Quantity: 1 EA
- Sell Pack Weight: 0.117 kg
- Sell Pack Width: 24 mm
- Sell Pack Length: 117 mm
- Sell Pack Height: 90 mm
- Product group: Power Line SPDs
- Product Weight: 0.093 kg
Product Code: 83230106
Key Benefits
- High surge current capacity of 20kA ensures robust protection against transient overvoltages.
- Compact 1-module pluggable design for easy installation and maintenance.
- Reliable neutral line protection in single-pole applications.
- Visual indication system for quick status checks (Green = OK, Not green = replace).
- Compatible with TT and TNS system configurations.
- Fast MOV response time (≤100 ns) minimises risk of equipment damage.
- Durable PA66 CT1 housing for long-term operational reliability.
Compatibility
The STPT23-20K-N surge protection device is compatible with TT and TNS electrical system configurations and designed for AC applications. It can be installed on DIN rails and is suitable for integration into distribution boards requiring neutral line protection with a maximum backup fuse rating of 63 A [gG]. Replacement plugs for N-PE are available under item number 83230000.
Applications
- Industrial electrical distribution panels
- Critical infrastructure surge protection
- Commercial building electrical systems
- Renewable energy installations requiring neutral line safeguarding
- Data centres and IT equipment protection
- Manufacturing facilities with sensitive electronic equipment
Frequently Asked Questions
What is the maximum surge current this device can handle?
The device can handle a maximum discharge current (Imax) of 20 kA (8/20 µs waveform).
Is this surge protector suitable for DC systems?
No, this model is designed specifically for AC systems only.
How does the indication system work?
The indication system uses a green colour to show the device is functioning correctly. If the indicator is not green, the device should be replaced.
Can this device be used in TN-S systems?
Yes, it is compatible with both TT and TN-S system configurations.
What mounting options are available?
The device is designed for DIN rail mounting for easy integration into distribution boards.
Common Search Terms
surge protection device, SPD type 2+3, neutral line surge protector, 20kA surge protector, pluggable surge device, DIN rail SPD, industrial surge protection, transient voltage suppressor, STPT23-20K-N, power line SPD
| Manufacturer Part Number | 83230106 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 8435297849261 |
| Height | 70mm |
| Width | 18mm |
| Depth | 90mm |
| HS Code | 85363090 |
| Country of Manufacture | Spain |
| Manufacturer | Mersen |
| Number of Poles | 1 pole |
| Voltage | Neutral to Earth |
| Maximum Continuous Voltage | 255V |
| Nominal Discharge Current | 10Ka |
| System Type | N-PE |
| Alternative Product SKU | STPT23-20K-N |
Write Your Own Review
Protection system of coordinated stages: Type 1, 2 and 3 SPDs
The SPDs of a surge protection system must be able to withstand the discharged current and provide a Ures level (residua l voltage) lower than the Ue peak voltage that the equipment can withstand. Most of the times it is not possible to achieve this with just one SPD, especially because the intensity of the surge is not known, and because of the induction of overvoltages when conductors exceed 10m.
The optimal system of protection is the 3-STEP approach, in which successive stages are combined in the performance of high discharge capacity devices and devices with an optimal voltage protection level (low). This is addressed by the definition of "Types" or "Classes" of SPDs according to the type of transient pulses to which each protected zone in the installation is subject to.
