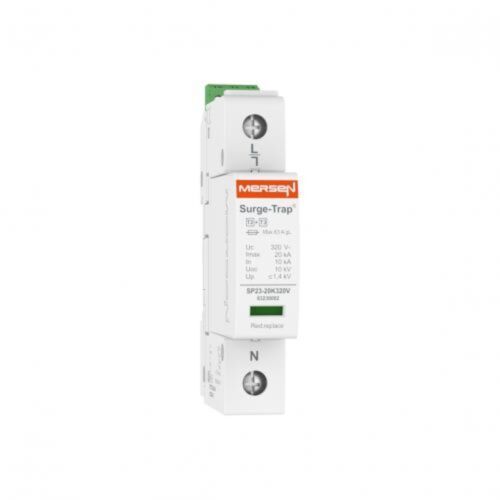

Mersen Surge Protector Type 2+3 SPD 1 Pole 230/277 Volt 10KA L-N Remote Indication
MPN: 83230103
Alt. SKU: STPT23-20K320V-1PM
Special Price
£32.02
£26.68
Regular Price
£43.33
Why Choose the Surge Protection Device Type 2+3 STPT23-20K320V-1PM?
The STPT23-20K320V-1PM is engineered for effective protection of single-phase 230/277V power systems against transient overvoltages. With a maximum discharge current (Imax) of 20kA (8/20μs), it ensures reliable safeguarding of sensitive equipment in commercial and industrial installations.
This compact, pluggable, 1-pole SPD offers straightforward DIN rail mounting, rapid replacement, and remote fault indication for simplified diagnostics and maintenance. Ideal for robust protection where space and fast serviceability are essential.
Product Code: 83230103
Key Benefits
- High surge current capacity of 20kA ensures robust protection against transient overvoltages.
- Compact and pluggable design allows for easy installation and quick replacement on DIN rails.
- Remote fault indication simplifies maintenance and reduces downtime.
- Suitable for single-phase 230/277V systems, compatible with multiple system configurations.
- Reliable indication system with green (OK) and microswitch for replacement alerts.
Compatibility
This Surge Protection Device is compatible with TNS, TNC, and TT power system configurations, specifically designed for L-N protection. It supports single-phase 230/277V AC systems and can be integrated with backup fuses up to 63 A [gG].
Applications
- Commercial and industrial electrical installations requiring surge protection.
- Protection of sensitive electronic equipment in power distribution panels.
- Use in systems with limited space where compact, modular devices are preferred.
- Environments requiring quick diagnostics and maintenance via remote indication.
Technical Specifications
- Item number: 83230103
- Catalogue No: STPT23-20K320V-1PM
- Description: Surge Protection Device Type 2+3, 20kA Imax (8/20), 1Ph, 230; 277V, L-N, 1 Pole, Pluggable, 1 Module, Remote indication
- EAN/UPC Code: 8435297849254
- RoHS Compliant: Yes
- IEC SPD Type: Class II + III
- Format: Pluggable
- Nominal Operating Volt Rating (Un): 277
- AC or DC: AC
- Max Discharge Current : Imax (8/20): 20 kA
- Protection Modes: L - N / L-PE / N-PE
- System Configuration: TNS, TNC, TT (only L-N)
- Combined Discharge Voltage (1,2/50) (Uoc): 10 kV
- Short Circuit Withstand (ISCCR): 25 kA
- Indication System: Yes
- Indication System Type: Green (OK) / Not green (replace) Microswitch
- Number of Poles: 1-pole
- Torque Rating: 3 Nm
- Max. Back-Up Fuse: 63 A [gG]
- Housing Material: PA66 CT1
- MOV Response Time: ≤25
- Installation Mounting: DIN rail
- MCOV L-G: 175 V
- MCOV L-L: 350 V
- Replacement Plug L1: 83230002
- Product Width: 18 mm
- Product Length: 70 mm
- Product Height: 90 mm
- Sell Pack Quantity: 1 EA
- Sell Pack Weight: 0.135 kg
- Sell Pack Width: 24 mm
- Sell Pack Length: 117 mm
- Sell Pack Height: 90 mm
- Product group: Power Line SPDs
- Product Weight: 0.115 kg
Frequently Asked Questions
What type of systems is this SPD suitable for?
The STPT23-20K320V-1PM is suitable for single-phase 230/277V AC power systems configured as TNS, TNC, and TT (only L-N).
How does the remote indication work?
The device features a microswitch that changes state when the SPD needs replacement, enabling remote fault indication for easier maintenance.
Can this SPD be used with backup fuses?
Yes, it supports a maximum backup fuse rating of 63 A [gG].
Is this device RoHS compliant?
Yes, the STPT23-20K320V-1PM is RoHS compliant.
Common Search Terms
surge protection device, SPD type 2+3, 20kA surge protector, single-phase SPD, DIN rail surge protector, remote indication SPD, 230V surge protector, pluggable SPD module
| Manufacturer Part Number | 83230103 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 8435297849254 |
| Height | 70mm |
| Width | 18mm |
| Depth | 90mm |
| HS Code | 85363090 |
| Country of Manufacture | Spain |
| Manufacturer | Mersen |
| Number of Poles | 1 pole |
| Voltage | 230/277V |
| Maximum Continuous Voltage | 320V |
| Nominal Discharge Current | 10Ka |
| Remote Indication | Yes |
| System Type | L-N |
| Alternative Product SKU | STPT23-20K320V-1PM |
Write Your Own Review
Protection system of coordinated stages: Type 1, 2 and 3 SPDs
The SPDs of a surge protection system must be able to withstand the discharged current and provide a Ures level (residua l voltage) lower than the Ue peak voltage that the equipment can withstand. Most of the times it is not possible to achieve this with just one SPD, especially because the intensity of the surge is not known, and because of the induction of overvoltages when conductors exceed 10m.
The optimal system of protection is the 3-STEP approach, in which successive stages are combined in the performance of high discharge capacity devices and devices with an optimal voltage protection level (low). This is addressed by the definition of "Types" or "Classes" of SPDs according to the type of transient pulses to which each protected zone in the installation is subject to.
