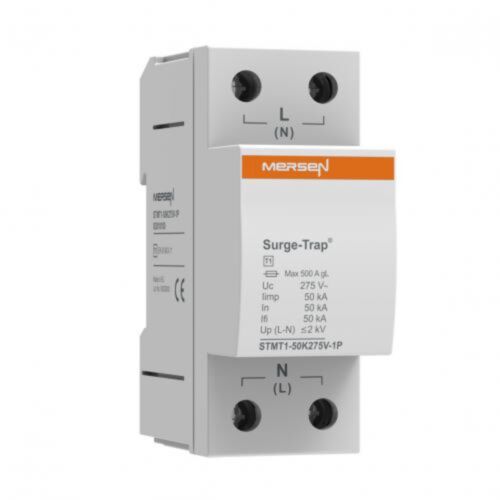

Mersen Surge Protector Type 1 SPD 1 Pole 230 Volt 50KA L-N
MPN: 83010100
Special Price
£180.04
£150.03
Regular Price
£243.61
Why Choose the Surge Protection Device Type 1, 50kA Iimp (10/350), 1Ph, 230V, L-N, 1 Pole, Monobloc, 2 Modules STMT1-50K275V-1P?
Engineered for robust protection, this Type 1 monobloc surge protection device is designed to safely divert high-energy surges up to 50kA (10/350 μs) in single-phase 230V installations with L-N configuration. Its compact 2-module construction enables easy integration into new or existing distribution boards, ensuring critical equipment is safeguarded against transient overvoltages typically caused by direct lightning strikes or heavy industrial switching.
Tested and certified to meet stringent international standards, the STMT1-50K275V-1P offers reliable, maintenance-free operation with visual status indication for rapid diagnostics. Choose this device to provide peace of mind and enhanced system longevity in commercial, industrial, or infrastructure applications.
Technical Specifications
- Item number: 83010100
- Catalogue No: STMT1-50K275V-1P
- Description: Surge Protection Device Type 1, 50kA Iimp (10/350), 1Ph, 230V, L-N, 1 Pole, Monobloc, 2 Modules
- EAN/UPC Code: 8435297849070
- RoHS Compliant: Yes
- IEC SPD Type: Class I
- Format: Monobloc
- Nominal Operating Volt Rating (Un): 230
- AC or DC: AC
- Protection Modes: L - N / L-PE / N-PE
- System Configuration: TNS, TNC, TT (only L-N)
- Lightning Impulse Current (10/350) (LIMP): 50 kA
- Following Current (Ifi): 50 kA
- Short Circuit Withstand (ISCCR): 50 kA
- Number of Poles: 1-pole
- Torque Rating: 3 Nm
- MOV Response Time: ≤100 ns
- Installation Mounting: DIN rail
- Product Width: 36 mm
- Product Length: 70 mm
- Product Height: 90 mm
- Sell Pack Quantity: 1 EA
- Sell Pack Weight: 0.285 kg
- Sell Pack Width: 42 mm
- Sell Pack Length: 117 mm
- Sell Pack Height: 90 mm
- Product group: Power Line SPDs
- Product Weight: 0.254 kg
Product Code: 83010100
Key Benefits
- High surge current capacity of 50kA (10/350 μs) ensures robust protection against direct lightning strikes.
- Compact 2-module monobloc design allows easy installation on standard DIN rails.
- Visual status indication enables quick and easy diagnostics without the need for specialised tools.
- Maintenance-free operation reduces total cost of ownership and downtime.
- Complies with international standards for safety and performance, ensuring reliable protection.
Compatibility
This surge protection device is compatible with single-phase 230V AC electrical systems configured for L-N protection. It is suitable for use in TNS, TNC, and TT systems (only L-N). Designed for integration into commercial and industrial distribution boards with DIN rail mounting.
Applications
- Commercial buildings and office complexes
- Industrial facilities and manufacturing plants
- Infrastructure projects including transportation and utilities
- Renewable energy installations requiring surge protection
- Any electrical distribution system requiring Type 1 surge protection
Frequently Asked Questions
What does Type 1 surge protection mean?
Type 1 surge protection devices are designed to protect electrical installations from direct lightning strikes and high-energy surges by safely diverting large transient currents.
Can this device be used in three-phase systems?
This specific model is designed for single-phase 230V systems with L-N protection and is not suitable for three-phase systems.
How do I know if the device is functioning correctly?
The device includes a visual status indicator that shows whether the SPD is operational or needs replacement.
Is the installation tool-free?
The device mounts on a standard DIN rail and requires a torque of 3 Nm for secure terminal connections, so a suitable screwdriver is necessary.
Common Search Terms
surge protection device, SPD Type 1, 50kA surge protector, 230V surge protector, monobloc SPD, single-phase surge protection, DIN rail SPD, lightning protection device, industrial surge protector
| Manufacturer Part Number | 83010100 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 8435297849070 |
| Manufacturer | Mersen |
| Number of Poles | 1 pole |
| Voltage | 230V |
| Maximum Continuous Voltage | 275V |
| Nominal Discharge Current | 50Ka |
| System Type | L-N |
Write Your Own Review
Protection system of coordinated stages: Type 1, 2 and 3 SPDs
The SPDs of a surge protection system must be able to withstand the discharged current and provide a Ures level (residua l voltage) lower than the Ue peak voltage that the equipment can withstand. Most of the times it is not possible to achieve this with just one SPD, especially because the intensity of the surge is not known, and because of the induction of overvoltages when conductors exceed 10m.
The optimal system of protection is the 3-STEP approach, in which successive stages are combined in the performance of high discharge capacity devices and devices with an optimal voltage protection level (low). This is addressed by the definition of "Types" or "Classes" of SPDs according to the type of transient pulses to which each protected zone in the installation is subject to.
