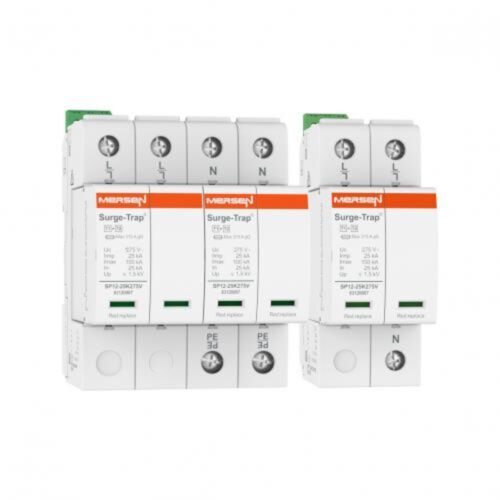

Mersen Surge Protector Type 1+2 SPD 2 Pole 230 Volt 25KA TT
MPN: 83120154
Special Price
£226.37
£188.64
Regular Price
£306.31
Why Choose the STPT12-25K275V-2PG Surge Protection Device?
The STPT12-25K275V-2PG offers robust Type 1+2 surge protection with a high impulse current rating of 25kA (10/350μs), ensuring reliable safeguarding of electrical installations against lightning strikes and transient overvoltages in 1Ph+N, 230V TT systems.
Featuring a pluggable design for straightforward replacement, this 2-pole, 4-module device streamlines installation and maintenance. Engineered for durability in industrial and commercial environments, it guarantees dependable protection and optimal performance.
Product Code: 83120154
Key Benefits
- High impulse current rating of 25kA (10/350μs) for superior surge protection
- Pluggable design enables easy replacement and maintenance
- Suitable for 1Ph+N, 230V TT systems ensuring versatile application
- Compact 2-pole, 4-module format saves installation space
- Visual indication system for quick status checks (Green = OK, Not green = Replace)
- Durable PA66 CT1 housing material for enhanced longevity
Compatibility
This surge protection device is compatible with TT and TNS system configurations operating at 230V AC. It is designed to integrate seamlessly with power line surge protection setups requiring Type 1+2 SPD classification and supports maximum back-up fuse ratings up to 315 A [gG]. Replacement plugs for N-PE and L-N are available under codes 83120008 and 83120007 respectively.
Applications
- Industrial electrical installations requiring high-level surge protection
- Commercial buildings with 1Ph+N, 230V TT power systems
- Protection of sensitive electrical and electronic equipment from transient overvoltages
- Lightning protection in areas prone to frequent electrical storms
- DIN rail mounted electrical distribution boards
Technical Specifications
- Item number: 83120154
- Catalogue No: STPT12-25K275V-2PG
- Description: Surge Protection Device Type 1+2, 25kA Iimp (10/350), 1Ph+N, 230/-V, 1+1 TT, 2 Poles, Pluggable, 4 Modules
- EAN/UPC Code: 8435297859079
- RoHS Compliant: Yes
- IEC SPD Type: Class I+II
- Format: Pluggable
- Nominal Operating Volt Rating (Un): 230
- AC or DC: AC
- Max Discharge Current : Imax (8/20): 100 kA
- Protection Modes: L-N / N-PE
- System Configuration: TT, TNS
- Lightning Impulse Current (10/350) (LIMP): 25 kA
- Short Circuit Withstand (ISCCR): 25 kA
- Indication System: Yes
- Indication System Type: Green (OK) / Not green (replace)
- Number of Poles: 2-Pole
- Torque Rating: 3 Nm
- Max. Back-Up Fuse: 315 A [gG]
- Housing Material: PA66 CT1
- Installation Mounting: DIN rail
- Uc (L-N): 275 V
- Uc (N-PE): 255 V
- Up at In (L-N): ≤1,5 kV
- Up at In (L-PE): ≤1,5 kV
- Replacement Plug N-PE: 83120008
- Replacement Plug L-N: 83120007
- Product Width: 108 mm
- Product Length: 76 mm
- Product Height: 90 mm
- Sell Pack Quantity: 1 EA
- Sell Pack Weight: 0.668 kg
- Sell Pack Width: 78 mm
- Sell Pack Length: 117 mm
- Sell Pack Height: 90 mm
- Product group: Power Line SPDs
- Product Weight: 0.624 kg
Frequently Asked Questions
What is the maximum impulse current this SPD can handle?
The STPT12-25K275V-2PG can handle a lightning impulse current of 25kA (10/350μs waveform).
Is this device suitable for both TT and TNS systems?
Yes, it is compatible with both TT and TNS system configurations.
How does the indication system work?
The device features a green indicator when functioning correctly; if the indicator is not green, the unit should be replaced.
Can the surge protection modules be replaced individually?
Yes, the pluggable format allows for straightforward replacement of the individual modules using replacement plugs 83120007 (L-N) and 83120008 (N-PE).
Common Search Terms
Surge protection device, SPD Type 1+2, 25kA surge protector, pluggable SPD, 230V surge protection, lightning protection device, DIN rail SPD, industrial surge protector, TT system SPD, power line surge protector
| Manufacturer Part Number | 83120154 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 8435297859079 |
| Manufacturer | Mersen |
| Number of Poles | 2 Pole |
| Voltage | 230V |
| Maximum Continuous Voltage | 275V |
| Nominal Discharge Current | 25Ka |
| System Type | TT |
Write Your Own Review
Protection system of coordinated stages: Type 1, 2 and 3 SPDs
The SPDs of a surge protection system must be able to withstand the discharged current and provide a Ures level (residua l voltage) lower than the Ue peak voltage that the equipment can withstand. Most of the times it is not possible to achieve this with just one SPD, especially because the intensity of the surge is not known, and because of the induction of overvoltages when conductors exceed 10m.
The optimal system of protection is the 3-STEP approach, in which successive stages are combined in the performance of high discharge capacity devices and devices with an optimal voltage protection level (low). This is addressed by the definition of "Types" or "Classes" of SPDs according to the type of transient pulses to which each protected zone in the installation is subject to.
