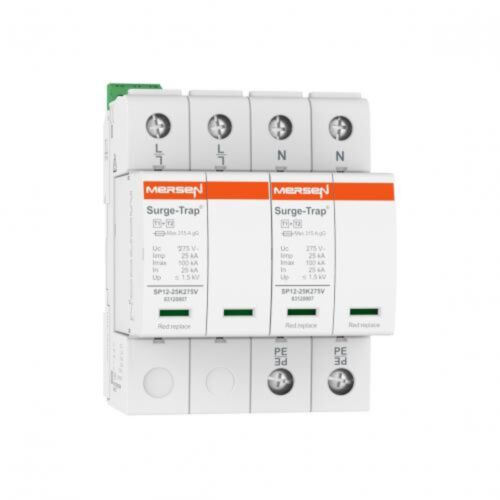

Mersen Surge Protector Type 1+2 SPD 2 Pole 230 Volt 25KA TNS Remote Indication
MPN: 83120157
Alt. SKU: STPT12-25K275V-2PM
Special Price
£267.86
£223.22
Regular Price
£362.46
Why Choose the STPT12-25K275V-2PM Surge Protection Device?
The STPT12-25K275V-2PM Type 1+2 SPD delivers robust protection for single-phase TN-S systems, providing a rated impulse current (Iimp) of 25kA (10/350 μs) per pole for maximum reliability against direct and indirect lightning strikes. Its 2-pole, 4-module design supports 230 V applications, ensuring seamless integration in critical industrial and commercial installations.
The pluggable modules allow easy replacement without system downtime, while remote indication enables real-time status monitoring for proactive maintenance. Engineered for durability and ease of installation, this SPD achieves excellent surge protection and compliance with demanding operational environments.
Technical Specifications
- Item number: 83120157
- Catalogue No: STPT12-25K275V-2PM
- Description: Surge Protection Device Type 1+2, 25kA Iimp (10/350), 1Ph+N, 230/-V, 2+0 TNS, 2 Poles, Pluggable, 4 Modules, Remote indication
- EAN/UPC Code: 8435297859109
- RoHS Compliant: Yes
- IEC SPD Type: Class I+II
- Format: Pluggable
- Nominal Operating Volt Rating (Un): 230
- AC or DC: AC
- Max Discharge Current : Imax (8/20): 100 kA
- Protection Modes: L-PE / N-PE
- System Configuration: TNS
- Lightning Impulse Current (10/350) (LIMP): 25 kA
- Short Circuit Withstand (ISCCR): 25 kA
- Indication System: Yes
- Indication System Type: Green (OK) / Not green (replace) Microswitch
- Number of Poles: 2-Pole
- Torque Rating: 3 Nm
- Max. Back-Up Fuse: 315 A [gG]
- Housing Material: PA66 CT1
- MOV Response Time: ≤25
- Installation Mounting: DIN rail
- Replacement Plug L1: 83120007
- Product Width: 72 mm
- Product Length: 76 mm
- Product Height: 90 mm
- Sell Pack Quantity: 1 EA
- Sell Pack Weight: 0.664 kg
- Sell Pack Width: 78 mm
- Sell Pack Length: 117 mm
- Sell Pack Height: 90 mm
- Product group: Power Line SPDs
- Product Weight: 0.621 kg
Product Code: 83120157
Key Benefits
- High impulse current rating of 25kA per pole ensures reliable protection against lightning strikes.
- Pluggable 4-module design allows for easy maintenance and replacement without system downtime.
- Remote indication feature provides real-time status monitoring for proactive surge protection management.
- Compact DIN rail mounting facilitates quick and secure installation in industrial panels.
- Robust housing material (PA66 CT1) offers durability in demanding environments.
- Compliance with IEC Class I+II standards guarantees high-quality surge protection performance.
Compatibility
The STPT12-25K275V-2PM is designed specifically for single-phase TN-S electrical systems operating at 230 V AC. It is compatible with systems requiring 2-pole surge protection and supports connection to L-PE and N-PE protection modes. Suitable for integration with backup fuses up to 315 A [gG].
Applications
- Industrial and commercial electrical distribution panels.
- Buildings with TN-S earthing systems requiring surge protection.
- Critical infrastructure installations needing reliable lightning and surge defence.
- Renewable energy systems with sensitive electronic components.
- Data centres and telecommunications facilities.
Frequently Asked Questions
What type of electrical systems is this SPD suitable for?
The STPT12-25K275V-2PM is suitable for single-phase TN-S systems operating at 230 V AC.
Can the modules be replaced without shutting down the system?
Yes, the pluggable modules allow for easy replacement without system downtime.
Does this device provide remote status indication?
Yes, it includes a remote indication feature using a microswitch to signal device status.
What is the maximum backup fuse rating compatible with this SPD?
The maximum backup fuse rating is 315 A [gG].
Common Search Terms
surge protection device, SPD, Type 1+2 SPD, 25kA surge protector, 230V surge protector, pluggable SPD, DIN rail SPD, lightning protection device, TN-S system surge protection, remote indication SPD
| Manufacturer Part Number | 83120157 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 8435297859109 |
| Height | 76mm |
| Width | 72mm |
| Depth | 90mm |
| HS Code | 85363090 |
| Country of Manufacture | Spain |
| Manufacturer | Mersen |
| Number of Poles | 2 Pole |
| Voltage | 230V |
| Maximum Continuous Voltage | 275V |
| Nominal Discharge Current | 25Ka |
| Remote Indication | Yes |
| System Type | TNS |
| Alternative Product SKU | STPT12-25K275V-2PM |
Write Your Own Review
Protection system of coordinated stages: Type 1, 2 and 3 SPDs
The SPDs of a surge protection system must be able to withstand the discharged current and provide a Ures level (residua l voltage) lower than the Ue peak voltage that the equipment can withstand. Most of the times it is not possible to achieve this with just one SPD, especially because the intensity of the surge is not known, and because of the induction of overvoltages when conductors exceed 10m.
The optimal system of protection is the 3-STEP approach, in which successive stages are combined in the performance of high discharge capacity devices and devices with an optimal voltage protection level (low). This is addressed by the definition of "Types" or "Classes" of SPDs according to the type of transient pulses to which each protected zone in the installation is subject to.
