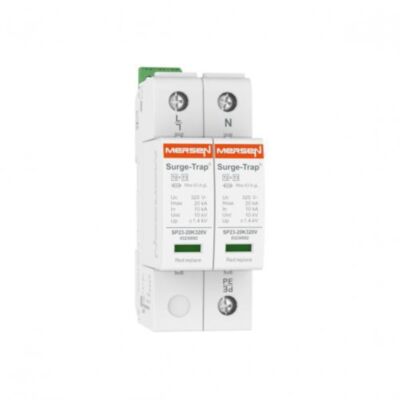

Mersen Surge Protector Type 1+2 SPD 2 Pole 230/400 Volt 20KA IT/TNS R.I
MPN: 83120125
Alt. SKU: STPT12-12K440V-2PM
Special Price
£168.34
£140.28
Regular Price
£224.45
Why Choose the Surge Protection Device Type 1+2, STPT12-12K440V-2PM?
This Type 1+2 Surge Protection Device, rated at 12.5kA Iimp (10/350) per pole, ensures robust protection against transient and lightning-induced surges in both IT and TNS systems. Engineered for 1Ph+N applications at 230/400V, its 2-pole, pluggable design guarantees ease of maintenance and reliable continuity in critical installations.
Compact in a 2-module DIN rail housing, it features remote indication for real-time monitoring and swift status assessment. Ideal for industrial and commercial environments demanding premium surge resilience and minimal downtime.
Product Code: 83120125
Key Benefits
- High surge current capacity with 12.5kA lightning impulse current per pole for superior protection.
- Pluggable 2-pole design allows for easy installation and maintenance without system downtime.
- Remote indication system provides real-time status monitoring to ensure device functionality.
- Compact 2-module DIN rail housing saves panel space in electrical installations.
- Suitable for both IT and TNS system configurations, enhancing versatility.
Compatibility
This surge protection device is compatible with 1-phase plus neutral (1Ph+N) electrical systems operating at 230/400V AC. It is designed for use in TNS and IT system configurations and can be integrated into industrial and commercial power distribution panels with DIN rail mounting. The device supports a maximum back-up fuse rating of 200 A [gG].
Applications
- Industrial power distribution boards requiring surge protection.
- Commercial building electrical installations with critical equipment.
- Protection of sensitive electronics from transient overvoltages.
- Lightning-prone areas needing robust surge mitigation.
- Renewable energy systems with AC distribution networks.
Technical Specifications
- Item number: 83120125
- Catalogue No: STPT12-12K440V-2PM
- Description: Surge Protection Device Type 1+2, 12.5kA Iimp (10/350), 1Ph+N, 230/-; 400/-V, 2+0 IT; TNS, 2 Poles, Pluggable, 2 Modules, Remote indication
- EAN/UPC Code: 8435297849360
- RoHS Compliant: Yes
- IEC SPD Type: Class I+II
- Format: Pluggable
- Nominal Operating Volt Rating (Un): 400
- AC or DC: AC
- Max Discharge Current : Imax (8/20): 50 kA
- Protection Modes: L-PE / N-PE
- System Configuration: TNS
- Lightning Impulse Current (10/350) (LIMP): 12.5 kA
- Short Circuit Withstand (ISCCR): 25 kA
- Indication System: Yes
- Indication System Type: Green (OK) / Not green (replace) Microswitch
- Number of Poles: 2-Pole
- Torque Rating: 3 Nm
- Max. Back-Up Fuse: 200 A [gG]
- Housing Material: PA66 CT1
- MOV Response Time: ≤25
- Installation Mounting: DIN rail
- Replacement Plug N-PE: 83120004
- Replacement Plug L-N: 83120004
- Product Width: 36 mm
- Product Length: 76 mm
- Product Height: 90 mm
- Sell Pack Quantity: 1 EA
- Sell Pack Weight: 0.382 kg
- Sell Pack Width: 42 mm
- Sell Pack Length: 117 mm
- Sell Pack Height: 90 mm
- Product group: Power Line SPDs
- Product Weight: 0.351 kg
Frequently Asked Questions
What is the maximum surge current this device can handle?
The device can handle a maximum discharge current (Imax) of 50 kA (8/20 µs) and a lightning impulse current (LIMP) of 12.5 kA (10/350 µs) per pole.
Can this SPD be used in both IT and TNS systems?
Yes, it is designed for use in both IT and TNS system configurations.
Does this device provide remote status indication?
Yes, it features a remote indication system with a microswitch that signals green when the device is operational and changes when replacement is needed.
What is the mounting method for this SPD?
The device is mounted on a standard DIN rail for easy installation and replacement.
Is this product RoHS compliant?
Yes, the product complies with RoHS standards.
Common Search Terms
surge protection device, SPD Type 1+2, 12.5kA surge protector, pluggable SPD, DIN rail surge protector, lightning surge protection, 1Ph+N SPD, remote indication SPD, industrial surge protection, TNS system SPD
| Manufacturer Part Number | 83120125 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 8435297849360 |
| Height | 76mm |
| Width | 36mm |
| Depth | 90mm |
| HS Code | 85363090 |
| Country of Manufacture | Spain |
| Manufacturer | Mersen |
| Number of Poles | 2 Pole |
| Voltage | 230/400V |
| Maximum Continuous Voltage | 440V |
| Nominal Discharge Current | 20Ka |
| System Type | IT/TNS |
| Alternative Product SKU | STPT12-12K440V-2PM |
Write Your Own Review
Protection system of coordinated stages: Type 1, 2 and 3 SPDs
The SPDs of a surge protection system must be able to withstand the discharged current and provide a Ures level (residua l voltage) lower than the Ue peak voltage that the equipment can withstand. Most of the times it is not possible to achieve this with just one SPD, especially because the intensity of the surge is not known, and because of the induction of overvoltages when conductors exceed 10m.
The optimal system of protection is the 3-STEP approach, in which successive stages are combined in the performance of high discharge capacity devices and devices with an optimal voltage protection level (low). This is addressed by the definition of "Types" or "Classes" of SPDs according to the type of transient pulses to which each protected zone in the installation is subject to.
