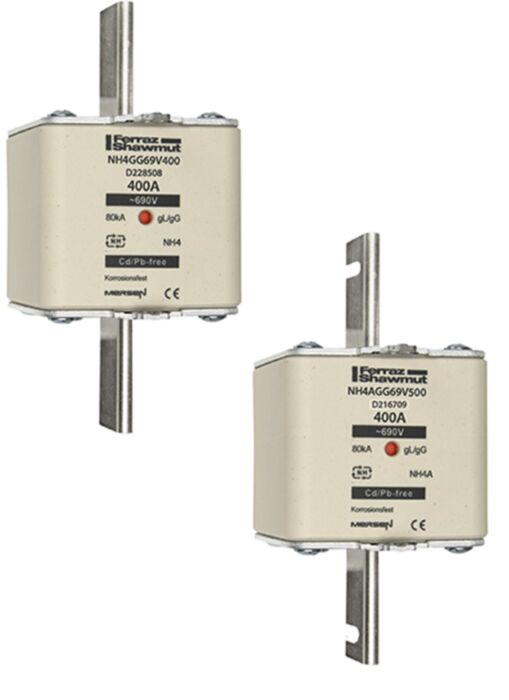

MERSEN FUSE NH 4A 1000A 690V GG MID IND NH4AGG69V1000
MPN: H1054304
Alt. SKU: NH4AGG69V1000
Special Price
£248.29
£206.91
Regular Price
£451.44
Why Choose the DIN NH Standard Fuse-Link gG Size NH4a 690VAC 250VDC 1000A Live Tags Centre Indicator Body Width 100 mm NH4AGG69V1000?
This high-performance fuse-link is engineered to DIN NH standards, providing reliable protection for power distribution systems with rated voltages up to 690VAC and 250VDC at 1000A. Its robust construction and gG characteristic ensure effective circuit safeguarding against overloads and short circuits.
Featuring live tags, a clear centre indicator for rapid status checks, and a wide 100 mm body for secure installation, the NH4AGG69V1000 is ideal for demanding industrial applications requiring uncompromising safety and long-term durability.
Product Code: NH4AGG69V1000
Key Benefits
- Reliable protection for both AC and DC circuits up to 690VAC and 250VDC.
- High breaking capacity of 120 kA for enhanced safety in industrial environments.
- Live tags and centre indicator for quick and safe fuse status identification.
- Robust ceramic body ensures durability and long service life.
- Silver-plated copper terminals provide excellent electrical conductivity.
- Easy clip mounting for secure and convenient installation.
Compatibility
The NH4AGG69V1000 fuse-link is compatible with standard DIN NH fuse bases and holders designed for NH4a size fuses. It fits seamlessly into low voltage IEC fuse systems requiring gG characteristic fuse-links for protection of electrical installations and equipment.
Applications
- Industrial power distribution panels.
- Motor protection circuits.
- Transformer protection.
- Control and distribution boards in manufacturing plants.
- Renewable energy systems requiring DC protection.
Technical Specifications
- Item number: H1054304
- Catalogue No: NH4AGG69V1000
- Description: DIN NH Standard fuse-link gG Size NH4a 690VAC 250VDC 1000A live tags Center indicator Body width 100 mm
- EAN/UPC Code: 3605340588545
- Rated voltage AC IEC: 690 V
- Rated voltage DC IEC: 250 V
- Ampere Rating: 1000 A
- RoHS Compliant: Yes
- AC or DC: AC/DC
- Speed/Characteristic: gG
- Fuse Size: NH4a
- Mounting: Clip
- AC Max I.R./Breaking Capacity: I1: 120 kA
- Design Details: live tags
- Indication System: Yes
- Indication System Type: Center indicator
- Connection/Terminal Material: Silver-Plated Copper
- Connection/Terminal Type: Plain Blades
- Product Width: 100 mm
- Product Length: 200 mm
- Product Height: 123.5 mm
- Sell Pack Quantity: 1 EA
- Sell Pack Weight: 2.58 kg
- Sell Pack Width: 135 mm
- Sell Pack Length: 220 mm
- Sell Pack Height: 110 mm
- Product group: Low Voltage IEC Fuses
- Body/Insulating Material: Ceramic
- Product Weight: 2.58 kg
- Power Dissipation at Rated Current Value: 78 W
Frequently Asked Questions
What does the gG characteristic mean for this fuse?
The gG characteristic indicates that this fuse-link provides full-range protection against both overloads and short circuits, making it suitable for general-purpose applications.
Can this fuse be used in DC circuits?
Yes, this fuse-link is rated for use in DC circuits up to 250 VDC, as well as AC circuits up to 690 VAC.
How does the centre indicator work?
The centre indicator provides a visual signal when the fuse has operated, allowing for quick and safe identification of a blown fuse without removing it.
Is this fuse RoHS compliant?
Yes, the NH4AGG69V1000 is RoHS compliant, ensuring it meets environmental and safety standards.
Common Search Terms
DIN NH fuse-link, NH4a fuse 1000A, 690VAC fuse, 250VDC fuse, gG fuse-link, live tags fuse, centre indicator fuse, ceramic fuse NH4, industrial fuse-link, high breaking capacity fuse.
| Manufacturer Part Number | H1054304 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 3605340588545 |
| Height | 200mm |
| Width | 100mm |
| Depth | 123.5mm |
| HS Code | 85361090 |
| Country of Manufacture | Hungary |
| Manufacturer | Mersen |
| Alternative Product SKU | NH4AGG69V1000 |
