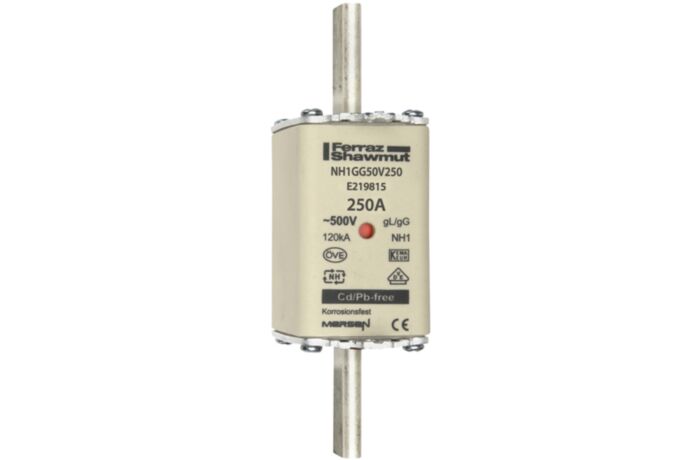

MERSEN FUSE NH 1 250A 500V GG E219815
MPN: E219815
Alt. SKU: NH1GG50V250
Special Price
£8.10
£6.75
Regular Price
£14.72
MERSEN FUSE NH 1 250A 500V GG E219815 is available to buy in increments of 3
Why Choose the DIN NH Standard Fuse-Link gG Size NH1 500VAC 250VDC 250A Live Tags Double Indicator Body Width 40mm (NH1GG50V250)?
This robust fuse-link is engineered to the DIN NH standard, providing reliable circuit protection for industrial applications. Rated at 500VAC and 250VDC with 250A current capacity, it ensures dependable performance and safety in high-demand environments.
Features include live tags for safe handling, a double indicator for clear fault identification, and a compact 40 mm body width for easy panel integration. Suitable for gG applications, it guarantees efficient overload and short-circuit protection for your critical systems.
Product Code: NH1GG50V250
Key Benefits
- Reliable protection for both AC (500 V) and DC (250 V) circuits.
- High breaking capacity of 120 kA ensures safety during fault conditions.
- Double indicator system provides clear visual fault identification.
- Live tags allow safe and easy handling during installation and maintenance.
- Compact 40 mm body width fits standard NH1 fuse holders for seamless integration.
- Ceramic body material offers excellent durability and heat resistance.
Compatibility
This fuse-link is compatible with NH1 size fuse holders and clips designed for DIN NH standard gG fuse-links. It suits industrial control panels, switchgear, and distribution boards requiring 250A protection with AC/DC voltage ratings as specified.
Applications
- Industrial motor protection circuits.
- Power distribution and control panels.
- Overload and short-circuit protection in manufacturing plants.
- Renewable energy systems requiring DC protection.
- General electrical installations conforming to IEC standards.
Technical Specifications
- Item number: E219815
- Catalogue No: NH1GG50V250
- Description: DIN NH Standard fuse-link gG Size NH1 500VAC 250VDC 250A live tags Double indicator Body width 40 mm
- EAN/UPC Code: 8430399001814
- Rated voltage AC IEC: 500 V
- Rated voltage DC IEC: 250 V
- Ampere Rating: 250 A
- AC or DC: AC/DC
- Speed/Characteristic: gG
- Fuse Size: NH1
- Mounting: Clip
- AC Max I.R./Breaking Capacity: I1: 120 kA
- Design Details: live tags
- Indication System: Yes
- Indication System Type: Double indicator
- Connection/Terminal Material: Brass
- Connection/Terminal Type: Plain Blades
- Product Width: 40 mm
- Product Length: 135 mm
- Product Height: 64 mm
- Sell Pack Quantity: 3 EA
- Sell Pack Weight: 1.26 kg
- Sell Pack Width: 145 mm
- Sell Pack Length: 159 mm
- Sell Pack Height: 70 mm
- Product group: Low Voltage IEC Fuses
- Body/Insulating Material: Ceramic
- Product Weight: 0.42 kg
- Power Dissipation at Rated Current Value: 20 W
Frequently Asked Questions
What does the gG characteristic mean?
The gG characteristic indicates a general-purpose fuse-link suitable for protection of cables and conductors against overload and short-circuit currents.
Can this fuse-link be used for both AC and DC circuits?
Yes, this fuse-link is rated for use in both AC (up to 500 V) and DC (up to 250 V) applications.
What is the significance of the double indicator?
The double indicator provides a clear visual signal when the fuse has blown, enhancing safety and maintenance efficiency.
Are live tags important?
Yes, live tags allow safe handling of the fuse-link without direct contact with live parts, reducing the risk of electric shock during installation or removal.
Common Search Terms
DIN NH fuse-link, NH1 fuse 250A, 500VAC fuse, 250VDC fuse, gG fuse-link, double indicator fuse, live tags fuse, ceramic fuse NH1, industrial fuse 250A, high breaking capacity fuse
| Manufacturer Part Number | E219815 |
|---|---|
| Packed Quantity | 3 |
| Barcode | 8430399001814 |
| Height | 135mm |
| Width | 40mm |
| Depth | 64mm |
| HS Code | 85361090 |
| Country of Manufacture | Hungary |
| Manufacturer | Mersen |
| Alternative Product SKU | NH1GG50V250 |
