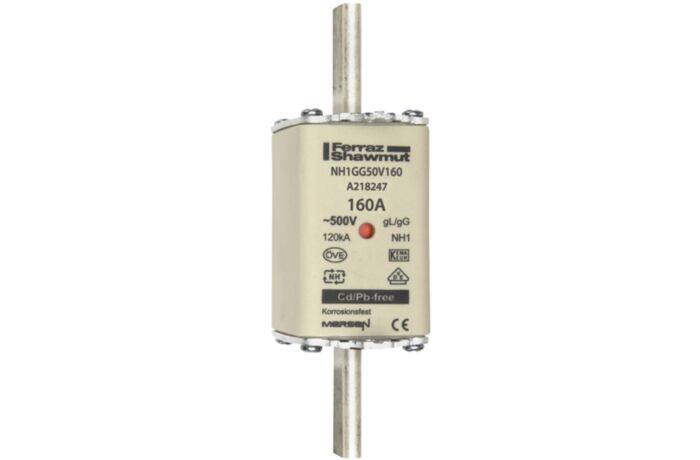

MERSEN FUSE NH 1 160A 500V GG NH1GG50V160
MPN: A218247
Alt. SKU: NH1GG50V160
Special Price
£6.97
£5.81
Regular Price
£12.68
MERSEN FUSE NH 1 160A 500V GG NH1GG50V160 is available to buy in increments of 3
Why Choose the DIN NH Standard Fuse-link gG Size NH1 160A (NH1GG50V160)?
This fuse-link offers robust circuit protection for industrial low-voltage applications, rated at 500VAC and 250VDC with a dependable 160A current capacity. The gG characteristic ensures full-range breaking capability for both overload and short-circuit scenarios, enhancing system safety and continuity.
Featuring live tags for easier installation and safe operation, along with a dual visual indicator for rapid fault identification, it is designed to simplify maintenance and minimise downtime. Its compact 40 mm body width fits standard NH1 holders, ensuring straightforward integration into existing systems.
Product Code: NH1GG50V160
Key Benefits
- Reliable full-range protection against overloads and short circuits with gG characteristic.
- Live tags simplify installation and enhance operator safety.
- Double visual indication enables quick fault detection and reduces downtime.
- Compact 40 mm body width fits standard NH1 holders for easy integration.
- High breaking capacity of 120 kA for superior system protection.
- Ceramic body ensures durability and heat resistance.
Compatibility
This fuse-link is compatible with NH1 fuse holders and switchgear designed for DIN NH standard fuses. It supports both AC and DC circuits up to 500 V AC and 250 V DC, making it suitable for a wide range of industrial low-voltage applications.
Applications
- Industrial motor protection circuits.
- Control panels and distribution boards.
- Power supplies in manufacturing plants.
- Renewable energy system protection.
- General low-voltage electrical installations requiring reliable fuse protection.
Technical Specifications
- Item number: A218247
- Catalogue No: NH1GG50V160
- Description: DIN NH Standard fuse-link gG Size NH1 500VAC 250VDC 160A live tags Double indicator Body width 40 mm
- EAN/UPC Code: 8430399001784
- Rated voltage AC IEC: 500 V
- Rated voltage DC IEC: 250 V
- Ampere Rating: 160 A
- AC or DC: AC/DC
- Speed/Characteristic: gG
- Fuse Size: NH1
- Mounting: Clip
- AC Max I.R./Breaking Capacity: I1: 120 kA
- Design Details: live tags
- Indication System: Yes
- Indication System Type: Double indicator
- Connection/Terminal Material: Brass
- Connection/Terminal Type: Plain Blades
- Product Width: 40 mm
- Product Length: 135 mm
- Product Height: 64 mm
- Sell Pack Quantity: 3 EA
- Sell Pack Weight: 1.26 kg
- Sell Pack Width: 145 mm
- Sell Pack Length: 159 mm
- Sell Pack Height: 70 mm
- Product group: Low Voltage IEC Fuses
- Body/Insulating Material: Ceramic
- Product Weight: 0.42 kg
- Power Dissipation at Rated Current Value: 14.6 W
Frequently Asked Questions
What does the gG characteristic mean?
The gG characteristic indicates that the fuse provides full-range protection, suitable for both overload and short-circuit conditions in general applications.
Can this fuse-link be used in DC circuits?
Yes, this fuse-link is rated for use in DC circuits up to 250 V, as well as AC circuits up to 500 V.
What is the significance of the live tags?
Live tags allow for safer and easier installation by providing a secure connection point that reduces the risk of electric shock during handling.
How does the double indicator system work?
The double indicator system visually signals when the fuse has blown, enabling quick identification of faults without the need for testing equipment.
Is this fuse compatible with all NH1 holders?
It is designed to fit standard NH1 fuse holders with clip mounting, but always verify compatibility with your specific equipment before installation.
Common Search Terms
DIN NH fuse-link, NH1 fuse 160A, gG fuse 500V, industrial fuse-link, low voltage fuse NH1, ceramic fuse-link, live tag fuse, double indicator fuse, 120kA breaking capacity fuse
| Manufacturer Part Number | A218247 |
|---|---|
| Packed Quantity | 3 |
| Barcode | 8430399001784 |
| Height | 135mm |
| Width | 40mm |
| Depth | 64mm |
| HS Code | 85361090 |
| Country of Manufacture | Hungary |
| Manufacturer | Mersen |
| Alternative Product SKU | NH1GG50V160 |
