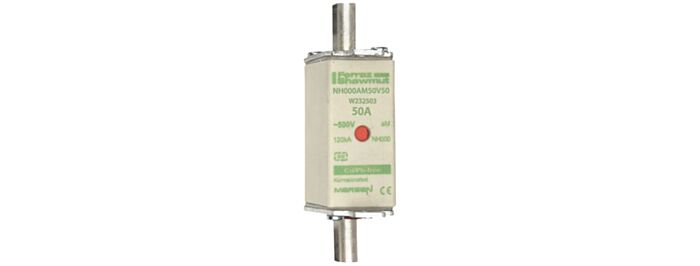

MERSEN FUSE NH 000 50A 500V AM NH000AM50V50
MPN: W232503
Alt. SKU: NH000AM50V50
Special Price
£3.86
£3.22
Regular Price
£7.03
MERSEN FUSE NH 000 50A 500V AM NH000AM50V50 is available to buy in increments of 3
Why Choose the DIN NH Standard Fuse-Link aM Size NH000 500VAC 50A?
This high-performance fuse-link, sized NH000 with a 21mm body width, is engineered for reliable protection of motor circuits up to 500VAC. With an aM characteristic, it provides superior short-circuit protection while allowing for rated inrush currents during equipment start-up.
Featuring robust live tags and a dual indicator system for clear status visibility, this fuse-link ensures rapid fault diagnosis and safe operation. Ideal for demanding industrial environments, it meets DIN NH standards, guaranteeing compatibility and consistent performance.
Technical Specifications
- Item number: W232503
- Catalogue No: NH000AM50V50
- Description: DIN NH Standard fuse-link aM Size NH000 500VAC 50A live tags Double indicator Body width 21mm
- EAN/UPC Code: 4086500088867
- Rated voltage AC IEC: 500 V
- Ampere Rating: 50 A
- RoHS Compliant: Yes
- AC or DC: AC
- Speed/Characteristic: aM
- Fuse Size: NH000
- Mounting: Clip
- AC Max I.R./Breaking Capacity: I1: 120 kA
- Design Details: live tags
- Indication System: Yes
- Indication System Type: Double indicator
- Connection/Terminal Material: Silver-Plated Copper
- Connection/Terminal Type: Plain Blades
- Product Width: 21 mm
- Product Length: 78.5 mm
- Product Height: 52.5 mm
- Sell Pack Quantity: 3 EA
- Sell Pack Weight: 0.39 kg
- Sell Pack Width: 64 mm
- Sell Pack Length: 80 mm
- Sell Pack Height: 54 mm
- Product group: Low Voltage IEC Fuses
- Body/Insulating Material: Ceramic
- Product Weight: 0.13 kg
- Power Dissipation at Rated Current Value: 2.3 W
Product Code: NH000AM50V50
Key Benefits
- Reliable short-circuit protection with aM characteristic for motor circuits
- Dual indicator system for clear and rapid fault identification
- Robust live tags ensure secure and stable electrical connections
- Complies with DIN NH standards for consistent quality and compatibility
- Ceramic body provides excellent insulation and durability
- High breaking capacity of 120 kA for enhanced safety
Compatibility
This fuse-link is compatible with standard NH fuse holders and clips designed for NH000 size fuses. It is suitable for use in low voltage IEC fuse systems and can be integrated into motor protection circuits operating at up to 500VAC.
Applications
- Protection of industrial motor circuits
- Low voltage electrical distribution systems
- Control panels requiring reliable short-circuit protection
- Heavy machinery and equipment in industrial environments
- General purpose motor protection in commercial and industrial facilities
Frequently Asked Questions
What does the aM characteristic mean?
The aM characteristic indicates that the fuse is designed for motor protection, allowing for the high inrush currents typical during motor start-up while providing fast short-circuit protection.
Is this fuse suitable for DC applications?
No, this fuse-link is rated for AC applications only, with a maximum rated voltage of 500 V AC.
How does the double indicator system work?
The double indicator system provides a clear visual indication of fuse status from both sides, allowing for quick identification of a blown fuse without disassembly.
Can this fuse be used with any NH fuse holder?
It is designed to fit NH fuse holders compatible with NH000 size fuses and mounting clips, ensuring proper fit and secure connection.
Common Search Terms
DIN NH fuse, NH000 fuse-link, 50A motor fuse, 500VAC fuse, aM characteristic fuse, ceramic fuse-link, industrial motor protection fuse, double indicator fuse, NH fuse 120kA breaking capacity
| Manufacturer Part Number | W232503 |
|---|---|
| Packed Quantity | 3 |
| Barcode | 4086500088867 |
| Height | 78.5mm |
| Width | 21mm |
| Depth | 52.5mm |
| HS Code | 85361050 |
| Country of Manufacture | Hungary |
| Manufacturer | Mersen |
| Alternative Product SKU | NH000AM50V50 |
