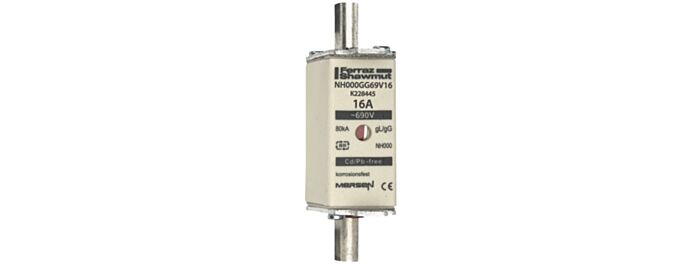

MERSEN FUSE NH 000 16A 690V GG NH000GG69V16
MPN: K228445
Alt. SKU: NH000GG69V16
Special Price
£6.78
£5.65
Regular Price
£12.32
MERSEN FUSE NH 000 16A 690V GG NH000GG69V16 is available to buy in increments of 3
Why Choose the DIN NH Standard Fuse-Link gG Size NH000 16A (NH000GG69V16)?
This DIN NH standard fuse-link, type gG, Size NH000, is rated for 690VAC and 250VDC at 16A, ensuring robust circuit protection in low-voltage industrial and commercial installations. Featuring live tags for reliable connectivity, its compact 21mm body is suited to space-sensitive panel designs.
The NH000GG69V16 incorporates a double indicator for clear status identification and rapid maintenance. Its high breaking capacity and compliance with IEC standards deliver consistent, safe, and dependable performance in demanding applications.
Technical Specifications
- Item number: K228445
- Catalogue No: NH000GG69V16
- Description: DIN NH Standard fuse-link gG Size NH000 690VAC 250VDC 16A live tags Double indicator Body width 21mm
- EAN/UPC Code: 4086500087693
- Rated voltage AC IEC: 690 V
- Rated voltage DC IEC: 250 V
- Ampere Rating: 16 A
- RoHS Compliant: Yes
- AC or DC: AC/DC
- Speed/Characteristic: gG
- Fuse Size: NH000
- Mounting: Clip
- AC Max I.R./Breaking Capacity: I1: 80 kA
- Design Details: live tags
- Indication System: Yes
- Indication System Type: Double indicator
- Connection/Terminal Material: Silver-Plated Copper
- Connection/Terminal Type: Plain Blades
- Product Width: 21 mm
- Product Length: 78.5 mm
- Product Height: 52.5 mm
- Sell Pack Quantity: 3 EA
- Sell Pack Weight: 0.375 kg
- Sell Pack Width: 65 mm
- Sell Pack Length: 80 mm
- Sell Pack Height: 60 mm
- Product group: Low Voltage IEC Fuses
- Body/Insulating Material: Ceramic
- Product Weight: 0.125 kg
- Power Dissipation at Rated Current Value: 1.8 W
Product Code: NH000GG69V16
Key Benefits
- High breaking capacity of 80 kA ensures superior protection against short circuits.
- Double indicator system provides clear and immediate fuse status for easy maintenance.
- Compact 21 mm body width allows installation in space-constrained panels.
- Live tags and silver-plated copper terminals guarantee reliable electrical connections.
- Compliance with IEC standards assures quality and safety in industrial environments.
Compatibility
This fuse-link is compatible with standard NH000 fuse holders and bases designed for low voltage IEC fuses. It supports both AC and DC circuits up to the specified voltage ratings and is suitable for integration into various industrial and commercial electrical distribution systems.
Applications
- Industrial motor protection circuits
- Commercial electrical distribution panels
- Control and automation systems
- Renewable energy installations
- General low-voltage electrical protection
Frequently Asked Questions
What does the gG characteristic mean?
The gG characteristic indicates a general purpose fuse-link suitable for protection of cables and conductors against overload and short circuit currents.
Can this fuse-link be used in DC circuits?
Yes, this fuse-link is rated for 250 VDC, making it suitable for DC circuit protection within this voltage limit.
How do I know if the fuse has blown?
The double indicator system provides a clear visual signal when the fuse has operated, facilitating quick identification and replacement.
Is this fuse RoHS compliant?
Yes, the product is RoHS compliant, ensuring it meets environmental and safety regulations.
Common Search Terms
NH000 fuse link, 16A gG fuse, DIN standard fuse, low voltage fuse, industrial fuse-link, 690VAC fuse, 250VDC fuse, double indicator fuse, ceramic fuse NH000, high breaking capacity fuse
| Manufacturer Part Number | K228445 |
|---|---|
| Packed Quantity | 3 |
| Barcode | 4086500087693 |
| Height | 78.5mm |
| Width | 21mm |
| Depth | 52.5mm |
| HS Code | 85361050 |
| Country of Manufacture | Hungary |
| Manufacturer | Mersen |
| Alternative Product SKU | NH000GG69V16 |
