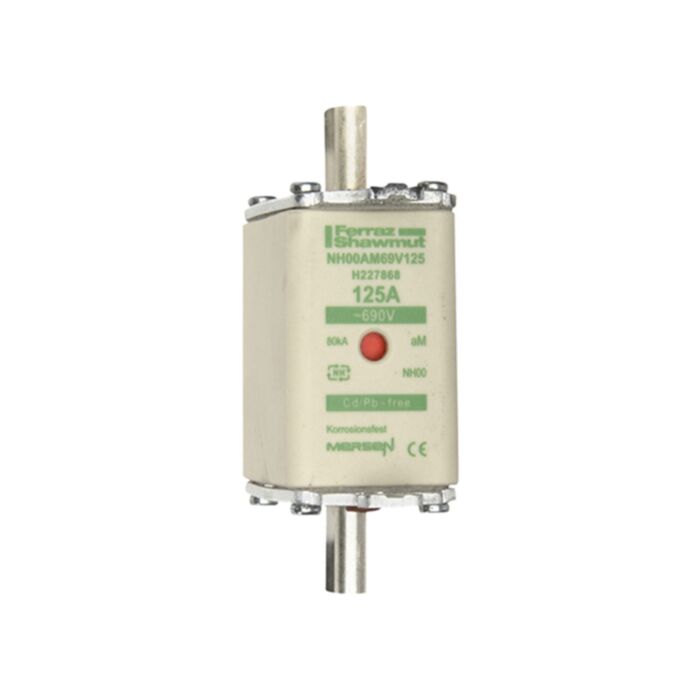

MERSEN FUSE NH 00 125A 690V AM H227868
MPN: H227868
Alt. SKU: NH00AM69V125
Special Price
£7.02
£5.85
Regular Price
£12.77
MERSEN FUSE NH 00 125A 690V AM H227868 is available to buy in increments of 3
Why Choose the DIN NH Standard Fuse-Link aM Size NH00 690VAC 125A?
Engineered for reliable protection of motor circuits, this NH00 fuse-link is rated at 690VAC and 125A, featuring a robust 30 mm wide ceramic body for optimal heat dissipation and durability. The aM characteristic ensures selective protection of motor circuits against short-circuit events, safeguarding valuable assets during high fault conditions.
Equipped with live tags and a double indicator system for enhanced safety and quick status verification, this fuse-link enables efficient maintenance and precise fault identification. Fully compliant with the DIN NH standard, it is ideal for use in demanding industrial environments where operational continuity is critical.
Product Code: NH00AM69V125
Key Benefits
- Selective protection for motor circuits with aM characteristic
- High breaking capacity of 80 kA at 690 V AC for enhanced safety
- Durable ceramic body ensures excellent heat dissipation and longevity
- Live tags and double indicator system for quick fault identification
- Easy mounting with clip design for efficient installation
Compatibility
This fuse-link is compatible with NH00 fuse holders and switchgear designed for DIN NH standard fuses. It is suitable for use in low voltage industrial electrical panels, motor control centres, and distribution boards requiring aM type protection.
Applications
- Protection of motor circuits in industrial environments
- Use in motor control centres and distribution boards
- Short-circuit protection in low voltage electrical installations
- Applications requiring reliable fuse-links with high breaking capacity
Technical Specifications
- Item number: H227868
- Catalogue No: NH00AM69V125
- Description: DIN NH Standard fuse-link aM Size NH00 690VAC 125A live tags Double indicator Body width 30 mm
- EAN/UPC Code: 8430399024851
- Rated voltage AC IEC: 690 V
- Ampere Rating: 125 A
- RoHS Compliant: Yes
- AC or DC: AC
- Speed/Characteristic: aM
- Fuse Size: NH00
- Mounting: Clip
- AC Max I.R./Breaking Capacity: I1: 80 kA
- Design Details: live tags
- Indication System: Yes
- Indication System Type: Double indicator
- Connection/Terminal Material: Silver-Plated Copper
- Connection/Terminal Type: Plain Blades
- Product Width: 30 mm
- Product Length: 78.5 mm
- Product Height: 60 mm
- Sell Pack Quantity: 3 EA
- Sell Pack Weight: 0.6 kg
- Sell Pack Width: 82 mm
- Sell Pack Length: 95 mm
- Sell Pack Height: 65 mm
- Product group: Low Voltage IEC Fuses
- Body/Insulating Material: Ceramic
- Product Weight: 0.2 kg
- Power Dissipation at Rated Current Value: 6.4 W
Frequently Asked Questions
What does the aM characteristic mean?
The aM characteristic indicates that the fuse-link is designed for motor protection, providing selective short-circuit protection while allowing for normal motor starting currents.
Can this fuse-link be used in DC applications?
No, this fuse-link is rated for AC applications only, with a maximum rated voltage of 690 V AC.
What is the significance of the double indicator system?
The double indicator system provides a clear visual indication of fuse status, allowing quick identification of blown fuses for faster maintenance.
Is this fuse RoHS compliant?
Yes, this fuse-link complies with RoHS regulations, ensuring it is free from hazardous substances.
Common Search Terms
NH00 fuse-link, DIN NH fuse 125A, motor protection fuse, 690V fuse-link, aM fuse NH00, ceramic fuse-link, high breaking capacity fuse, live tag fuse, double indicator fuse
| Manufacturer Part Number | H227868 |
|---|---|
| Packed Quantity | 3 |
| Barcode | 8430399024851 |
| Height | 78.5mm |
| Width | 30mm |
| Depth | 60mm |
| HS Code | 85361090 |
| Country of Manufacture | Hungary |
| Manufacturer | Mersen |
| Alternative Product SKU | NH00AM69V125 |
