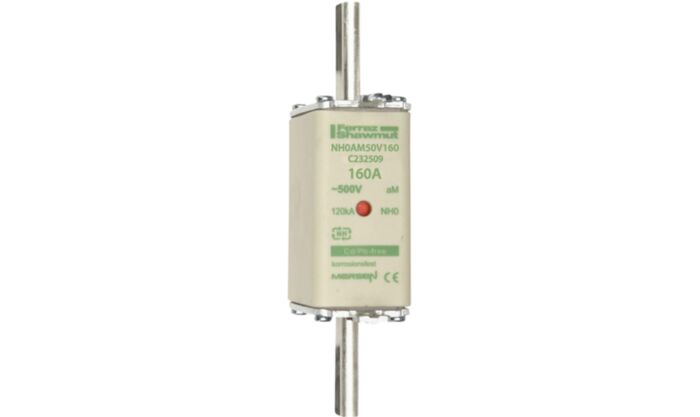

MERSEN FUSE NH 0 160A 500V AM NH0AM50V160
MPN: C232509
Alt. SKU: NH0AM50V160
Special Price
£8.54
£7.12
Regular Price
£15.53
MERSEN FUSE NH 0 160A 500V AM NH0AM50V160 is available to buy in increments of 3
Why Choose the DIN NH Standard Fuse-Link aM Size NH0 500VAC 160A – Double Indicator?
The NH0AM50V160 fuse-link provides reliable motor circuit protection at up to 500VAC and 160A, featuring robust aM characteristics tailored for motor applications. Its compact 30 mm wide body and live tags ensure easy integration into standard NH0 fuse bases.
Engineered with a double indicator for immediate blown-fuse identification, this fuse-link streamlines maintenance and minimises downtime. Built to DIN NH standards, it assures consistent performance and compatibility across demanding industrial environments.
Technical Specifications
- Item number: C232509
- Catalogue No: NH0AM50V160
- Description: DIN NH Standard fuse-link aM Size NH0 500VAC 160A live tags Double indicator Body width 30 mm
- EAN/UPC Code: 8430399026787
- Rated voltage AC IEC: 500 V
- Ampere Rating: 160 A
- RoHS Compliant: Yes
- AC or DC: AC
- Speed/Characteristic: aM
- Fuse Size: NH0
- Mounting: Clip
- AC Max I.R./Breaking Capacity: I1: 120 kA
- Design Details: live tags
- Indication System: Yes
- Indication System Type: Double indicator
- Connection/Terminal Material: Silver-Plated Copper
- Connection/Terminal Type: Plain Blades
- Product Width: 30 mm
- Product Length: 125 mm
- Product Height: 61 mm
- Sell Pack Quantity: 3 EA
- Sell Pack Weight: 0.78 kg
- Sell Pack Width: 95 mm
- Sell Pack Length: 129 mm
- Sell Pack Height: 65 mm
- Product group: Low Voltage IEC Fuses
- Body/Insulating Material: Ceramic
- Product Weight: 0.26 kg
- Power Dissipation at Rated Current Value: 10.5 W
Product Code: NH0AM50V160
Key Benefits
- Reliable motor circuit protection with aM characteristic for selective tripping.
- Double indicator system for quick and clear blown fuse identification.
- Compact 30 mm body width fits standard NH0 fuse bases for easy installation.
- Live tags design ensures secure and efficient electrical connections.
- High breaking capacity of 120 kA enhances safety during fault conditions.
- Ceramic body provides excellent insulation and durability.
Compatibility
This fuse-link is compatible with DIN NH standard fuse bases sized NH0 and is suitable for use in motor protection circuits operating at up to 500VAC. It fits securely into clip mounting systems and works seamlessly with other Low Voltage IEC fuses within the NH0 size range.
Applications
- Protection of motor circuits in industrial and commercial installations.
- Use in control panels and switchgear requiring reliable short-circuit and overload protection.
- Ideal for machinery and equipment requiring selective fuse protection with quick fault indication.
- Suitable for applications demanding high breaking capacity and robust fuse design.
Frequently Asked Questions
What does the aM characteristic mean for this fuse-link?
The aM characteristic indicates that the fuse is designed specifically for motor protection, providing selective tripping to avoid nuisance trips while protecting against overloads and short circuits.
How does the double indicator system work?
The double indicator provides a clear visual signal on both sides of the fuse when it has blown, enabling quick identification and replacement without the need for additional tools.
Is this fuse-link suitable for DC applications?
No, this fuse-link is rated for AC applications only, with a maximum rated voltage of 500 V AC.
What is the significance of the live tags design?
Live tags ensure a secure and low-resistance connection between the fuse and fuse base, improving electrical performance and safety.
Common Search Terms
NH0 fuse-link, DIN NH fuse, motor protection fuse, 160A fuse, 500VAC fuse, aM characteristic fuse, double indicator fuse, ceramic fuse-link, high breaking capacity fuse, live tag fuse
| Manufacturer Part Number | C232509 |
|---|---|
| Packed Quantity | 3 |
| Barcode | 8430399026787 |
| Height | 125mm |
| Width | 30mm |
| Depth | 61mm |
| HS Code | 85361090 |
| Country of Manufacture | Hungary |
| Manufacturer | Mersen |
| Alternative Product SKU | NH0AM50V160 |
