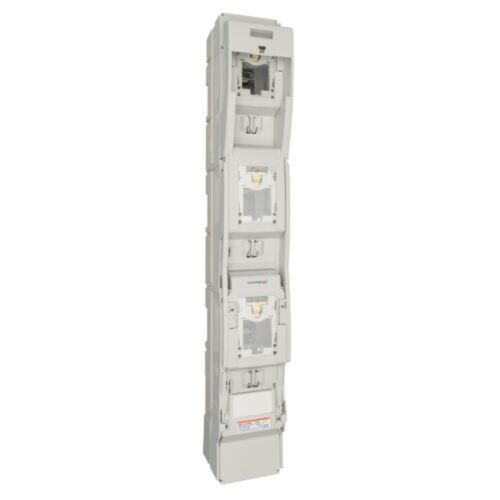

MERSEN FUSE MV3 630A/185mm 3P3 1.360.000
MPN: C1023249
Alt. SKU: 1.360.000
Special Price
£319.80
£266.50
Regular Price
£581.45
Why Choose the NH Fuse-Switch Disconnector MULTIVERT® Size 3 630A?
The NH fuse-switch disconnector MULTIVERT® Size 3 (630A, 1x3-pole) provides robust, reliable switching and protection for demanding industrial power distribution systems. Optimised for 185mm bus bar systems, it ensures safe disconnection under load, enhancing operational safety and maintenance efficiency.
Featuring durable M12 screw insert nuts for secure installation, this unit offers straightforward integration into existing infrastructures. Its precision engineering and compliance with stringent quality standards make it a trusted solution for high-performance electrical applications.
Product Code: C1023249
Key Benefits
- Reliable disconnection under load for enhanced safety
- Optimised for 185mm bus bar systems ensuring compatibility
- Durable M12 screw insert nuts for secure and stable installation
- High short circuit current rating (80kA) for superior protection
- Compliant with RoHS standards promoting environmental responsibility
- Compact design with a product height of 685 mm for space efficiency
Compatibility
This NH fuse-switch disconnector is compatible with IEC Fuse Switch Disconnectors and is designed to integrate seamlessly with 185 mm bus bar systems. It supports 1x3-pole switching configurations and is suitable for use with fuse size 3 links, making it ideal for industrial electrical setups requiring 630A rated current.
Applications
- Industrial power distribution and control panels
- Electrical switchgear assemblies
- Maintenance and safety disconnection in manufacturing plants
- Power distribution boards in commercial and industrial buildings
- Replacement and upgrade of existing NH fuse-switch disconnectors
Technical Specifications
- Item number: C1023249
- Catalogue No: 1.360.000
- Description: NH fuse-switch disconnector MULTIVERT® Size 3 630A 1x3-Pole switching Bus bar system 185mm Screw M12 insert nuts
- EAN/UPC Code: 9008567000342
- Frequency (Hz): 50 ... 60 Hz
- Rated voltage AC IEC: 690 V
- Ampere Rating: 630 A
- Utilization Category: AC 23 B @ Ue = AC 400 V; Ie = 630 A AC 22 B @ Ue = AC 500 V; Ie = 630 A AC 21 B @ Ue = AC 690 V; Ie = 630 A
- Switchability: 1x3-pole switching
- RoHS Compliant: Yes
- AC or DC: AC
- Short Circuit Current Rating (SCCR): 80kA@Ue = AC 400 V; Ie = 630 A / 80kA@Ue = AC 500 V; Ie = 630 A / 80kA@Ue = AC 690 V; Ie = 500 A
- Fuse Size: 3
- Number of Poles: 3-Pole
- Degree of Pollution: 3
- Rated Impulse Withstand Voltage: 12 kV
- Rated Insulation Voltage: 1000 V
- Rated SC Withstand: 12.6 kA / 1 s
- Max Power dissipation of Fuse Links Pn: 48 W
- Max Power dissipation of Solid Links Pn: 17.5 W
- Power Dissipation by Ith without Fuse-Links: 95 W
- Rated short circuit making capacity with solid links Icm: 16 kA
- Installation Mounting: Bus bar system 185 mm
- Product Width: 98 mm
- Product Length: 190 mm
- Product Height: 685 mm
- Sell Pack Quantity: 1 EA
- Sell Pack Weight: 5.52 kg
- Sell Pack Width: 200 mm
- Sell Pack Length: 705 mm
- Sell Pack Height: 105 mm
- Product group: IEC Fuse Switch Disconnectors
- Conventional Free Air thermal Current With Fuse-Links Ith: 630 A
- Product Weight: 5.52 kg
- Conventional Free Air thermal Current - Solid Links: 800 A
Frequently Asked Questions
What is the rated current of this fuse-switch disconnector?
The rated current is 630 A, suitable for heavy-duty industrial applications.
Is this product compatible with DC systems?
No, this fuse-switch disconnector is designed for AC systems only.
What bus bar system size does this product fit?
It is optimised for a 185 mm bus bar system.
Does this product comply with environmental standards?
Yes, it is RoHS compliant, ensuring it meets environmental safety standards.
How many poles does this fuse-switch disconnector have?
It features a 3-pole switching configuration.
Common Search Terms
NH fuse switch disconnector, MULTIVERT fuse switch, 630A fuse switch, 3-pole fuse switch, 185mm bus bar fuse switch, industrial fuse switch, IEC fuse switch disconnector, M12 screw insert fuse switch
| Manufacturer Part Number | C1023249 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 9008567000342 |
| Height | 190mm |
| Width | 98mm |
| Depth | 685mm |
| HS Code | 85365080 |
| Country of Manufacture | Hungary |
| Manufacturer | Mersen |
| Alternative Product SKU | 1.360.000 |
