MERSEN FUSE MV00 160A/60mm 3P3 1.003.140
MPN: A1023155
Alt. SKU: 1.003.140
Special Price
£219.08
£182.57
Regular Price
£398.33

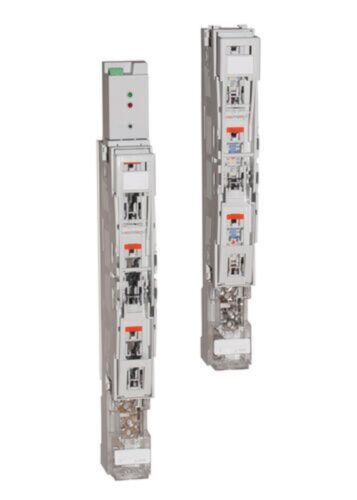

Why Choose the NH Fuse-Switch Disconnector MULTIVERT® Size 00 160A?
This robust NH fuse-switch disconnector is engineered for reliable and safe three-phase switching in bus bar systems with a 60mm pitch. Rated at 160A and equipped with a 1x3-pole configuration, it ensures secure circuit isolation while supporting fast and simple installation.
Featuring clamp strap or screw bottom terminals for flexible connection options and FM readiness for straightforward integration, this model (1.003.140) offers proven performance and adaptability for demanding industrial applications.
Technical Specifications
- Item number: A1023155
- Catalogue No: 1.003.140
- Description: NH fuse-switch disconnector MULTIVERT® Size 00 160A 1x3-Pole switching Bus bar system 60mm Clamp Strap / Screw bottom terminal FM ready
- EAN/UPC Code: 9008567006429
- Frequency (Hz): 50 ... 60 Hz
- Rated voltage AC IEC: 690 V
- Ampere Rating: 160 A
- Utilization Category: AC 23 B @ Ue = AC 400 V; Ie = 160 A AC 22 B @ Ue = AC 500 V; Ie = 160 A AC 22 B @ Ue = AC 690 V; Ie = 100 A DC 21 B @ Ue = DC 220 V; Ie = 160 A DC 21 B @ Ue = DC 440 V; Ie = 100 A
- Switchability: 1x3-pole switching
- AC or DC: AC
- Short Circuit Current Rating (SCCR): 120kA@Ue = AC 400 V; Ie = 160 A / 120kA@Ue = AC 500 V; Ie = 160 A / 50kA@Ue = AC 690 V; Ie = 100 A
- Fuse Size: 00
- Design Details: Clamp Strap / Screw bottom terminal
- Number of Poles: 3-Pole
- Degree of Pollution: 3
- Rated Impulse Withstand Voltage: 8 kV
- Rated Insulation Voltage: 1000 V
- Rated SC Withstand: 4.5 kA / 1 s
- Max Power dissipation of Fuse Links Pn: 12 W
- Max Power dissipation of Solid Links Pn: 1.2 W
- Power Dissipation by Ith without Fuse-Links: 18 W
- Power Dissipation by Ith without Solid Links: 44 W
- Rated short circuit making capacity with solid links Icm: 4.5 kA
- Installation Mounting: Bus bar system 60 mm
- Product Width: 50 mm
- Product Length: 116 mm
- Product Height: 406 mm
- Sell Pack Quantity: 1 EA
- Sell Pack Weight: 1.5 kg
- Sell Pack Width: 125 mm
- Sell Pack Length: 413 mm
- Sell Pack Height: 51 mm
- Product group: IEC Fuse Switch Disconnectors
- Conventional Free Air thermal Current With Fuse-Links Ith: 160 A
- Product Weight: 1.5 kg
- Conventional Free Air thermal Current - Solid Links: 250 A
Product Code: A1023155
Key Benefits
- Reliable and safe three-phase switching with 1x3-pole configuration
- Supports bus bar system with 60mm pitch for easy installation
- Flexible connection options with clamp strap or screw bottom terminals
- FM ready for seamless integration into existing systems
- High short circuit current rating ensuring robust protection
- Compact design with efficient power dissipation
Compatibility
This NH fuse-switch disconnector is compatible with IEC standard fuse links size 00 and designed for use in bus bar systems with a 60 mm pitch. It integrates smoothly with industrial electrical installations requiring 160A rated switching and protection.
Applications
- Industrial power distribution and control panels
- Three-phase motor protection and switching
- Bus bar system installations in manufacturing plants
- Electrical switchgear for commercial and industrial buildings
- Protection of circuits in harsh industrial environments
Frequently Asked Questions
What is the rated voltage of this fuse-switch disconnector?
The rated voltage AC IEC is 690 V, suitable for various industrial applications.
Can this device be used with DC systems?
This model is designed for AC operation only.
What type of terminals does this product use?
It features clamp strap or screw bottom terminals for flexible connection options.
Is this product suitable for bus bar systems?
Yes, it is designed specifically for bus bar systems with a 60mm pitch.
What is the short circuit current rating?
The short circuit current rating is up to 120kA at AC 400 V and AC 500 V, and 50kA at AC 690 V.
Common Search Terms
NH fuse switch disconnector, MULTIVERT fuse switch, 160A fuse switch, 3-pole fuse switch, bus bar fuse switch 60mm, IEC fuse switch disconnector, clamp strap terminal fuse switch, screw bottom terminal fuse switch, industrial fuse switch, FM ready fuse switch
| Manufacturer Part Number | A1023155 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 9008567006429 |
| Height | 116mm |
| Width | 50mm |
| Depth | 406mm |
| HS Code | 85365080 |
| Country of Manufacture | Hungary |
| Manufacturer | Mersen |
| Alternative Product SKU | 1.003.140 |
