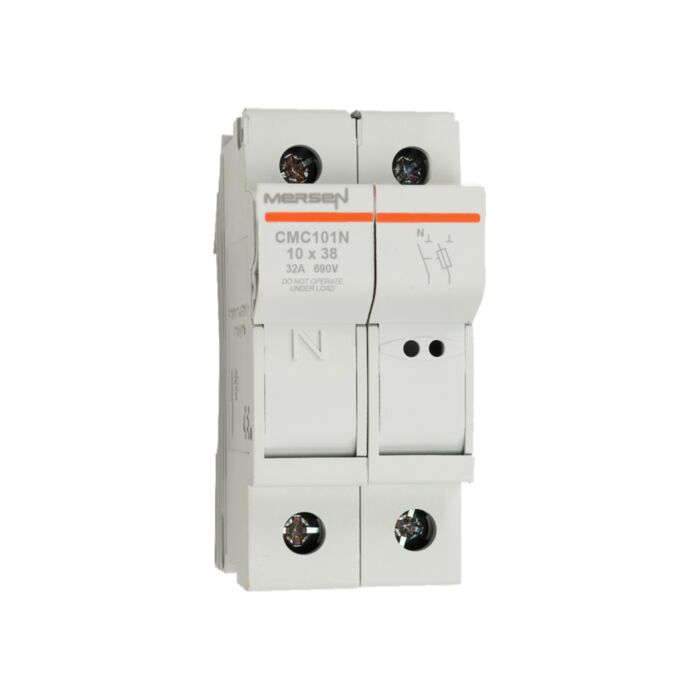

MERSEN FUSE MODULOSTAR CMC10 1P+N CMC101N
MPN: G1062698
Alt. SKU: CMC101N
Special Price
£10.01
£8.34
Regular Price
£18.20
MERSEN FUSE MODULOSTAR CMC10 1P+N CMC101N is available to buy in increments of 6
Why Choose the Fuse Holder Modulostar® Size 10x38 IEC 690VAC 690VDC 1-pole+N IP20 CMC101N?
The Fuse Holder Modulostar® CMC101N is engineered for secure and reliable protection of electrical circuits, supporting both 690VAC and 690VDC applications up to 10x38 mm fuse sizes. Its 1-pole+N configuration offers versatile phase and neutral isolation, ideal for demanding industrial and commercial installations.
Designed with IP20 touch-proof safety and compliant with IEC standards, it ensures ease of installation and optimum protection. Choose Modulostar® CMC101N for dependable circuit safety in critical environments.
Technical Specifications
- Item number: G1062698
- Catalogue No: CMC101N
- Description: Fuse Holder Modulostar® Size 10x38 IEC 690VAC 690VDC 1-pole+N IP20
- EAN/UPC Code: 3605340602661
- Rated voltage AC IEC: 690 V
- Rated voltage DC IEC: 690 V
- Ampere Rating: 32 A
- AC or DC: AC/DC
- Short Circuit Current Rating (SCCR): 200 kA
- Fuse Size: 10x38
- Design Details: CMC10 single pole + neutral conductor
- Number of Poles: 1-pole+N
- Torque Rating: 2 Nm
- Housing Material: PA6
- Rated Impulse Withstand Voltage: 6 kV
- Rated Insulation Voltage: 1000 V
- Max Power dissipation of Fuse Links Pn: 3 W
- Installation Mounting: DIN rail acc. EN 60715
- Product Width: 35 mm
- Product Length: 61.1 mm
- Product Height: 79.3 mm
- Sell Pack Quantity: 6 EA
- Sell Pack Weight: 0.57 kg
- Sell Pack Width: 90 mm
- Sell Pack Length: 225 mm
- Sell Pack Height: 70 mm
- Product group: Fuse Holders
- Conventional Free Air thermal Current With Fuse-Links Ith: 32 A
- Product Weight: 0.095 kg
Product Code: CMC101N
Key Benefits
- Supports both AC and DC voltages up to 690V for versatile applications.
- Compact 1-pole+N design provides phase and neutral isolation.
- IP20 touch-proof protection ensures user safety during operation.
- High short circuit current rating of 200 kA for robust protection.
- Easy DIN rail mounting for quick and secure installation.
- Durable PA6 housing material ensures long service life.
Compatibility
The CMC101N fuse holder is compatible with 10x38 mm fuse links and designed to fit standard DIN rails according to EN 60715. It is suitable for use with Modulostar® fuse links and other IEC-compliant fuses within the specified ratings.
Applications
- Industrial control panels and switchgear.
- Commercial electrical installations requiring reliable circuit protection.
- Renewable energy systems including photovoltaic installations.
- Motor protection and distribution boards.
- General-purpose electrical circuit protection in harsh environments.
Frequently Asked Questions
What fuse sizes are compatible with the CMC101N fuse holder?
The CMC101N is designed for 10x38 mm fuse sizes, compatible with IEC-standard fuse links.
Can this fuse holder be used for both AC and DC applications?
Yes, it supports rated voltages up to 690V for both AC and DC applications.
How is the CMC101N mounted?
It is mounted on a DIN rail according to EN 60715 standards for easy installation.
What level of short circuit current can this fuse holder handle?
The CMC101N has a short circuit current rating (SCCR) of 200 kA, providing high fault current protection.
Common Search Terms
Fuse holder 10x38, Modulostar fuse holder, 1-pole+N fuse holder, IEC fuse holder, 690VAC fuse holder, 690VDC fuse holder, DIN rail fuse holder, IP20 fuse holder, industrial fuse holder, electrical circuit protection.
| Manufacturer Part Number | G1062698 |
|---|---|
| Packed Quantity | 6 |
| Barcode | 3605340602661 |
| Height | 61.1mm |
| Width | 35mm |
| Depth | 79.3mm |
| HS Code | 85361050 |
| Manufacturer | Mersen |
| Alternative Product SKU | CMC101N |
