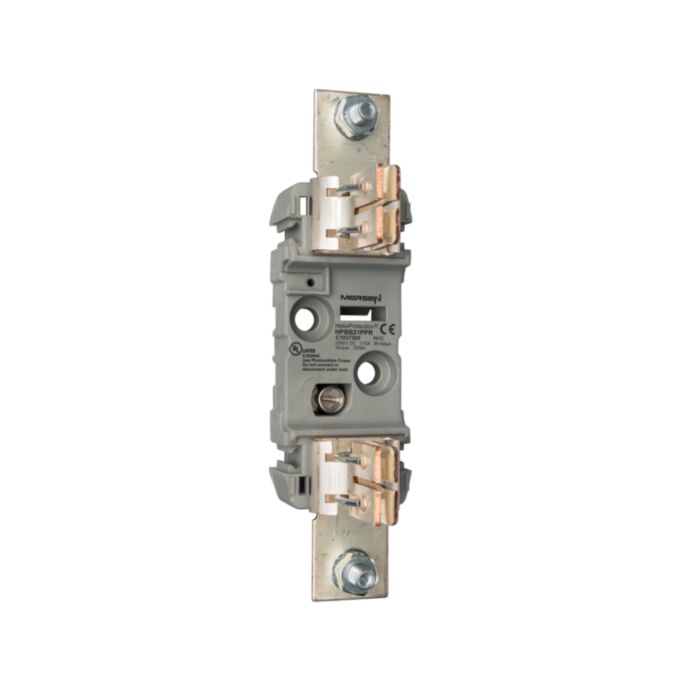

MERSEN FUSE HPBB21PPR C1037509

Why Choose the Fuse-base for gPV Photovoltaic Fuse-links Size NH, NH2 315A 1-pole Open Design HPBB21PPR?

Engineered for high-performance photovoltaic systems, this fuse-base supports NH and NH2 size gPV fuse-links up to 315A, ensuring robust circuit protection in demanding renewable energy environments. Its 1-pole open design facilitates straightforward installation, inspection, and replacement, minimising downtime and maintenance requirements.

Constructed for reliability and longevity, the HPBB21PPR fuse-base utilises premium-grade materials and precise manufacturing, delivering secure electrical contact and safe operation under continuous and fault conditions. Designed to meet the technical demands of modern PV installations, it offers dependable performance and seamless integration with industry-standard fuse-links.

Technical Specifications

• Item number: C1037509
• Catalogue No: HPBB21PPR
• Description: Fuse-base for gPV Photovoltaic fuse-links Size NH, NH2 315A 1-pole open design
• EAN/UPC Code: 3605340544985
• Rated voltage DC IEC: 1000 V
• Ampere Rating: 315 A
• AC or DC: DC
• Fuse Size: NH2
• Design Details: open design~for DIN-rail or screw mounting~(M8/M10, M = 14/17 Nm)~for NH fuse links size 1 and 2
• Number of Poles: 1-pole
• Connector Type (Secondary): 96
• Rated Impulse Withstand Voltage: 8 kV
• Power Acceptance: 45 W
• Product Width: 60 mm
• Product Length: 89 mm
• Product Height: 225 mm
• Sell Pack Quantity: 3 EA
• Sell Pack Weight: 1.6329 kg
• Sell Pack Width: 205 mm
• Sell Pack Length: 235 mm
• Sell Pack Height: 100 mm
• Product group: Fuse Bases
• Product Weight: 0.5443 kg

Product Code: C1037509

Key Benefits

• Supports NH and NH2 size fuse-links up to 315A for versatile photovoltaic applications.
• 1-pole open design allows easy installation and maintenance, reducing downtime.
• High rated voltage of 1000 V DC suitable for demanding PV system requirements.
• Robust construction ensures reliable electrical contact and safe operation under fault conditions.
• Compatible with DIN-rail or screw mounting for flexible installation options.

Compatibility

This fuse-base is compatible with gPV photovoltaic fuse-links size NH and NH2, specifically designed for fuse-links rated up to 315A. It supports NH fuse links size 1 and 2 and fits standard DIN-rail or screw mounting systems, making it suitable for integration with a wide range of photovoltaic protection setups.

Applications

• Photovoltaic solar power systems requiring DC circuit protection.
• Renewable energy installations with NH and NH2 fuse-links.
• Industrial and commercial solar panel arrays.
• Electrical distribution boards in PV power plants.
• Maintenance and replacement of fuse bases in existing PV systems.
