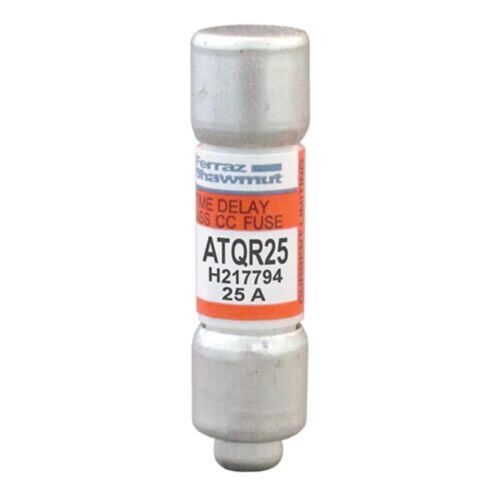

MERSEN FUSE CC TD FUSE 600V 25A ATQR ATQR25
MPN: ATQR25
Special Price
£10.06
£8.38
Regular Price
£22.36
MERSEN FUSE CC TD FUSE 600V 25A ATQR ATQR25 is available to buy in increments of 10
Why Choose the Fuse ATQR - Class CC - Time-Delay 600VAC 300VDC 25A Ferrule Amp-Trap 2000®?
The ATQR25 fuse delivers reliable circuit protection with its time-delay feature, supporting inrush currents without nuisance openings. Rated at 25A, 600VAC, and 300VDC, it is ideal for safeguarding motor circuits and sensitive controls in industrial applications.
Engineered for consistent performance, the ferrule design facilitates straightforward installation and replacement. The Amp-Trap 2000® series ensures robust fault interruption, meeting stringent Class CC standards for enhanced equipment protection and operational continuity.
Technical Specifications
- Item number: ATQR25
- Description: Fuse ATQR - Class CC - Time-Delay 600VAC 300VDC 25A Ferrule Amp-Trap 2000®
- EAN/UPC Code: 782001904715
- Rated voltage AC UL: 600 V
- Rated voltage DC UL: 300 V
- Frequency (Hz): 50/60 Hz
- Ampere Rating: 25 A
- AC or DC: AC/DC
- Fuse Class: Class CC
- Speed/Characteristic: Time Delay
- Mounting: Clip
- AC Max I.R./Breaking Capacity: I1: 200 kA
- Connection/Terminal Material: Tin-Plated Copper
- Connection/Terminal Type: Ferrule
- Product Diameter: 10.4 mm
- Product Length: 38.1 mm
- Sell Pack Quantity: 10 EA
- Sell Pack Weight: 0.0816 kg
- Sell Pack Width: 22.4 mm
- Sell Pack Length: 41.4 mm
- Sell Pack Height: 54.1 mm
- Product group: Low Voltage UL/CSA Fuses
- Body/Insulating Material: GMG
- Product Weight: 0.0077 kg
Product Code: ATQR25
Key Benefits
- Time-delay characteristic allows for temporary inrush currents without blowing.
- High breaking capacity of 200 kA ensures robust fault interruption.
- Ferrule terminal design enables easy installation and replacement.
- Compatible with both AC and DC circuits up to 600VAC and 300VDC.
- Compact dimensions facilitate use in space-constrained applications.
- Reliable protection for motor circuits and sensitive control equipment.
Compatibility
The ATQR25 fuse is compatible with Class CC fuse holders and clips designed for Amp-Trap 2000® fuses. It fits standard industrial control panels and motor starter applications requiring UL/CSA low voltage fuse protection. Suitable for use in both AC and DC electrical systems within the specified voltage and current ratings.
Applications
- Motor circuit protection
- Industrial control panels
- Sensitive electronic equipment protection
- Power distribution systems
- Automation and manufacturing machinery
Frequently Asked Questions
What does the time-delay feature mean?
The time-delay characteristic allows the fuse to tolerate temporary current surges, such as motor starting currents, without blowing, preventing unnecessary downtime.
Can this fuse be used in DC circuits?
Yes, the ATQR25 is rated for use in both AC (up to 600V) and DC (up to 300V) circuits.
What is the breaking capacity of this fuse?
The fuse has a maximum interrupting rating of 200 kA at rated voltage, ensuring it can safely clear high fault currents.
Is the fuse compatible with standard Class CC fuse holders?
Yes, it is designed to fit standard Class CC fuse holders and clips for Amp-Trap 2000® series fuses.
Common Search Terms
Class CC fuse, time-delay fuse, Amp-Trap 2000 fuse, 25A fuse, 600VAC fuse, 300VDC fuse, ferrule fuse, motor protection fuse, industrial fuse, low voltage fuse
| Manufacturer Part Number | ATQR25 |
|---|---|
| Packed Quantity | 10 |
| Barcode | 0782001904715 |
| Height | 38.1mm |
| Width | 10.4mm |
| Depth | 10.4mm |
| HS Code | 85361050 |
| Country of Manufacture | Mexico |
| Manufacturer | Mersen |
