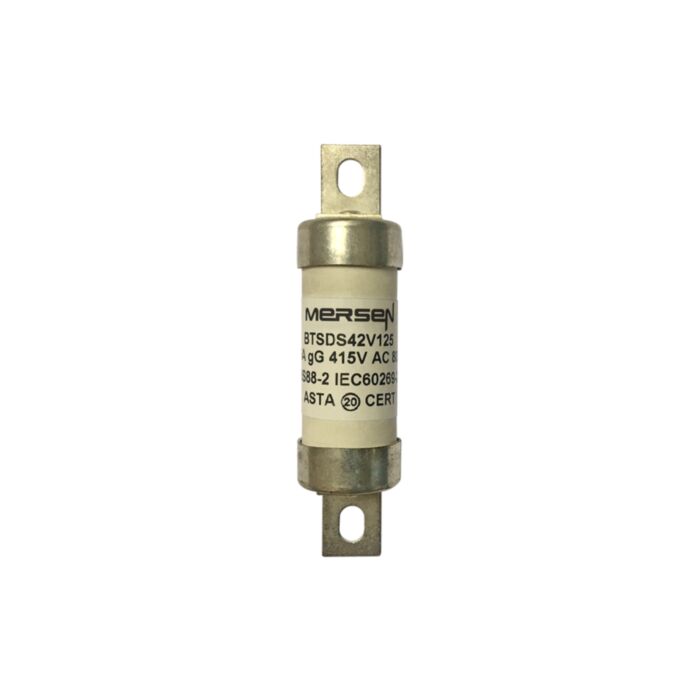

MERSEN FUSE BTSDS42V125 A3 BTSDS42V125
MPN: G1019182
Alt. SKU: BTSDS42V125
Special Price
£10.33
£8.61
Regular Price
£29.52
MERSEN FUSE BTSDS42V125 A3 BTSDS42V125 is available to buy in increments of 10
Why Choose the BS88 gG Type A3 415VAC 240VDC 125A BTSDS Offset Tag BTSDS42V125 Fuse-Link?
The BTSDS42V125 fuse-link is designed to British Standard BS88 and IEC specifications, ensuring reliable circuit protection in demanding industrial environments. Its gG category offers full-range protection against overloads and short circuits, rated up to 415VAC and 240VDC at 125A.
Featuring robust offset tags for secure installation, the Type A3 form factor is ideal for panel builders and switchgear manufacturers seeking long-term performance and compliance with UK and international standards.
Product Code: BTSDS42V125
Key Benefits
- Full-range gG protection for both overloads and short circuits
- High breaking capacity: 80 kA AC and 40 kA DC for enhanced safety
- Robust ceramic body for durability and heat resistance
- Offset tag terminals with tin-plated copper for reliable connections
- Compliance with BS88 and IEC standards ensures quality and reliability
- Compact A3 size suitable for panel builders and switchgear manufacturers
- RoHS compliant, supporting environmental standards
Compatibility
The BTSDS42V125 fuse-link is compatible with fuse holders and switchgear designed for BS88 gG Type A3 fuses. Its offset tag terminals allow easy integration into bolted mounting systems commonly used in industrial electrical panels and distribution boards.
Applications
- Industrial motor protection
- Control panels and switchgear assemblies
- Power distribution systems
- Renewable energy installations
- General industrial electrical protection
Technical Specifications
- Item number: G1019182
- Catalogue No: BTSDS42V125
- Description: British Standard fuse-link IEC BS88 gG Type A3 415VAC 240VDC 125A BTSDS Offset Tag
- EAN/UPC Code: 3605340515770
- Rated voltage AC IEC: 415 V
- Rated voltage DC IEC: 240 V
- Ampere Rating: 125 A
- RoHS Compliant: Yes
- AC or DC: AC/DC
- Speed/Characteristic: gG
- Fuse Size: A3
- Mounting: Bolted
- Clearing I2t At Rated Voltage: 70000 A²s
- Melting I2t: 16000 A²s
- AC Max I.R./Breaking Capacity: I1: 80 kA
- Max. Rated Breaking Capacity DC: 40 kA
- Connection/Terminal Material: Tin-Plated Copper
- Connection/Terminal Type: Offset Tag
- Product Diameter: 21 mm
- Product Width: 22.5 mm
- Product Length: 87 mm
- Sell Pack Quantity: 10 EA
- Sell Pack Weight: 0.59 kg
- Sell Pack Width: 100 mm
- Sell Pack Length: 112 mm
- Sell Pack Height: 53 mm
- Product group: Low Voltage IEC Fuses
- Body/Insulating Material: Ceramic
- Product Weight: 0.059 kg
- Power Dissipation at Rated Current Value: 11.5 W
Frequently Asked Questions
What does the gG rating mean on this fuse?
The gG rating indicates that the fuse provides full-range protection against both overloads and short circuits, suitable for general applications.
Can this fuse be used in DC circuits?
Yes, the BTSDS42V125 is rated for use in both AC (415 V) and DC (240 V) circuits.
What type of mounting does this fuse require?
This fuse uses bolted mounting with offset tag terminals for secure installation.
Is this fuse compliant with environmental regulations?
Yes, the BTSDS42V125 is RoHS compliant, ensuring it meets environmental standards.
Common Search Terms
BTSDS fuse, BS88 fuse-link, gG fuse 125A, 415VAC fuse, 240VDC fuse, Type A3 fuse, offset tag fuse, industrial fuse-link, ceramic fuse, high breaking capacity fuse
| Manufacturer Part Number | G1019182 |
|---|---|
| Packed Quantity | 10 |
| Barcode | 3605340515770 |
| Height | 87mm |
| Width | 22.5mm |
| Depth | 21mm |
| HS Code | 85361090 |
| Country of Manufacture | India |
| Manufacturer | Mersen |
| Alternative Product SKU | BTSDS42V125 |
