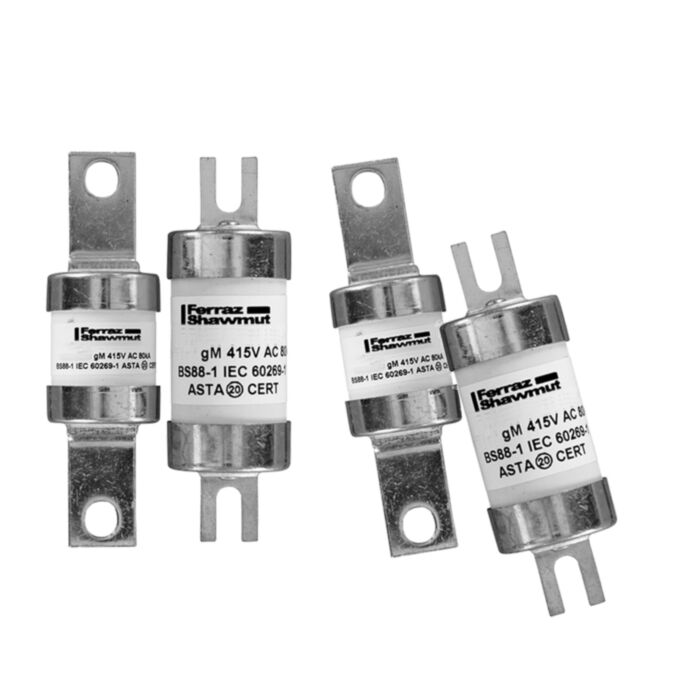

MERSEN FUSE BTSD42V63M80 A4C BTSD42V63M80
MPN: B1019200
Alt. SKU: BTSD42V63M80
Special Price
£14.93
£12.44
Regular Price
£42.65
MERSEN FUSE BTSD42V63M80 A4C BTSD42V63M80 is available to buy in increments of 10
Why Choose the BS88 gM Type A4 415VAC 240VDC 63M80A BTSD Offset Tag Fuse-Link?
This BS88 gM Type A4 fuse-link is engineered for reliable protection of industrial circuits, offering a high breaking capacity at 415VAC and 240VDC. Its gM characteristic ensures full-range protection for motor circuits and general applications, enhancing equipment safety and minimising downtime.
The BTSD offset tag design allows for secure and straightforward installation in panel and switchgear assemblies. Rated at 63M80A, this fuse-link complies fully with IEC and British Standards, delivering robust, long-term performance in demanding electrical environments.
Product Code: BTSD42V63M80
Key Benefits
- High breaking capacity up to 80 kA AC and 40 kA DC for enhanced safety.
- gM characteristic provides full-range protection for motors and general circuits.
- Robust ceramic body ensures durability and reliable performance.
- Offset tag terminals allow secure and easy bolted mounting.
- Compliant with IEC and British Standards for assured quality.
- Low power dissipation (5.1 W) minimises energy loss.
Compatibility
This fuse-link is compatible with industrial low voltage IEC fuse holders designed for A4 size fuses with offset tag terminals. It is suitable for use in motor control centres, switchgear assemblies, and distribution panels requiring gM type protection at 415VAC and 240VDC.
Applications
- Protection of three-phase motor circuits and associated control equipment.
- General industrial electrical circuit protection.
- Switchgear and panel assemblies in manufacturing plants.
- Power distribution systems requiring high breaking capacity fuses.
Technical Specifications
- Item number: B1019200
- Catalogue No: BTSD42V63M80
- Description: British Standard fuse-link IEC BS88 gM Type A4 415VAC 240VDC 63M80A BTSD Offset Tag
- EAN/UPC Code: 3605340515541
- Rated voltage AC IEC: 415 V
- Rated voltage DC IEC: 240 V
- In M Ich: 63M80 A
- RoHS Compliant: Yes
- AC or DC: AC/DC
- Speed/Characteristic: gM
- Fuse Size: A4
- Mounting: Bolted
- Clearing I2t At Rated Voltage: 38250 A²s
- Melting I2t: 8500 A²s
- AC Max I.R./Breaking Capacity: I1: 80 kA
- Max. Rated Breaking Capacity DC: 40 kA
- Connection/Terminal Material: Tin-Plated Copper
- Connection/Terminal Type: Offset Tag
- Product Diameter: 21 mm
- Product Width: 24.5 mm
- Product Length: 110 mm
- Sell Pack Quantity: 10 EA
- Sell Pack Weight: 0.6 kg
- Sell Pack Width: 117 mm
- Sell Pack Length: 218 mm
- Sell Pack Height: 38 mm
- Product group: Low Voltage IEC Fuses
- Body/Insulating Material: Ceramic
- Product Weight: 0.06 kg
- Power Dissipation at Rated Current Value: 5.1 W
Frequently Asked Questions
What does the gM characteristic mean?
The gM characteristic indicates that the fuse provides full-range protection for motor circuits, including overload and short-circuit protection, ensuring comprehensive safety.
Can this fuse-link be used for both AC and DC applications?
Yes, this fuse-link is rated for use in both AC (415 V) and DC (240 V) applications, making it versatile for various industrial circuits.
What is the significance of the offset tag terminal?
The offset tag terminal allows for secure bolted mounting and easy installation in switchgear and panel assemblies, improving connection reliability.
Is this fuse RoHS compliant?
Yes, the fuse-link complies with RoHS standards, ensuring it is free from hazardous substances.
Common Search Terms
BS88 fuse, gM fuse-link, 415V fuse, 240VDC fuse, 63A fuse, IEC fuse-link, offset tag fuse, industrial fuse, motor protection fuse, bolted fuse terminal
| Manufacturer Part Number | B1019200 |
|---|---|
| Packed Quantity | 10 |
| Barcode | 3605340515541 |
| Height | 110mm |
| Width | 24.5mm |
| Depth | 21mm |
| HS Code | 85361050 |
| Country of Manufacture | India |
| Manufacturer | Mersen |
| Alternative Product SKU | BTSD42V63M80 |
